289 * All specifications and photos are subject to change without notice.
PS500-
XP2
200,000
hours
AC 90~264V
(Auto)
ATX 500W
(PFC)
+5V @ 24A
+3.3V @ 24A
+12V @ 34A
+12V1 @ 17A
+12V2 @ 17A
-12V @ 0.8A
+5VSB @ 2.5A
Backplane Options
Models
Slots per Segment
(ISA/PCI/CPU)
Segment
Power Supply Specifications
4U 20-slot Extended Rackmount Chassis
AX61492
Ordering Information
Specifications
Features
Three 5.25" and two 3.5" HDD drive bays
Three 12cm hot-swap ball-bearing fans
Supports 20-slot backplane
Hot-swap redundant or PS/2 power supply
supported
Dimensions
Built-in hot-swap fans
Standard Color Black
Construction Heavy-duty cold-rolled steel
Drive Capacity Exposed 3 x 5.25" HDD drive bay, 2 x 3.5" HDD drive
bay
Cooling 3 x 12cm hot-swap ball-bearing fans (88CFM/each)
with a removable filter
Front Panel Indicators 1 x power on/off; 3 x HDD
Front Panel Controls
1 x power on/off; 4 x system reset; 1 x alarm reset
Front Panel Connectors 2 x USB, 1 x PS/2 6-pin keyboard/mouse
System Board
SBCs
Expansion Interface 20-slot backplane
Speaker 1 x 0.3W speaker
Operating Temperature 0˚C ~ 40˚C (32˚F ~ 104˚F)
Range
Dimensions
482.6mm (19") (W) x 678.5mm (26.8") (D)
x 176.4mm (7") (H)
Weight (net/gross) 2.3 kg (5.07 lb)/24.6 kg (54.24 lb)
ATX6022/20G
ATX6022/20GP18
ATX6022/20Q 7/12/1
1/18/1
1/3/1
Single
Single
Quad
Items
Specifications
Input Output MTBF
PS401-
HRP
100,000
hours
PS301-
HRP
Watt
100,000
hours
AC 110/220V
(Auto)
AC 100~240V
(Auto)
ATX 300W
HRP
ATX 400W
HRP
(PFC)
+5V @ 36A
+12V @ 17A
-5V @ 0.8A
-12V @ 0.8A
+3.3V @ 25A
+5VSB @ 1A
+5V @ 35A
+12V @ 20A
-5V @ 0.8A
-12V @ 1A
+3.3V @ 28A
+5VSB @ 2A
AX61492TB/X300R 4U rackmount extended chassis, 20-slot version,
with ATX 300W redundant power supply
AX61492TB/X400R 4U rackmount extended chassis, 20-slot version,
with ATX 400W redundant power supply
* Specifications and certifications are limited to optional.

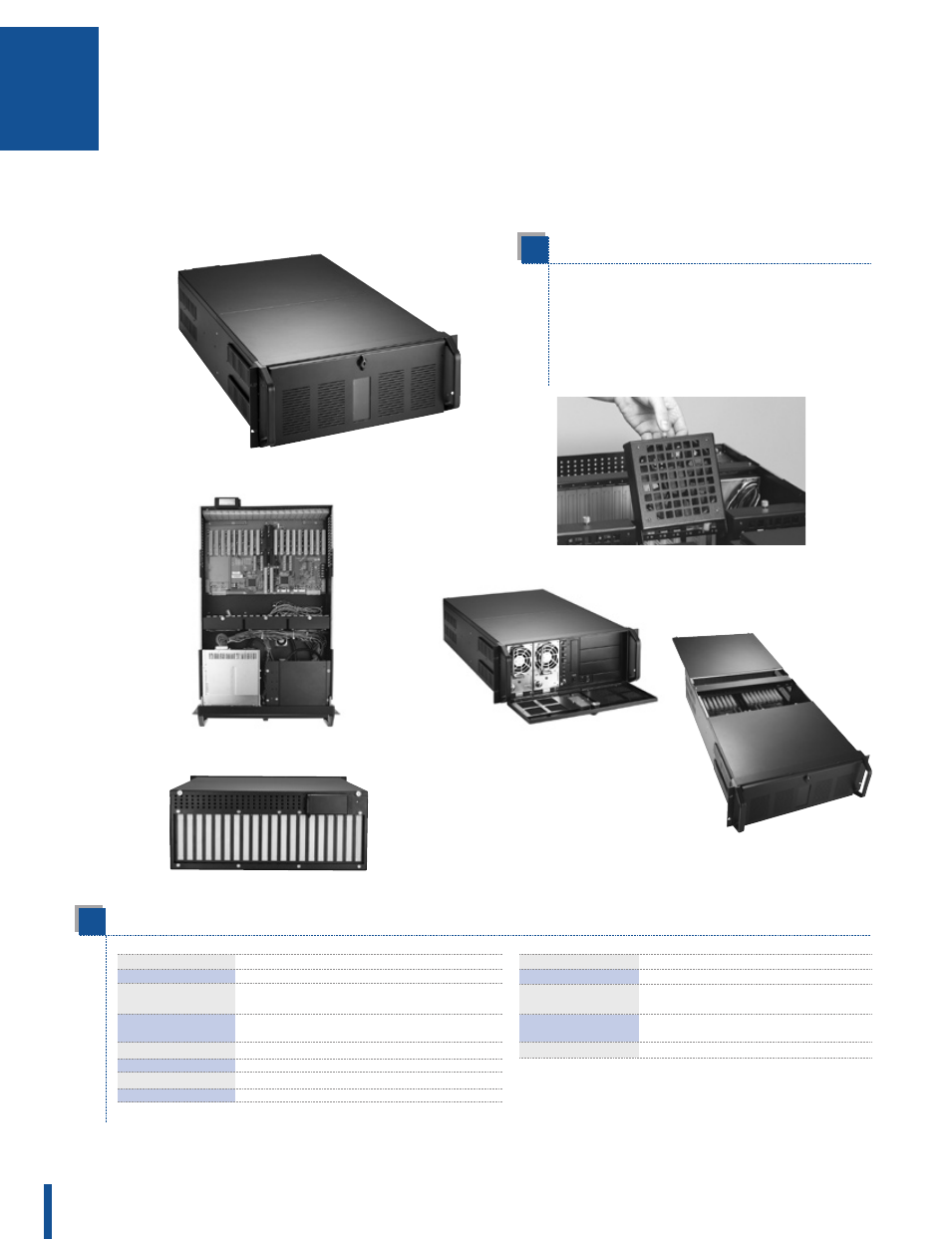

Top view Front view
Rear view
Dual top cover design
for easy maintenance
