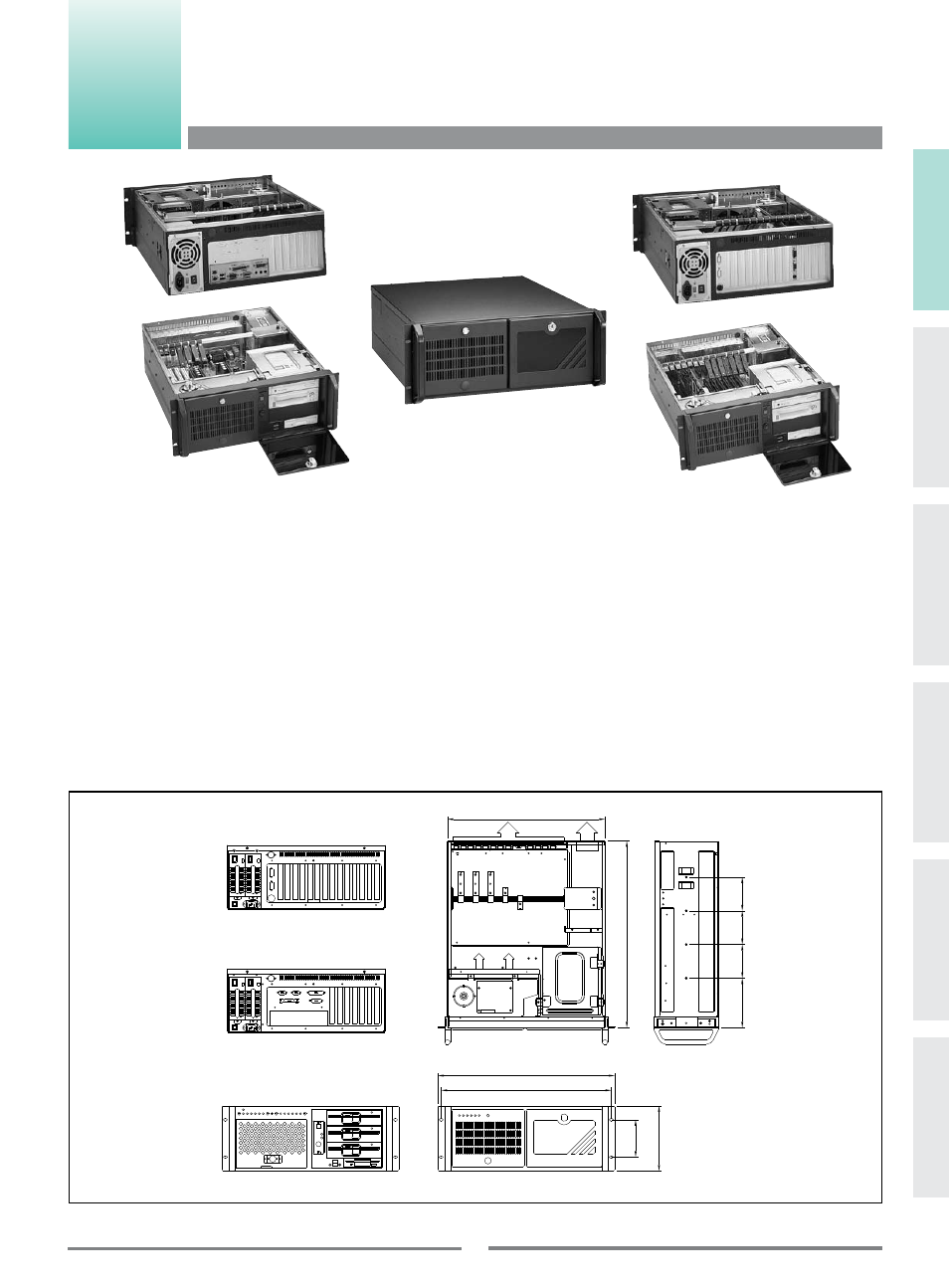

Impulse GH-414SR User Manual
4u rackmount chassis, Dimension specifications, 19" rackmount
19" Rackmount
108
GH-414ATXR/414SR
4U Rackmount Chassis
AIR
FLOW
FAN
482.60
464.60
H.D.D.
POWER
177.00
101.60
FAN
AIR
FLOW
AIR
OUT
POWER
FAN
OUT
AIR
REDUNTANT
MINI
Rear view
Front in-side view
Front out-side view
Top View
Right-side View
POWER
RESET
I
O
O
I
O
I
O
I
Rear view
135.00
92.00
92.00
92.00
510.00
430.00
Dimension
Specifications
•
EIA RS-310C 19" Rackmount Standard
•
Construction:
Heavy Duty Cold Rolled Electroplated Steel
•
Color:
Black (Standard), Beige or Custom
•
System Boards:
Pentium 4,Dual Xeon, Athlon 64, Dual
Opteron
•
Support ATX M/B(Max. to 12"x9.6")(414ATXR)
•
Support 14/15-slot Passive Backplane(414SR)
•
Drive Capacity:
3x5.25" & 1x3.5" & 1x3.5"HDD(Optional)
•
Power Supply(Optional):
PS/2 Size Single up to 700W or
Mini Redundant up to 500W ATX P/S (Rear Installation)
Max. Depth 220mm
•
Cooling:
1x (120mm = 108CFM ea.) Fan (One Optional
Opening for Extra 120mm Fan)
•
Front Door:
Two Doors With Keylock and Thumbscrew
•
Air Filter:
Inside Front Door (Washable)
•
Connector Port (Front):
1x PS/2 for GH-414SR & 2x USB
(Optional) Ports
•
Indicators:
LEDs for Power ON/OFF, HDD Activity
•
Flexible Hold Down Bar Designed
•
Switch:
Power ON/OFF Momentary (Pushbutton),
System Reset
•
Dimensions(WxHxD):
483 x 177 x 510mm(19"x7.0"x20.1")
•
Cuft:
4.9
•
GW:
17.4 kgs / 38.4 lbs
•
Carton Size(cm):
59.1 x 34.0 x 68.8 (23.3"x13.4"x27.1")
•
Humidity:
5% - 95% Non-condensing
