* All specifications and photos are subject to change without notice.

Optional Items

ATX 400W power supply with PFC
ATX 500W power supply with PFC

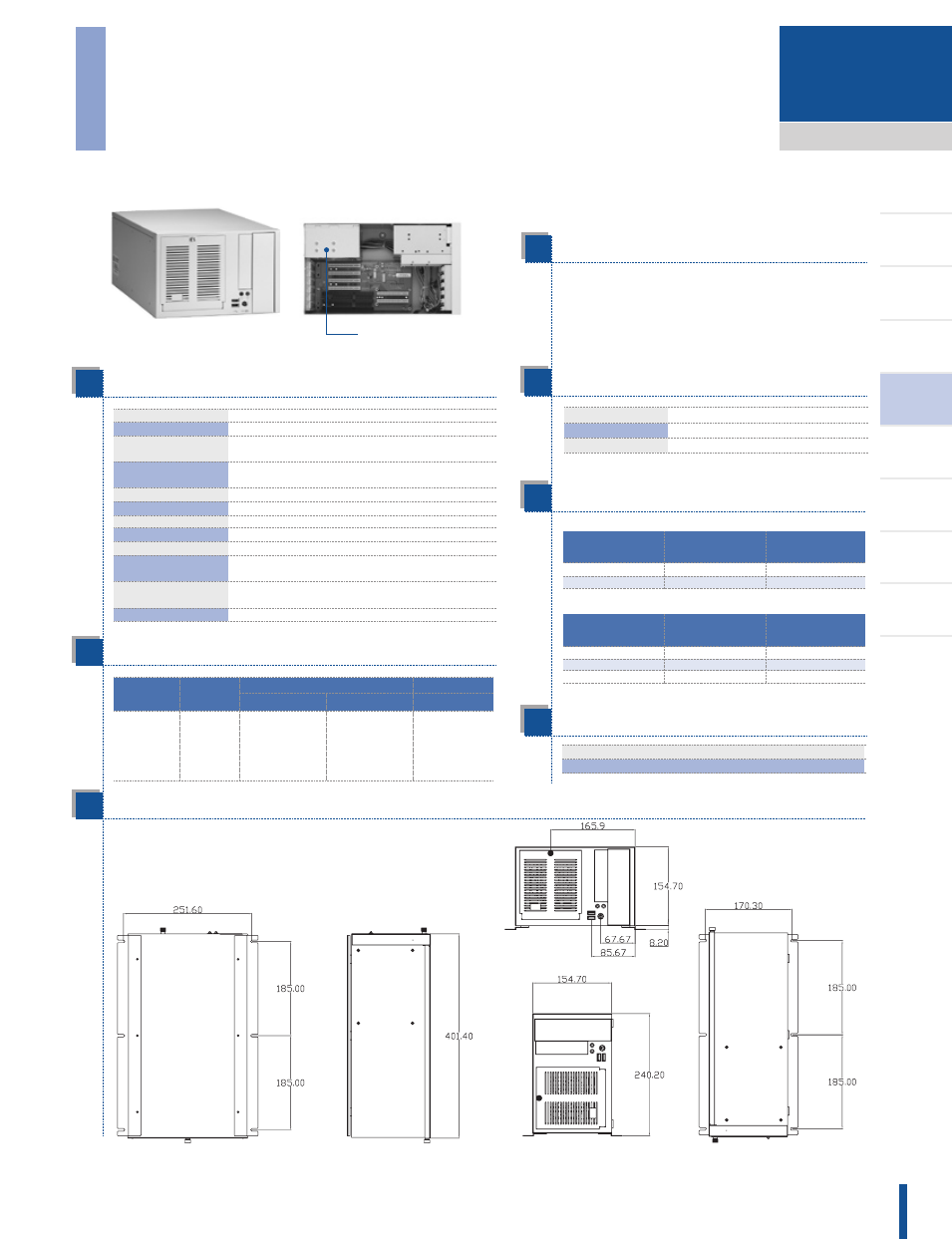

6-slot ShoeBox Chassis

AX60501

Models

Slots per Segment

(ISA/PCI/PCIe/CPU)

Segment

ATX6022/6
ATX6021/5

PICMG 1.0

1/4/1
0/4/1

Single
Single

Models

Slots per Segment

(ISA/PCI/PCIe/CPU)

Segment

FAB105
HAB205
HAB206

PICMG 1.3

0/3/1/1
0/4/0/1
0/3/1/1

Single
Single
Single

System

Features

Desktop or wallmount industrial computer chassis
One 5.25" and two 3.5" HDD drive bays
Equipped with a PS/2 type power supply

Backplane Options

Ordering Information

Standard Color

Beige

Construction

Heavy-duty cold-rolled steel

Drive Capacity

Exposed 1 x 5.25" HDD drive bay and 1 x 3.5" HDD drive

bay; Internal 1 x 3.5" HDD drive bay

Cooling

1 x 9cm ball-bearing fan (51CFM/each) with a

removable filter

Front Panel Indicators 1 x power on/off
Front Panel Controls

1 x power on/off; 1 x system reset

Front Panel Connector 1 x PS/2 6-pin keyboard & mouse, 2 x USB
System Board

SBCs

Expansion Interface

6-slot backplane

Operating Temperature 0˚C ~ 40˚C (32˚F ~ 104˚F)
Range
Dimensions

240.2mm (9.45") (W) x 401.4mm(15.8") (D)

x 154.7mm (6.1") (H)

Weight (net/gross)

9 kg (19.84 lb)/10.3 kg (22.7 lb)

Power Supply Specifications

Dimensions

Items

Specifications

Input

Output

MTBF

PS300-

XP2

Watt

ATX 300W

(PFC)

Slide Switch

(115V

AC

/230V

AC

)

100,000

hours

+5V @ 30/21.5A

+12V @ 15A

-12V @ 0.8A

+3.3V @ 15/28A

5VSB @ 2A

-5V @ 0.3A

Top view

AX60501WB/X300

With ATX 300W power supply (with PFC)

AX60501WB/X400

With ATX 400W power supply (with PFC)

AX60501WB/X500

With ATX 500W power supply (with PFC)

Equipped with a power supply
bracket securing the power
supply better when the chassis
is positioned in 90º orientation

* Specifications and certifications are limited to optional.

8-slot ShoeBox Chassis

AX60551

System

Features

Desktop or wallmount industrial computer chassis
One 5.25" and two 3.5" HDD drive bays
Equipped with a PS/2 type power supply

Backplane Options

Ordering Information

Power Supply Specifications

Dimensions

AX60551WB/X300

With ATX 300W power supply (with PFC)

AX60551WB/X400

With ATX 400W power supply (with PFC)

AX60551WB/X500

With ATX 500W power supply (with PFC)

Optional Items

ATX 400W power supply with PFC
ATX 500W power supply with PFC

Standard Color

Beige

Construction

Heavy-duty cold-rolled steel

Drive Capacity

Exposed 1 x 5.25" HDD drive bay and 1 x 3.5" HDD drive

bay; Internal 1 x 3.5" HDD drive bay

Cooling

1 x 9cm (51CFM/each) ball-bearing fan with a

removable filter

Front Panel Indicators 1 x power on/off; 1 x HDD
Front Panel Controls

1 x power on/off; 1 x system reset

Front Panel Connector 1 x PS/2 6-pin keyboard & mouse, 2 x USB
Pre-punched Panel Rear 1 x 9-pin; 1 x 25-pin
System Board

SBCs

Expansion Interface

8-slot backplane

Operating Temperature 0˚C ~ 40˚C (32˚F ~ 104˚F)
Range
Dimensions

280.2mm (11") (W) x 415.8mm (16.37") (D)

x 197.3mm(7.77") (H)

Weight (net/gross)

10.9 kg (24.03 lb)/11.2 kg (24.67 lb)

Top view

Equipped with a power supply
bracket securing the power supply
better when the chassis is
positioned in 90º orientation

Items

Specifications

Input

Output

MTBF

PS300-

XP2

Watt

ATX 300W

(PFC)

Slide Switch

(115V

AC

/230V

AC

)

100,000

hours

+5V @ 30/21.5A

+12V @ 15A

-12V @ 0.8A

+3.3V @ 15/28A

5VSB @ 2A

-5V @ 0.3A

Models

Slots per Segment

(ISA/PCI/CPU)

Segment

ATX6022/8
ATX6022/8GP7

PICMG 1.0

3/4/1
0/7/1

Single
Single

Models

Slots per Segment

(ISA/PCI/PCIe/CPU)

Segment

FAB208
HAB208

PICMG 1.3

0/6/1/1
0/6/1/1

Single
Single

* Specifications and certifications are limited to optional.
