Single Board Computers
System
Features
LGA775
Intel ® Q45
4 DDR3
RS-232/422/485
12 USB 2.0
HD Audio
4 PCIe x1
iAMT & TPM
OpenGL 2.1
Standard
Quick installation guides, user's manual/utility CD, cable
Cable

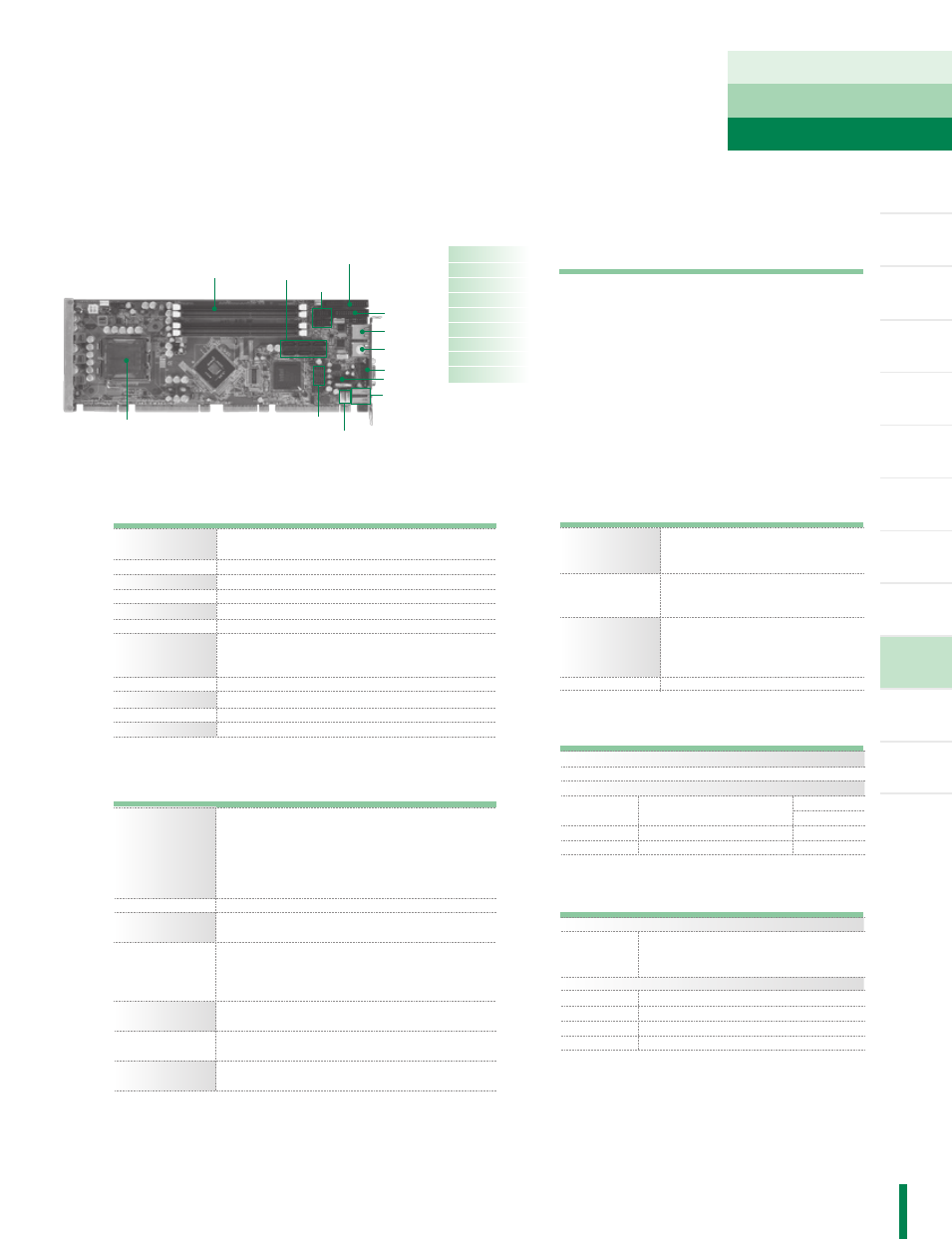

LGA775 Intel ® Core™2 Quad PICMG 1.3 Full-size CPU Card with
Intel ® Q45+ICH10DO Chipset, Dual LANs, iAMT and iTPM
SHB102
I/O
LGA775 for Intel ® Core™2 Quad/Core™2
Duo/Celeron ® processor with 800/1066/
1333 MHz
Intel ® Q45+ICH10DO chipset
4 DDR3-800/1066 DIMM support up to 16GB
With Intel 4500 high performance integrated
graphic controller with DX10 and OpenGL 2.1
RAID 0, 1, 10 and 5
Intel ® iAMT & iTPM supported
Supports x16 PCI Express 2.0
CPU LGA775 socket for Intel ® Core™2 Quad/ Core™2
Duo/Celeron ® processor with 800/1066/1333 MHz
System Memory 4 x 240-pin DDR3-800/1066 DIMM max. up to 16GB
Chipset Intel ® Q45+ICH10DO
BIOS AMI BIOS
SSD N/A
Watchdog Timer 255 levels, 1~255 sec.
Expansion Interface * PCIe x16 via SHB Connector-A & B
* PCIe x4 (or 4 PCIe x1) via SHB Connector-A
* PCI with 4 bus masters via SHB Connector-D
Battery Lithium 3V/196mAH
Size 338 x 126mm
Temperature 0°C ~ +60°C (32°F ~ 140°F), operation
Operation Humidity 10% ~ 95% relative humidity, non-condensing
MIO 1 x FDD
1 x PS/2 keyboard
1 x PS/2 mouse
1 x LPT; with SPP/EPP/ECP supported
1 x RS-232 (COM 1)
1 x RS-232/422/485 (COM2)
SATA 6 x SATA-300 with RAID 0/1/10/5
Hardware Support CPU/System temperature, CPU/System voltage,
Monitoring and CPU/System Fan features
Ethernet * 1 st port as 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM, iAMT with Intel 82567LM
* 2 nd port as 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM with Intel 82574L
Audio HD Codec audio as MIC-in / Line-in / Line-out /
speaker-out with Realtek ALC888 Codec
USB 12 x USB 2.0; 2 ports on the rear I/O,
6 ports with pin-header, 4 ports via SHB Connector-C
SMBus System Management Bus for advanced
monitoring/control interface
Packing List
Display
Ordering Information
Standard
SHB102VGGA LGA775 socket PICMG 1.3 full-size CPU card
(P/N: E38C102100) with VGA, 2 10/100/1000Mbps, iAMT, iTPM,
and RAID
Optional
593836A0030E 4-pin power cable to SATA x 2 L=150mm
5938A808010E 2 x USB port cable L=190mm
59384500100E Audio cable P=2.0 L=450mm
59380000290E PS/2 keyboard & mouse cable with bracket
Chipset Intel ® Q45 GMCH 4500 integrated
graphics engine; support Microsoft
DirectX 10 & OpenGL 2.1
Memory Size Max. up to 256MB frame buffer
dedicated memory & DVMT
up to 352MB
Resolution * VGA up to 2048 x 1536 @ 60 Hz with
32-bit color
* SDVO each ports up to 1920 x 1200 @
60Hz
Output Interface VGA with D-sub 15-pin connector
Part Number
59380502000E
593826A0000E
Description
COM + Print cable w/ bracket
SATA signal cable 500mm
SHB102VGGA
Qty
1
1
DDR3 SATA-300
COM 1/2
Internal
K/B+M/S
USB
LPT
Ethernet 2
Ethernet 1
VGA
Audio
USB
FDD
LGA775
CPU socket
Intel ® Core™ i3/i5/i7
LGA1156
Intel ® Q57
VGA/DisplayPort
2 RS-232/422/485
14 USB 2.0
4 PCIe x1
iAMT & TPM
DisplayPort
System
Features
Standard
Quick installation guide, user's manual/utility CD, cable
Cable
LGA1156 Socket Intel ® Core™ i3/i5/i7/Pentium ® PICMG 1.3 Full-size
CPU Card with Intel ® Q57 Chipset, VGA, Dual LANs and Audio
SHB103
I/O
LGA1156 socket for Intel ® Core™ i3/i5/i7 processor
Intel ® Q57 chipset
2 DDR3 800/1066/1333 DIMM support up to 8GB
memory capacity
Intel ® iAMT & TPM supported
DisplayPort
CPU LGA1156 socket Intel ® Core™ i7/i5/i3/Pentium ® processor
with 1066/1333 MHz MT/s
System Memory 2 x 240-pin DDR3 800/1066/1333 DIMM max. up to 8GB
Chipset Intel ® Q57
BIOS AMI BIOS
SSD N/A
Watchdog Timer 255 levels, 1~255 sec.
Expansion Interface * PCIe x16 via SHB connector-A & B
* PCIe x4 (or 4 x PCIex1) via SHB Connector-A
* PCI with 4 bus masters via SHB Connector-D
Battery Lithium 3V/196mAH
Size 338 x 126mm
Temperature 0°C ~ +60°C (32°F ~ 140°F), operation
Operation Humidity 10% ~ 95% relative humidity, non-condensing
MIO 1 x FDD
1 x PS/2 keyboard
1 x PS/2 mouse
1 x LPT; with SPP/EPP/ECP supported
1 x RS-232/422/485 (COM 1)
1 x RS-232 (COM2)
SATA 6 x SATA-300 with RAID 0/1/10/5
Hardware Support CPU/System temperature, CPU/System voltage,
Monitoring and CPU/System Smart Fan features
Ethernet *1st port 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM, iAMT with Intel 82578DM
*2nd port 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM with Intel 82583V
Audio HD Codec audio as MIC-in/Line-in/Line-out/ Speaker-out
with Realtek ALC662
USB 14 x USB 2.0: 2 ports on the rear I/O; 8 ports
with pin-headers; 4 ports via SHB connector-C
TPM 1.2 Infineon SLB9635 for trusted platform
SMBus System Management Bus for advanced
Monitoring/control interface
Packing List
Display
Ordering Information
Standard
SHB103VGGA LGA1156 Intel ® Core™ i3/i5/i7+Q57
(P/N:E38C103100) PICMG 1.3 full-size CPU card with VGA,
2 10/100/1000Mbps and audio
SHB103VG LGA1156 Intel ® Core™ i3/i5/i7+Q57
(P/N:E38C103101) PICMG 1.3 full-size CPU card with VGA
and 10/100/1000Mbps
Chipset Intel ® Core™ i3/i5/i7 processor integrated
graphics
Memory Size Max. up to 352MB frame buffer dedicated
memory
Resolution VGA up to 2048 x 1536 @ 75 Hz
with 32-bit color
Output Interface VGA with D-Sub 15-pin connector
DisplayPort co-layout with CRT connector
Part Number
59380502000E
593826A0000E
Description
COM + Print cable
w/ bracket
SATA signal cable
500mm
SHB103VGGA
Qty
1
1
SHB103VG
Qty
1
1
