* Discrete graphic card is necessary for display if the chosen CPU
doesn't have integrated graphics support.
Intel
®
Xeon
®
LGA1156
Intel
®
3450
2 G.E.
DisplayPort
2 DDR3
12 USB 2.0
System
Features
Standard
Quick installation guide, user's manual/utility CD, cable
Cable
LGA1156 Intel
®
Xeon
®
PICMG 1.3 Full-size CPU Card with
Intel
®
3450 Chipset, VGA/DisplayPort and ECC Memory
SHB105
I/O
LGA1156 socket for Intel
®
Xeon
®
/ Core™ i5/ i3/
Pentium
®
processors
Intel
®
3450 chipset
2 DDR3 1066/1333 DIMM support up to 8 GB
memory capacity
Intel
®
AMT & TPM supported
DisplayPort (optional)
Supports unbuffered-ECC memory
CPU
LGA1156 socket for Intel
®
Xeon
®
/ Core™ i5/ i3/ Pentium
®
processors
System Memory
2 x 240-pin DDR3 1066/1333 DIMM max. up to 8 GB
Chipset
Intel
®
3450
BIOS
AMI BIOS
SSD
N/A
Watchdog Timer
255 levels, 1 ~ 255 sec.
Expansion Interface PCIe x16 (or 2 x PCIe x8) via SHB connector-A & B
PCIe x4 (or 4 x PCIe x1) via SHB connector-A
PCI with 4 bus masters via SHB connector-D
Battery
Lithium 3V/196mAH
Power Requirements Intel
®
Core™ i5-660 @3.33 GHz, 1GB DDR3
+5V_SBY @ 23mA, +3.3V @ 1.372A, +5V @ 1.548A,
+12V (System) @ 158mA, -12V @ 28mA,
+12V (CPU) @ 1.809A
Size
338 x 126 mm
Board Thickness
1.6 mm
Temperature
0°C ~ +60°C (32°F ~ 140°F), operation
Relative Humidity
10% ~ 95% relative humidity, non-condensing
MIO
1 x FDD
1 x PS/2 keyboard
1 x PS/2 mouse
1 x LPT; with SPP/EPP/ECP supported
1 x RS-232/422/485 (COM 1)
1 x RS-232 (COM 2)
SATA
6 x SATA-300; with RAID 0/1/10/5
Hardware Monitoring Supports CPU/System temperature, CPU/system voltage
and CPU/system Smart Fan features
Ethernet
1
st
port as 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM, iAMT with Intel
®
82578DM
2
nd
port as 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM with Intel
®
82583V
Audio
HD Codec audio as MIC-in/Line-in/Line-out/speaker-out
with Realtek ALC662
USB
12 x USB 2.0 (2 on the rear I/O; 6 ports with pin-headers;
4 ports via SHB connector-C)
SMBus
System Management Bus for advanced
monitoring/control interface
TPM
Supports TPM 1.2
Packing List
Display
Ordering Information
Standard
SHB105VGGA
LGA1156 Intel
®
Xeon
®
/ Core™ i5/ i3/
(P/N: E38C105101) Pentium
®
PICMG 1.3 full-size CPU card with
VGA, 2 10/100/1000Mbps Ethernet and audio
SHB105PGGA
LGA1156 Intel
®
Xeon
®
/ Core™ i5/ i3/
(P/N: E38C105100) Pentium
®
PICMG 1.3 full-size CPU card with
DisplayPort and 2 10/100/1000Mbps Ethernet
Optional
59384500100E
Audio cable w/ bracket, P=2.0 L=450mm
5938A808010E
2 x USB cable with bracket, P=2.54mm,
L=190mm
593836A0030E
4-pin power cable to SATA x 2, L=150mm
59380000290E
PS/2 keyboard and mouse cable with bracket
E9B900C000
LGA1156 cooler 4-pin H: 61.4 mm
50761222000E
LGA1156 2U cooler 3pin H=68.8mm
Chipset
According to CPU
Display Interface
VGA with D-sub 15-pin connector
DisplayPort co-layout with VGA connector
Part Number
59380502000E
593826A0000E
Description
COM + Print cable w/ bracket
SATA signal cable 500mm
Qty
1
1

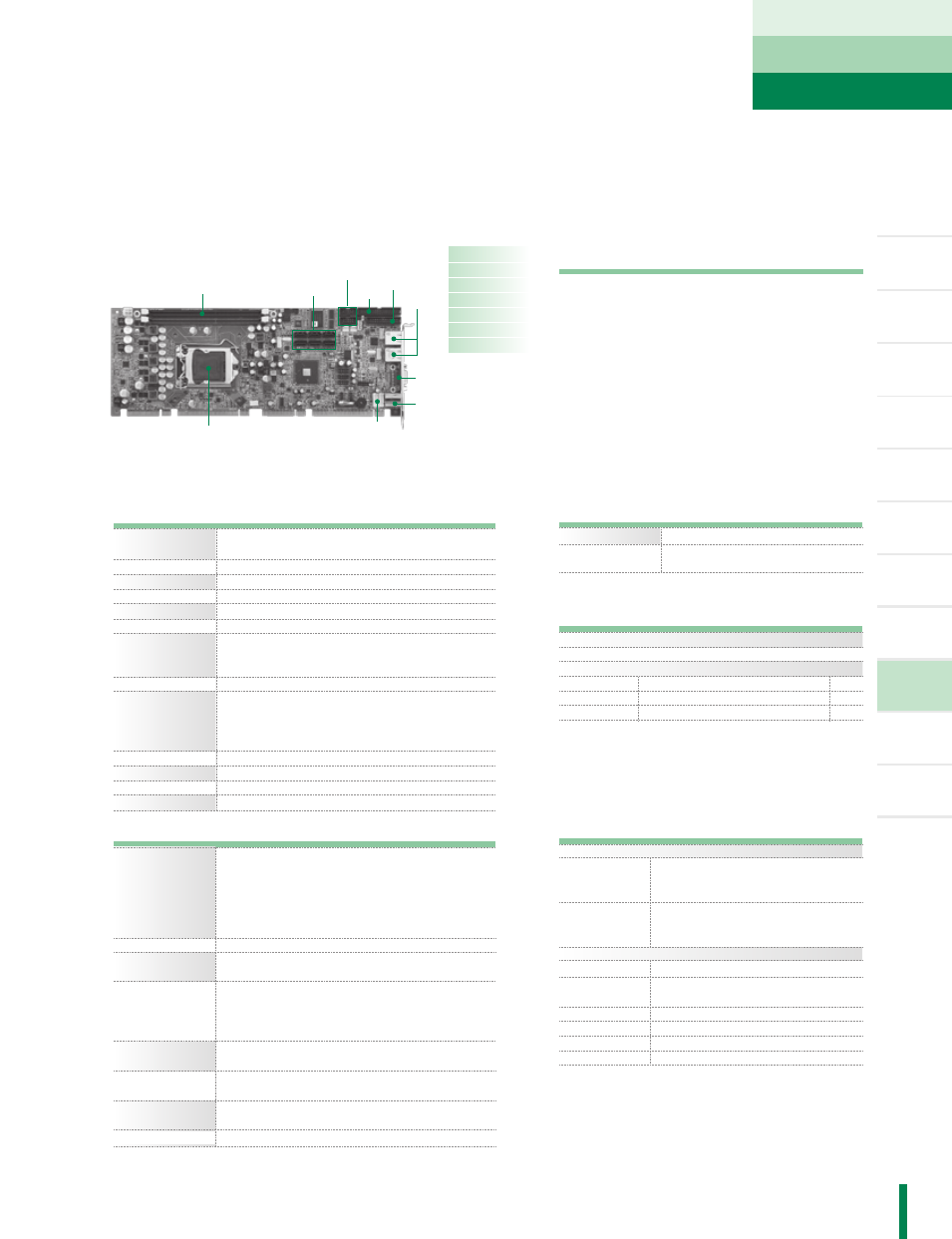

DDR3 DIMM
FDD
LPT
VGA/
DisplayPort
Ethernet
USB
Internal PS/2 K/B+M/S
LGA1156
SATA-300
COM 1/2
