Impulse SHB106 - Manual

175 * All specifications and photos are subject to change without notice.
www.axiomtek.com
Intel ® Core™ i
LGA1155
Intel ® Q67
2 G.E.
DisplayPort
2 DDR3
14 USB 2.0
System
Features
Standard
Quick installation guide, user's manual/utility CD, cable
Cable

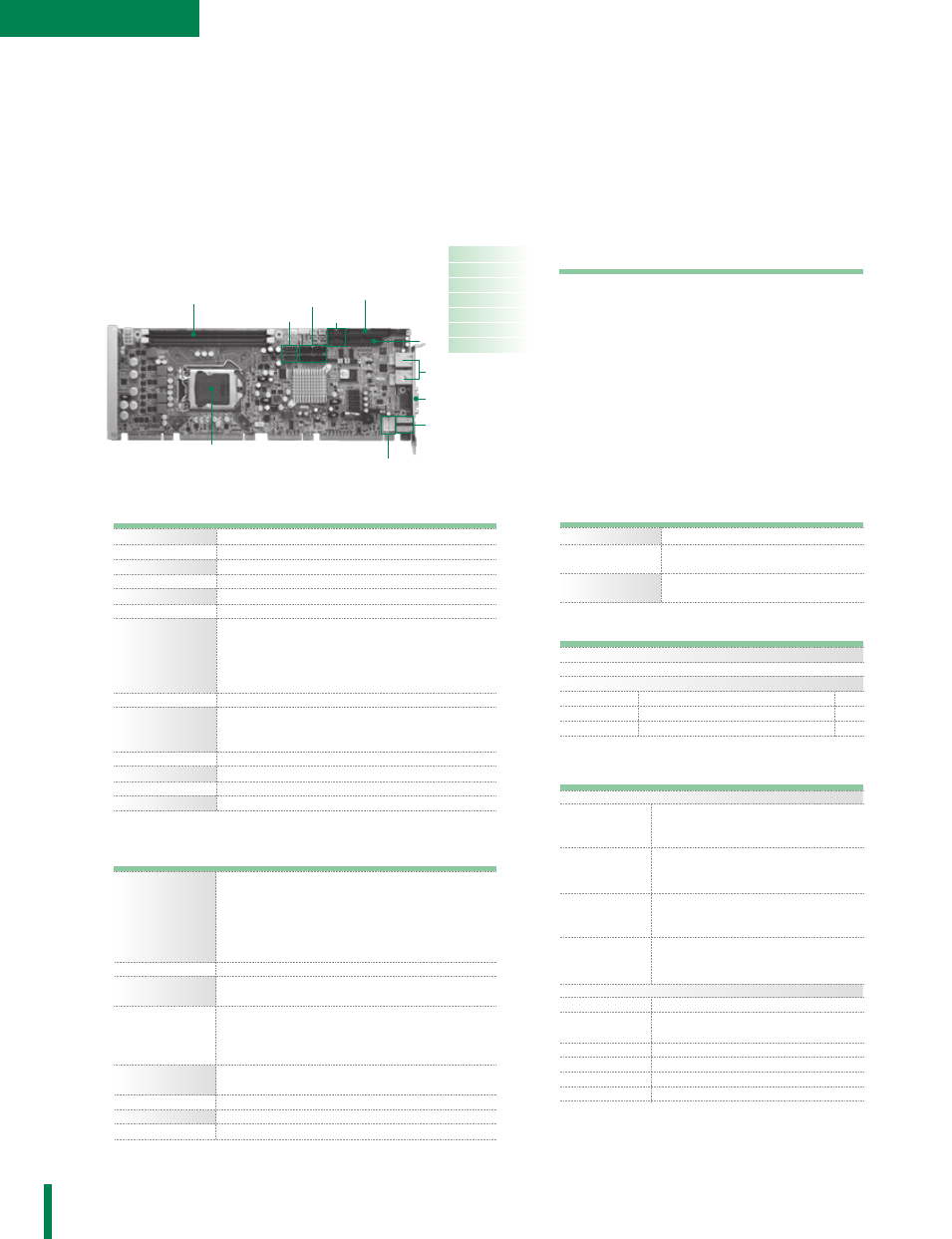

LGA1155 Intel ® Core™ i7/ i5 /i3 PICMG 1.3 Full-size CPU Card with
Intel ® Q67 PCH, VGA, Dual LANs and Audio
SHB106
I/O
LGA1155 socket for Intel ® Core™ i7/ i5/ i3
processor
Intel ® Q67 PCH
2 DDR3 1066/1333 DIMM support up to 16 GB
memory capacity
Intel ® AMT 7.0 & TPM supported
2 SATA-600 supported
PCIe Gen2 at 5GT/s supported
CPU LGA1155 socket for Intel ® Core™ i3/ i5 /i7 processors
System Memory 2 x 240-pin DIMM support DDR3-1066/1333 max. up to 16 GB
Chipset Intel ® Q67 PCH
BIOS AMI
SSD N/A
Watchdog Timer 255 levels, 1~255 sec.
Expansion Interface 1 x PCIe x16 graphics port support for SDVO or PCIe x1
devices
4 x PCIe lanes support 1 PCIe x4 or 4 PCIe x1 I/O devices
4 x 32-bit PCI bus masters
LPC interface
Battery Lithium 3V/220mAH
Power Requirements Intel ® Core™ i5-2400 @ 3.1 GHz, 4GB DDR3
+5V SBY @ 6.2mA, +3.3 @ 0.8A, +5V @ 1.34A,
+12V @ 2.94A, -12V @ 0.08A
Size 338 x 126 mm
BoardThickness 1.6 mm
Temperature 0°C ~ +60°C (32°F ~ 140°F), operation
Relative Humidity 10% ~ 95% relative humidity, non-condensing
MIO 1 x FDD
1 x PS/2 keyboard
1 x PS/2 mouse
1 x LPT; with SPP/EPP/ECP supported
1 x RS-232/422/485 (COM 1)
1 x RS-232 (COM 2)
SATA 2 x SATA-600/s & 4 x SATA-300/s with RAID 0/1/10/5
Hardware Monitoring Support CPU/System temperature, CPU/System voltage,
and CPU/System Smart Fan features
Ethernet 1 st port 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM, iAMT with Intel ® 82579LM
2 nd port 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM with Intel ® 82574L
Audio HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out
with Realtek ALC662
USB 14 x USB 2.0
SMBus System Management Bus for advanced monitoring/control
TPM Infineon SLB9635 for trusted platform
Packing List
Display
Ordering Information
Standard
SHB106VGGA LGA1155 PICMG 1.3 full-size CPU card with
(P/N: E38C106100) VGA, 2 10/100/1000Mbps Ethernet, audio
and BIOS x4
SHB106PGGA LGA1155 PICMG 1.3 Full-size CPU card with
(P/N: E38C106101) DisplayPort, 2 10/100/1000Mbps Ethernet,
audio and BIOS x4
SHB106VGGA LGA1155 PICMG 1.3 Full-size CPU card with
(P/N: E38C106102) VGA, 2 10/100/1000Mbps Ethernet, audio
and BIOS x1
SHB106PGGA LGA1155 PICMG 1.3 Full-size CPU card with
(P/N: E38C106103) DisplayPort, 2 10/100/1000Mbps Ethernet,
audio and BIOS x1
Optional
59384500100E Audio cable w/ bracket, P=2.0 L=450mm
5938A808010E 2 x USB cable with bracket, P=2.54mm,
L=190mm
593836A0030E 4-pin power cable to SATA x 2, L=150mm
59380000290E PS/2 keyboard and mouse cable with bracket
E9B900C000 LGA1156 cooler 4-pin H: 61.4 mm
50761222000E LGA1156 2U cooler 3pin H=68.8mm
Chipset Intel ® HD graphics
Memory Size Max. up to 352MB frame buffer dedicated
memory
Display Interface 1x VGA
1x DisplayPort (optional)
Part Number
59380502000E
593826A0000E
Description
COM + Print cable w/ bracket
SATA signal cable 500mm
Qty
1
1
* Discrete graphic card is necessary for display if the chosen CPU
doesn't have integrated graphics support.
DDR3 DIMM
LGA1155
SATA-600
Internal
K/B+M/S
SATA-300
FDD
LPT
Ethernet
VGA/DisplayPort
USB
COM 1/2
* Discrete graphic card is necessary for display if the chosen CPU
doesn't have integrated graphics support.
Intel ® Xeon ®
LGA1156
Intel ® 3450
2 G.E.
DisplayPort
2 DDR3
12 USB 2.0
System
Features
Standard
Quick installation guide, user's manual/utility CD, cable
Cable
LGA1156 Intel ® Xeon ® PICMG 1.3 Full-size CPU Card with
Intel ® 3450 Chipset, VGA/DisplayPort and ECC Memory
SHB105
I/O
LGA1156 socket for Intel ® Xeon ® / Core™ i5/ i3/
Pentium ® processors
Intel ® 3450 chipset
2 DDR3 1066/1333 DIMM support up to 8 GB
memory capacity
Intel ® AMT & TPM supported
DisplayPort (optional)
Supports unbuffered-ECC memory
CPU LGA1156 socket for Intel ® Xeon ® / Core™ i5/ i3/ Pentium ®
processors
System Memory 2 x 240-pin DDR3 1066/1333 DIMM max. up to 8 GB
Chipset Intel ® 3450
BIOS AMI BIOS
SSD N/A
Watchdog Timer 255 levels, 1 ~ 255 sec.
Expansion Interface PCIe x16 (or 2 x PCIe x8) via SHB connector-A & B
PCIe x4 (or 4 x PCIe x1) via SHB connector-A
PCI with 4 bus masters via SHB connector-D
Battery Lithium 3V/196mAH
Power Requirements Intel ® Core™ i5-660 @3.33 GHz, 1GB DDR3
+5V_SBY @ 23mA, +3.3V @ 1.372A, +5V @ 1.548A,
+12V (System) @ 158mA, -12V @ 28mA,
+12V (CPU) @ 1.809A
Size 338 x 126 mm
Board Thickness 1.6 mm
Temperature 0°C ~ +60°C (32°F ~ 140°F), operation
Relative Humidity 10% ~ 95% relative humidity, non-condensing
MIO 1 x FDD
1 x PS/2 keyboard
1 x PS/2 mouse
1 x LPT; with SPP/EPP/ECP supported
1 x RS-232/422/485 (COM 1)
1 x RS-232 (COM 2)
SATA 6 x SATA-300; with RAID 0/1/10/5
Hardware Monitoring Supports CPU/System temperature, CPU/system voltage
and CPU/system Smart Fan features
Ethernet 1 st port as 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM, iAMT with Intel ® 82578DM
2 nd port as 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM with Intel ® 82583V
Audio HD Codec audio as MIC-in/Line-in/Line-out/speaker-out
with Realtek ALC662
USB 12 x USB 2.0 (2 on the rear I/O; 6 ports with pin-headers;
4 ports via SHB connector-C)
SMBus System Management Bus for advanced
monitoring/control interface
TPM Supports TPM 1.2
Packing List
Display
Ordering Information
Standard
SHB105VGGA LGA1156 Intel ® Xeon ® / Core™ i5/ i3/
(P/N: E38C105101) Pentium ® PICMG 1.3 full-size CPU card with
VGA, 2 10/100/1000Mbps Ethernet and audio
SHB105PGGA LGA1156 Intel ® Xeon ® / Core™ i5/ i3/
(P/N: E38C105100) Pentium ® PICMG 1.3 full-size CPU card with
DisplayPort and 2 10/100/1000Mbps Ethernet
Optional
59384500100E Audio cable w/ bracket, P=2.0 L=450mm
5938A808010E 2 x USB cable with bracket, P=2.54mm,
L=190mm
593836A0030E 4-pin power cable to SATA x 2, L=150mm
59380000290E PS/2 keyboard and mouse cable with bracket
E9B900C000 LGA1156 cooler 4-pin H: 61.4 mm
50761222000E LGA1156 2U cooler 3pin H=68.8mm
Chipset According to CPU
Display Interface VGA with D-sub 15-pin connector
DisplayPort co-layout with VGA connector
Part Number
59380502000E
593826A0000E
Description
COM + Print cable w/ bracket
SATA signal cable 500mm
Qty
1
1
