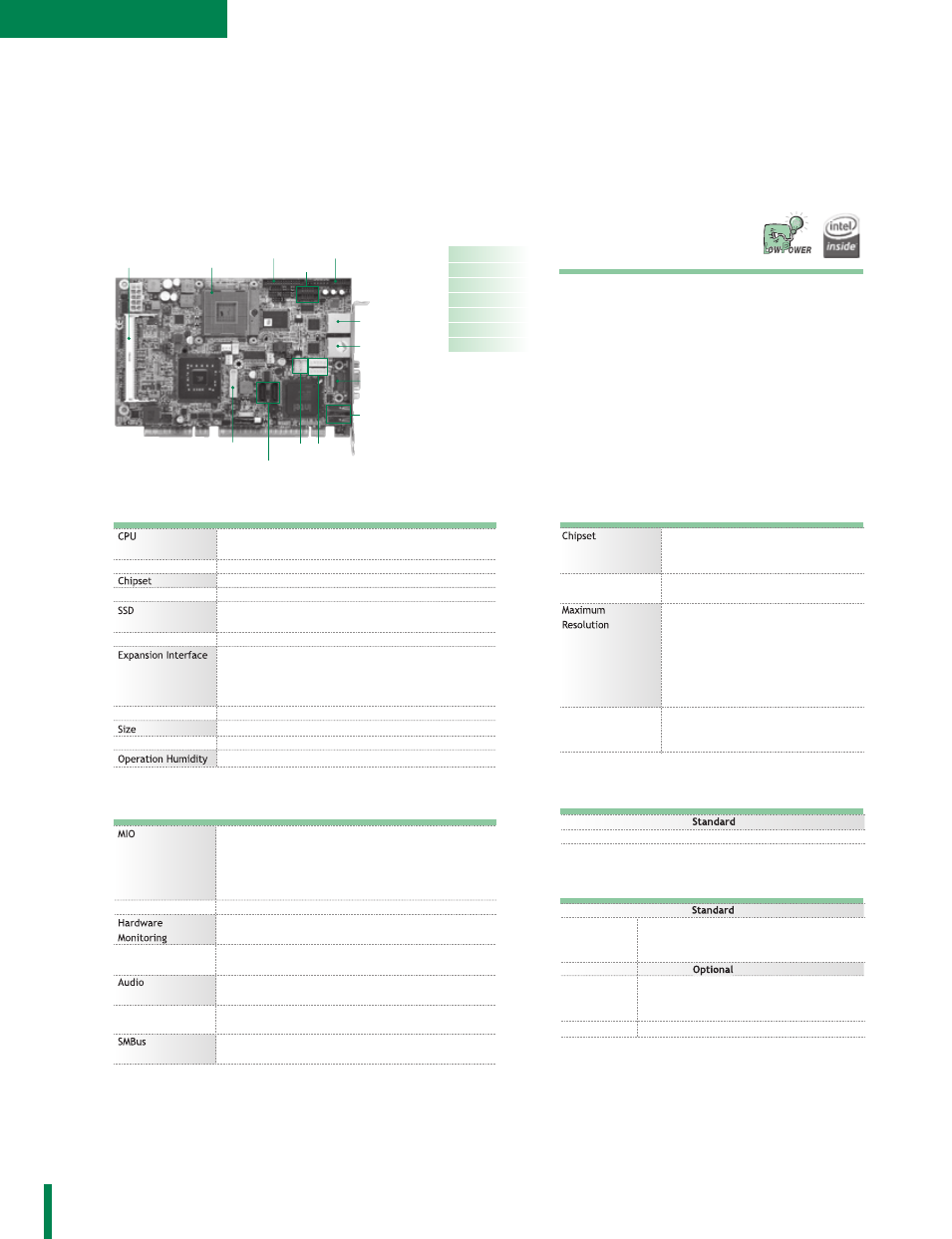

Impulse SHB211 User Manual

Shb211, Socket p intel, Core™2 duo picmg 1.3 half-size cpu card with intel

177

* All specifications and photos are subject to change without notice.

System

Socket P

Intel

GM45

LVDS

VGA/DisplayPort

2 DDR3

SATA-300

6 USB 2.0

Features

Display

Intel

GM45 GMCH 4500 integrated

graphics engine; support Microsoft

DirectX 10, Blu-ray 40Mb/s

Memory Size

Max. up to 256MB frame buffer sharing

system memory

* VGA up to 2048 x 1536 @ 75 Hz with

32-bit color

* LVDS up to 1600 x 1200

* SDVO single-channel mode each ports

up to 1600 x 1200 @ 60 Hz or dual-channel

mode up to 2048 x 1536 @ 75Hz or

dCRT/HDTV up to 1920 x 1080 @ 85 Hz

Output Interface

* VGA with D-sub 15-pin connector

* LVDS with 40-pin JST connector

* DisplayPort edge connector

Quick installation guide, user's manual/utility CD, cable

Packing List

Ordering Information

SHB211VGGA

Socket P PICMG 1.3 half-size CPU card with

VGA/LVDS LCD, 2 10/100/1000Mbps

and audio

SHB211PGGA

Socket P PICMG 1.3 half-size CPU card with

DisplayPort/LVDS LCD, 2 10/100/1000Mbps

and audio

5078B850200E

Heatsink with fan

Socket P Intel

Core™2 Duo PICMG 1.3 Half-size CPU Card with Intel

GM45+ICH9M/

ICH9M-E Chipset, DisplayPort/VGA/LVDS, Dual LANs and Audio

SHB211

I/O

Socket P for Intel

Core™2 Duo/Celeron

processor with 800/1066 MHz

Intel

GM45+ICH9M chipset (optional ICH9M-E)

2 DDR3 SODIMM support up to 8 GB

With Intel Gen 5 high performance integrated

graphics controller for DisplayPort/VGA and LVDS

RAID 0, 1, 5, 10 (optional with ICH9M-E)

Socket P (478-pin) for Intel

Core

™2 Duo/Celeron

™

processor with 667/800/1066 MHz

System Memory

2 x 204-pin DDR3-800/1066 SODIMM max. up to 8 GB

Intel

GM45+ICH9M/ICH9M-E

BIOS

AMI with SmartView and Customer CMOS Backup

1 x CompactFlash™ type-II socket via jMicron JM20330

™

SATA-to-PATA controller

Watchdog Timer

255 levels, 1~255 sec.

* PCIe x16 for discrete graphic card or ADD2+ card

or PCIe x1 devices

* PCIe x4 for one PCIe x4 or four PCIe x1 I/O Devices

* LPC interface

Battery

Lithium 3V/196mAH

185 x 126mm

Temperature

0°C ~ +60°C (32

(

°F ~ 140°F), operation

), p

10% ~ 95% relative humidity, non-condensing

1 x FDD/LPT

1 x PS/2 keyboard

1 x PS/2 mouse

1 x RS-232 (COM 2)

1 x RS-232/422/485 (COM 1)

SATA

2 x SATA-300

Supports CPU/System temperature, CPU/System voltage,

and CPU/System Smart Fan features

Ethernet

2 ports as 10/100/1000Mbps support Wake-on-LAN,

PXE Boot ROM with Realtek RTL8111B

HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out

with Realtek ALC662

USB

6 x USB 2.0; 2 ports on the rear I/O, 4 ports via wafer

connector

System Management Bus for advanced

monitoring/control interface

COM 1/2

DDR3

SODIMM

Socket P

LPT

Audio

Ethernet 2

Ethernet 1

VGA

(or DisplayPort)
USB

Internal

K/B+M/S

USB

SATA-300

LVDS
