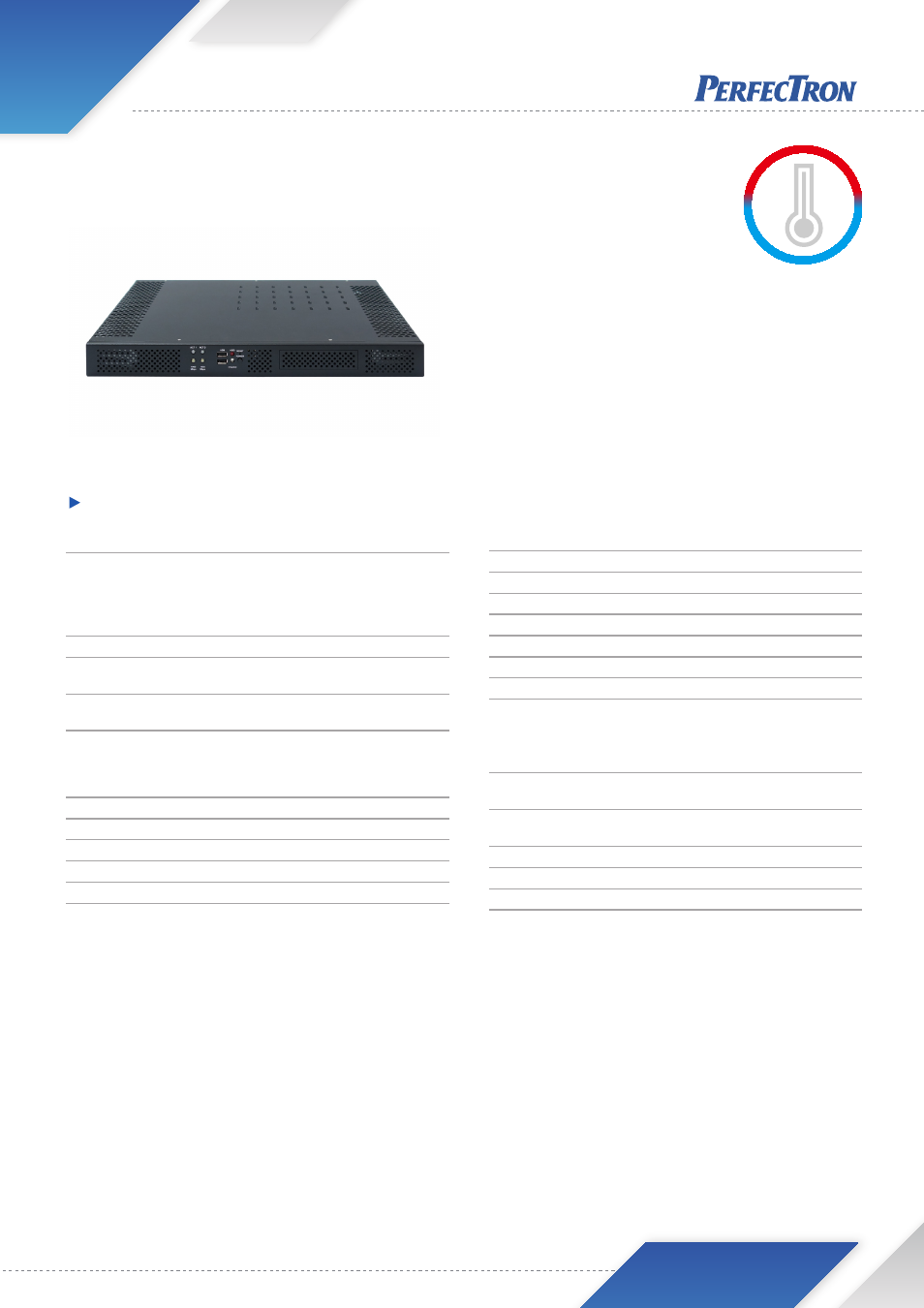

ROC235A
19" 1U Rack-mount Intel® QM77 Fanless Rugged System with Intel® Core™ i7/i5/i3
Processors, 9V to 24V DC-in, Wide Temp. -20 to 70°C
• Supports Intel® 22nm Ivy Bridge Processor
i7-3610QE/i5-3610ME/i3-3120ME
• 2 x DDR3 SO-DIMM up to 16 GB
• Supports 2 x 2.5" SATA HDD/SSD
• Multi-display: 1 x DVI-D, HDMI, VGA
• Dual GbE LAN ports
• 4 x USB 3.0 / 2 x USB 2.0
• 9V ~ 24V DC-in
Main Features
Specifications
System
CPU Intel® 22nm Ivy Bridge Processor (Mobile) socket
(rPGA988)
Core™ i7-3610QE (4C x 3.3 GHZ), 6M L2 cache (45W)
Core™ i5-3610ME (2C x 2.7 GHZ), 3M L2 cache (35W)
Core™ i3-3120ME (2C x 2.4 GHZ), 3M L2 cache (35W)
Chipset Intel® QM77
Memory 2 x 204-pin SO-DIMM DDR3 1333/1600 MHz up to 16
GB
Expansion Slot 2 x PCI
1 x Mini PCIe
Storage Device 2 x 2.5" SATA HDD/SSD
Front I/O
Power Button Yes
Power LED Yes
HDD LED Yes
USB 2 x USB 2.0
Reset Yes
Mechanical & Environment
Power
Requirement 9V to 24V DC-in
Dimension
(W x H x D) 440 x 44 x 380 mm
(17.32" x 1.73" x 14.96")
Operating Temp. -20 to 70°C (ambient with air flow)
Storage Temp. -20 to 80°C
Relative Humidity 10% to 90%, non-condensing
Certifications
CE, FCC
Rear I/O
VGA 1
DVI-D 1
HDMI 1
Ethernet 2 x RJ45
Audio Mic-in, Line-out
COM 1 x RS232/422/485
USB 4 x USB 3.0
DC-in 1 ( Terminal Block)
-20°C~+70°C
