AEC-6977
Ordering Information
Optional Accessories
• TBD
Part Number CPU RAM LAN
USB
3.0
USB
2.0
RS-
232
RS-232+
Isolation RS-232/422/485
+ isolation
Isolation DIO Storage Display Expansion Mounting Power Temp.
AEC-6977-A1-1010 i7-3612QE – 2.1GHz 4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x1 HDMI x 1, DVI x 1, VGA x 1 mini-card x 2, PCIe x 2 Wallmount 9-30V -20°C ~ 50°C (w/o air)
AEC-6977-A2-1010 i7-3612QE – 2.1GHz 4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x1 HDMI x 1, DVI x 1, VGA x 1 mini-card x 2, PCIe x 2 Wallmount 9-30V -20°C ~ 50°C (w/o air)
AEC-6977-A3-1010 i7-3612QE – 2.1GHz 4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x1 HDMI x 1, DVI x 1, VGA x 1
mini-card x 2, PCI x 1 &
PCIe x 1
Wallmount 9-30V -20°C ~ 50°C (w/o air)
AEC-6977-A4-1010 i3-3217UE – 1.6GHz 4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x 1 HDMI x 1, DVI x 1, VGA x 1 mini-card x 2, PCIe x 2 Wallmount 9-30V -20~65 C ( w/o air)
AEC-6977-A5-1010 i3-3217UE – 1.6GHz 4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x 1 HDMI x 1, DVI x 1, VGA x 1 mini-card x 2, PCIe x 2 Wallmount 9-30V -20~65 C ( w/o air)
AEC-6977-A6-1010 i3-3217UE – 1.6GHz 4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x 1 HDMI x 1, DVI x 1, VGA x 1
mini-card x 2, PCI x 1 &
PCIe x 1
Wallmount 9-30V -20~65 C ( w/o air)
AEC-6977-A7-1010
Celeron® 1020E –
2.2GHz
4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x 1 HDMI x 1, DVI x 1, VGA x 1 mini-card x 2, PCIe x 2 Wallmount 9-30V -20~50 C ( w/o air)
AEC-6977-A8-1010
Celeron® 1020E –
2.2GHz
4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit X 1, HDD kit x 1 HDMI x 1, DVI x 1, VGA x 1 mini-card x 2, PCI x 2 Wallmount 9-30V -20~50 C ( w/o air)
AEC-6977-A9-1010
Celeron® 1020E –
2.2GHz
4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x 1 HDMI x 1, DVI x 1, VGA x 1
mini-card x 2, PCI x 1 &
PCIe x 1
Wallmount 9-30V -20~50 C ( w/o air)
AEC-6977-A10-1010 i7-3517UE 4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x 1 HDMI x 1, DVI x 1, VGA x 1 mini-card x 2, PCIe x 2 Wallmount 9-30V -20~65C ( w/o air)
AEC-6977-A11-1010 i7-3517UE 4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x 1 HDMI x 1, DVI x 1, VGA x 1 mini-card x 2, PCI x 2 Wallmount 9-30V -20~65C ( w/o air)
AEC-6977-A12-1010 i7-3517UE 4GB 2 4 2 4 1 1 DI x 4 & DO x 4 CF kit x 1, HDD kit x 1 HDMI x 1, DVI x 1, VGA x 1
mini-card x 2, PCI x 1 &
PCIe x 1
Wallmount 9-30V -20~65C ( w/o air)
Packing List
• Phoenix Power Connector x 1
• Wallmount Bracket x 2
• Product DVD
• AEC-6977
Reset
SYS
HDD
IDO
IDI
1
1
+5V
GND POWER
COM1
COM2 USB
PS2
USB USB Audio
FG -V +V
DC IN
COM6
LAN2 LAN1 COM5
DVI HDMI
VGA Grounding COM3 COM4
CFast

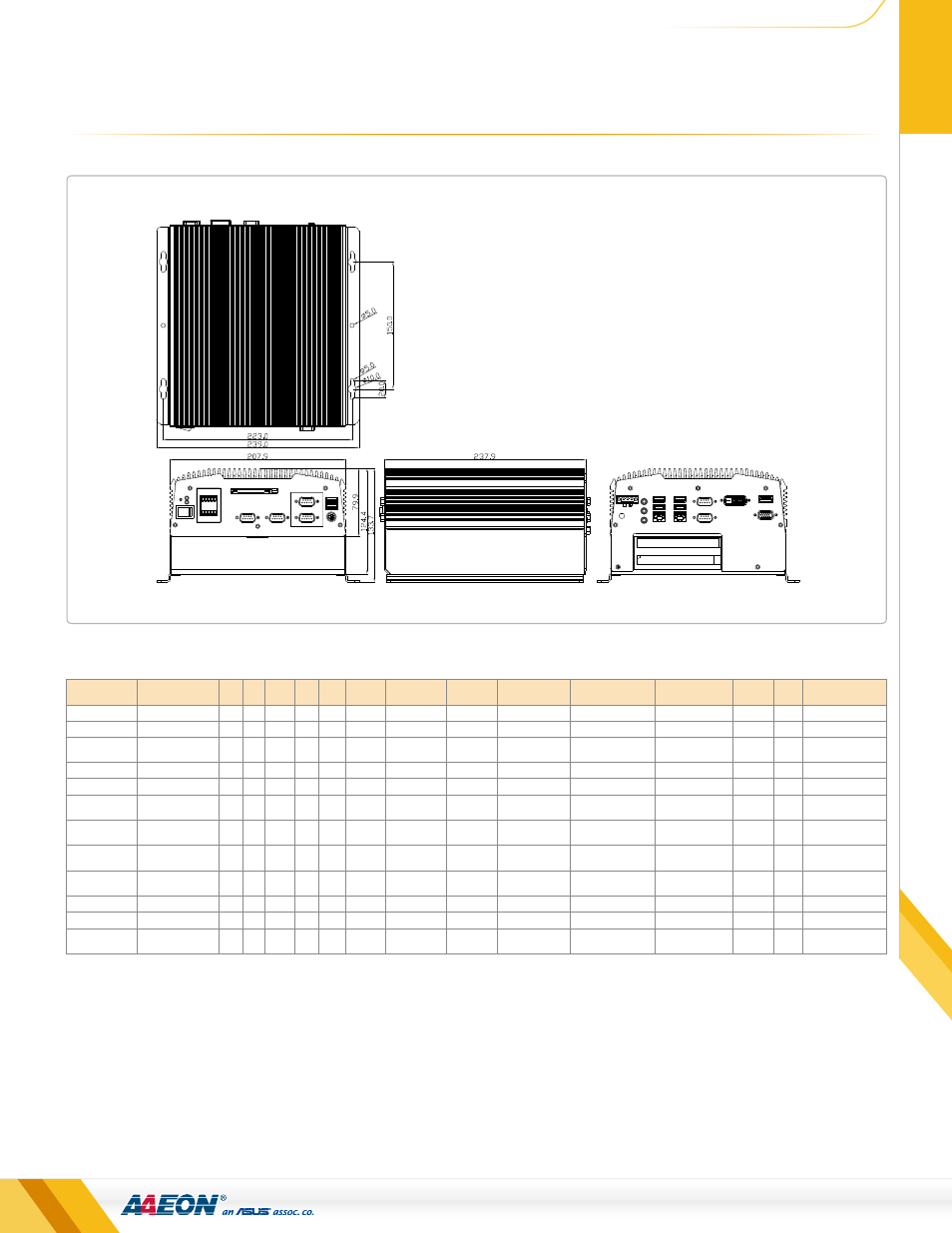

Dimension
Unit: mm
