11-26

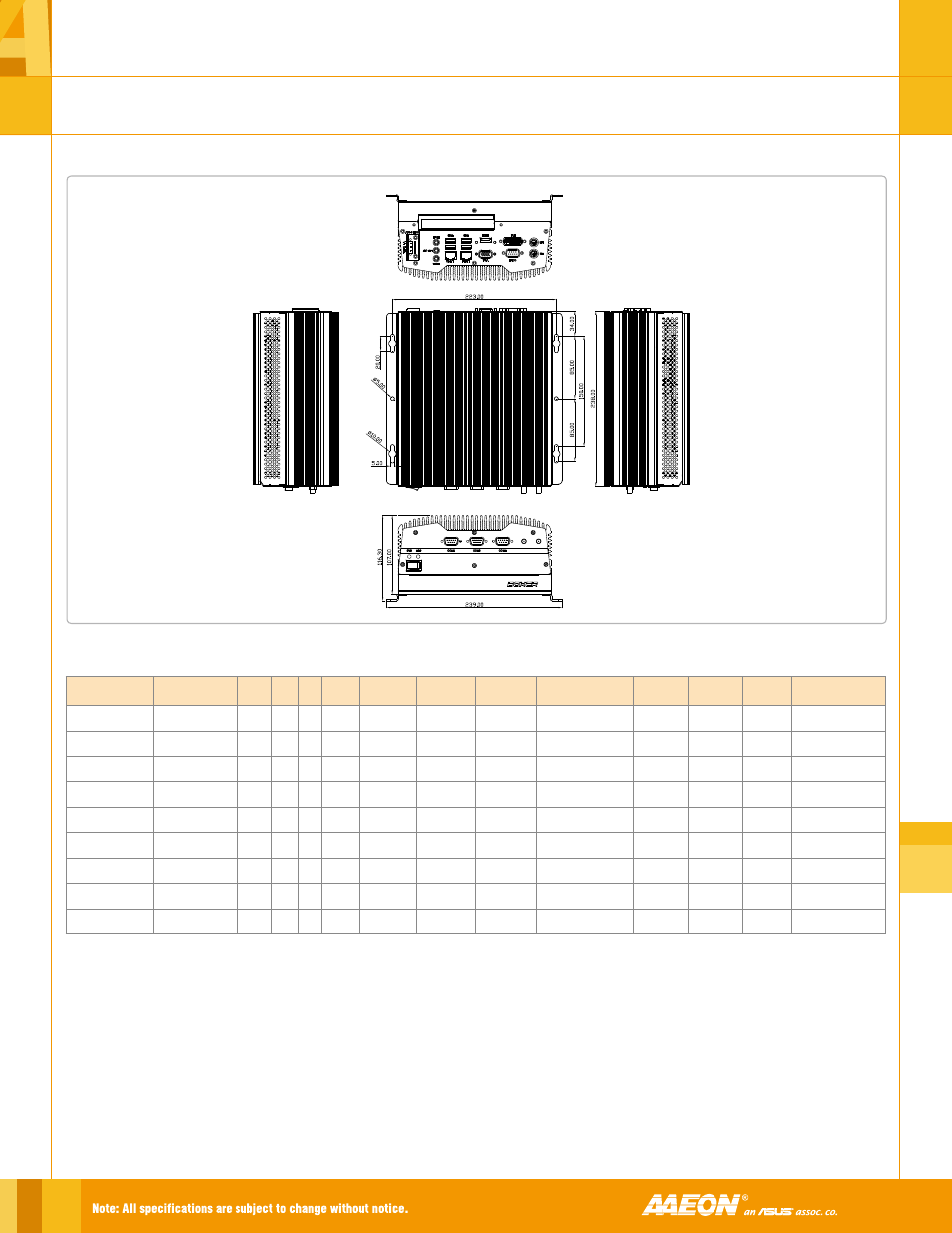

Dimension
Unit: mm
Optional Accessories
AEC-6876
1757908403 •
Power Adapter (84W), Output: DC 12V for AEC-
6876-A1/A2
1757912001 •
Power Adapter (120W), Output: DC 19V-for AEC-
6876-A1M/A2M
1702031830 •
Power Cord (US Type)
1702031831 •
Power Cord (European Type)
1702031810 •
Power Cord (Japanese Type)
9741687600 •
Extend 2nd 2.5” SATA HDD Ass’ Kit
9741687601 •
Mini Blower Kit for AEC-6876-Bxx/AEC-6877-Axx/
AEC-6877-Bxx Factory Install
AEC-6876
Part Number CPU RAM LAN USB RS-232
RS-
232/422/485
Storage
Accessory
Cables
Display Expansion Mounting Power Temp.
TF-AEC-6876-A1-1010 Intel® B810 -1.6 GHz 2GB 2 4 3 1
CFast™ kit x 1
HDD kit x 1
— HDMI x 1, DVI-D x 1, VGA x 1
PCIe x 1
Mini Card x 1
Wallmount DC 12V 0°C ~ 50°C (w/o air)
TF-AEC-6876-A1M-1010 Intel® B810 -1.6 GHz 2GB 2 4 3 1
CFast™ kit x 1
HDD kit x 1
— HDMI x 1, DVI-D x 1, VGA x 1
PCIe x 1
Mini Card x 1
Wallmount DC 9-30V 0°C ~ 50°C (w/o air)
TF-AEC-6876-A2-1010
Intel® Core™ i5-2510E -
2.5 GHz
2GB 2 4 3 1
CFast™ kit x 1
HDD kit x 1
— HDMI x 1, DVI-D x 1, VGA x 1
PCIe x 1
Mini Card x 1
Wallmount DC 12V 0°C ~ 50°C (w/o air)
TF-AEC-6876-A2M-1010
Intel® Core™ i5-2510E -
2.5 GHz
2GB 2 4 3 1
CFast™ kit x 1
HDD kit x 1
— HDMI x 1, DVI-D x 1, VGA x 1
PCIe x 1
Mini Card x 1
Wallmount DC 9-30V 0°C ~ 50°C (w/o air)
TF-AEC-6876-A3M-1010
Intel® Core™ i7-2710QE
- 2.1GHz
4GB 2 4 3 1
CFast™ kit x 1
HDD kit x 1
— HDMI x 1, DVI-D x 1, VGA x 1
PCIe x 1
Mini Card x 1
Wallmount DC 9-30V 0°C ~ 50°C (w/o air)
TF-AEC-6876-A4M-1010
Intel® Core™ i3-2330E
- 2.2GHz
4GB 2 4 3 1
CFast™ kit x 1
HDD kit x 1
— HDMI x 1, DVI-D x 1, VGA x 1
PCIe x 1
Mini Card x 1
Wallmount DC 9-30V 0°C ~ 50°C (w/o air)
TF-AEC-6876-B1M-1010 Intel® B810 -1.6 GHz 2GB 2 4 3 1
CFast™ kit x 1
HDD kit x 1
— HDMI x 1, DVI-D x 1, VGA x 1
PCI x 2
Mini Card x 1
Wallmount DC 9-30V 0°C ~ 50°C (w/o air)
TF-AEC-6876-B2M-1010
Intel® Core™ i5-2510E -
2.5 GHz
2GB 2 4 3 1
CFast™ kit x 1
HDD kit x 1
— HDMI x 1, DVI-D x 1, VGA x 1
PCI x 2
Mini Card x 1
Wallmount DC 9-30V 0°C ~ 50°C (w/o air)
TF-AEC-6876-B3M-1010
Intel® Core™ i7-2710QE
- 2.1GHz
4GB 2 4 3 1
CFast™ kit x 1
HDD kit x 1
— HDMI x 1, DVI-D x 1, VGA x 1
PCI x 2
Mini Card x 1
Wallmount DC 9-30V 0°C ~ 50°C (w/o air)
Ordering Information
Packing List
Phoenix Power Connector •
M3 x 4mm Screws •
6# -32 x 10mm Screws •
Wallmount Bracket x 2 •
DVD-ROM for Manual (in PDF format) and Drivers •
AEC-6876 •
