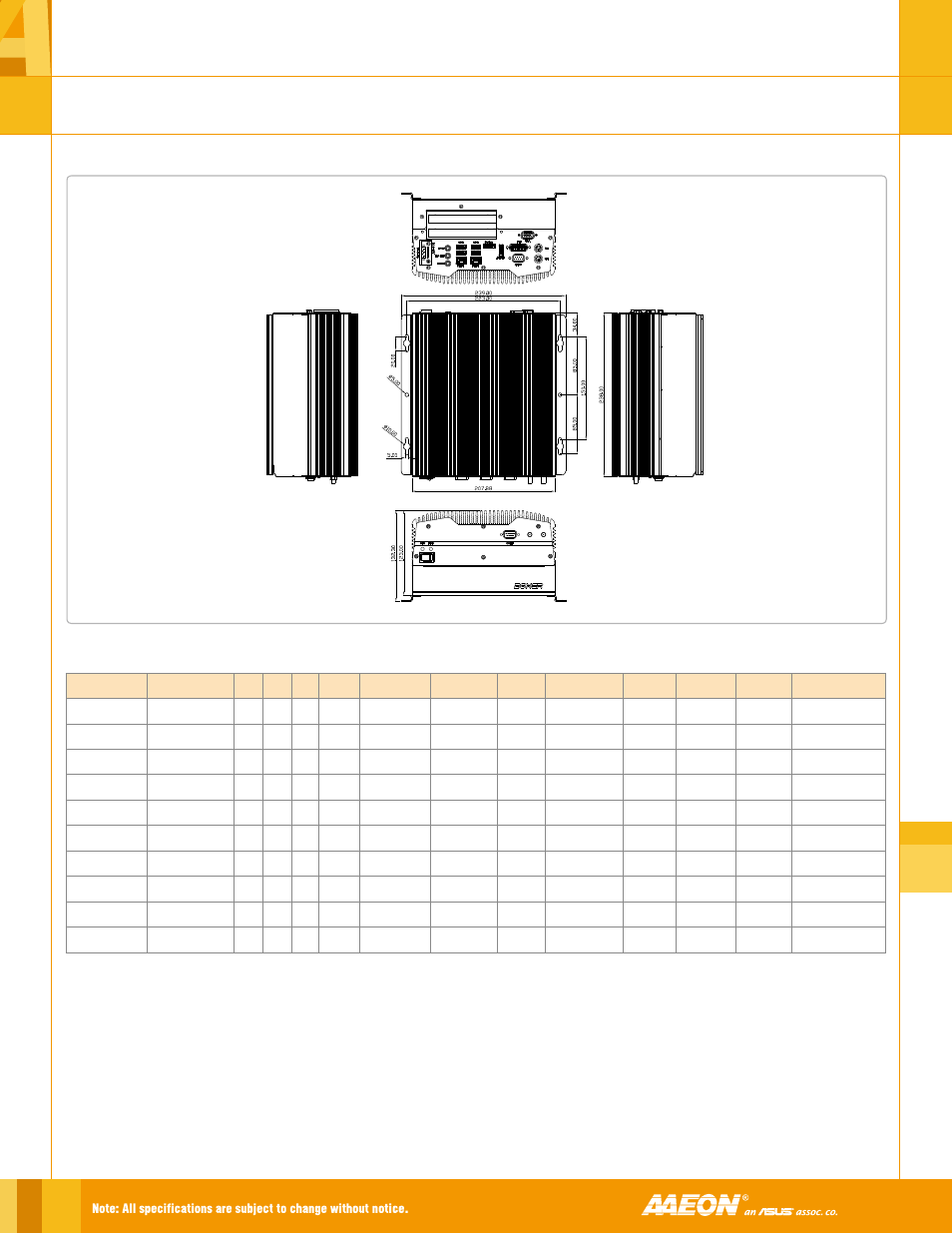

Dimension
Unit: mm
Part Number
CPU
RAM
LAN
USB
3.0
RS-232
RS-232/422/485
DIO
Storage
Display
Expansion
Mounting
Power
Operation temp.
AEC-6877-A1M-1010
Intel® Celeron® B810
2GB
2
4
1
1
—
CFast™ x 1
HDD x 1
VGA x 1, DVI x 1, DP x 2
Mini Card x 1
PCIe x 1
Wallmount
DC 9-30V
0°C ~ 50°C (w/o air)
AEC-6877-A2M-1010
Intel® i7-2710QE 2.1GHz
2GB
2
4
1
1
—
CFast™ x 1
HDD x 1
VGA x 1, DVI x 1, DP x 2
Mini Card x 1
PCIe x 1
Wallmount
DC 9-30V
0°C ~ 50°C (w/o air)
AEC-6877-A3M-1010
Intel® i5-2510E 2.7GHz
2GB
2
4
1
1
—
CFast™ x 1
HDD x 1
VGA x 1, DVI x 1, DP x 2
Mini Card x 1
PCIe x 1
Wallmount
DC 9-30V
0°C ~ 50°C (w/o air)
AEC-6877-A4M-1010
Intel® i7-3610QE 2.3GHz
2GB
2
4
1
1
—
CFast™ x 1
HDD x 1
VGA x 1, DVI x 1, DP x 2
Mini Card x 1
PCIe x 1
Wallmount
DC 9-30V
0°C ~ 50°C (w/o air)
AEC-6877-A5M-1010
Intel® i5-3610ME 2.7GHz
2GB
2
4
1
1
—
CFast™ x 1
HDD x 1
VGA x 1, DVI x 1, DP x 2
Mini Card x 1
PCIe x 1
Wallmount
DC 9-30V
0°C ~ 50°C (w/o air)
AEC-6877-B1M-1010
Intel® Celeron® B810
2GB
2
4
1
1
—
CFast™ x 1
HDD x 1
VGA x 1, DVI x 1, DP x 2
Mini Card x 1
PCI x 2
Wallmount
DC 9-30V
0°C ~ 50°C (w/o air)
AEC-6877-B2M-1010
Intel® i7-2710QE 2.1GHz
2GB
2
4
1
1
—
CFast™ x 1
HDD x 1
VGA x 1, DVI x 1, DP x 2
Mini Card x 1
PCI x 2
Wallmount
DC 9-30V
0°C ~ 50°C (w/o air)
AEC-6877-B3M-1010
Intel® i5-2510E 2.7GHz
2GB
2
4
1
1
—
CFast™ x 1
HDD x 1
VGA x 1, DVI x 1, DP x 2
Mini Card x 1
PCI x 2
Wallmount
DC 9-30V
0°C ~ 50°C (w/o air)
AEC-6877-B4M-1010
Intel® i7-3610QE 2.3GHz
2GB
2
4
1
1
—
CFast™ x 1
HDD x 1
VGA x 1, DVI x 1, DP x 2
Mini Card x 1
PCI x 2
Wallmount
DC 9-30V
0°C ~ 50°C (w/o air)
AEC-6877-B5M-1010
Intel® i7-3610ME 2.7GHz
2GB
2
4
1
1
—
CFast™ x 1
HDD x 1
VGA x 1, DVI x 1, DP x 2
Mini Card x 1
PCI x 2
Wallmount
DC 9-30V
0°C ~ 50°C (w/o air)
Ordering Information
Optional Accessories
Packing List
AEC-6877
1757912001
•
Power Adapter, 19V, 6.32A, 120W, FSP, FSP120-AAB
(A651), for DC 9-30V
1702031802
•
Power Cord (US Type) - for 1757306004
1702031830
•
Power Cord (US Type) - for 1757908400
1702031831
•
Power Cord (Japanese Type)
1702031810
•
Power Cord (European Type)
9741687600
•
Extend 2nd 2.5” SATA HDD Kit
9741687601
•
Mini Blower Kit for AEC-6876-Bxx/AEC-6877-Axx/
AEC-6877-Bxx Factory Install
Phoenix Power Connector
•
M3 x 4mm Screws
•
6# -32 x 10mm Screws
•
Wallmount Brackets
•
DVD-ROM for Manual (in PDF Format) and Drivers
•
AEC-6877
•
