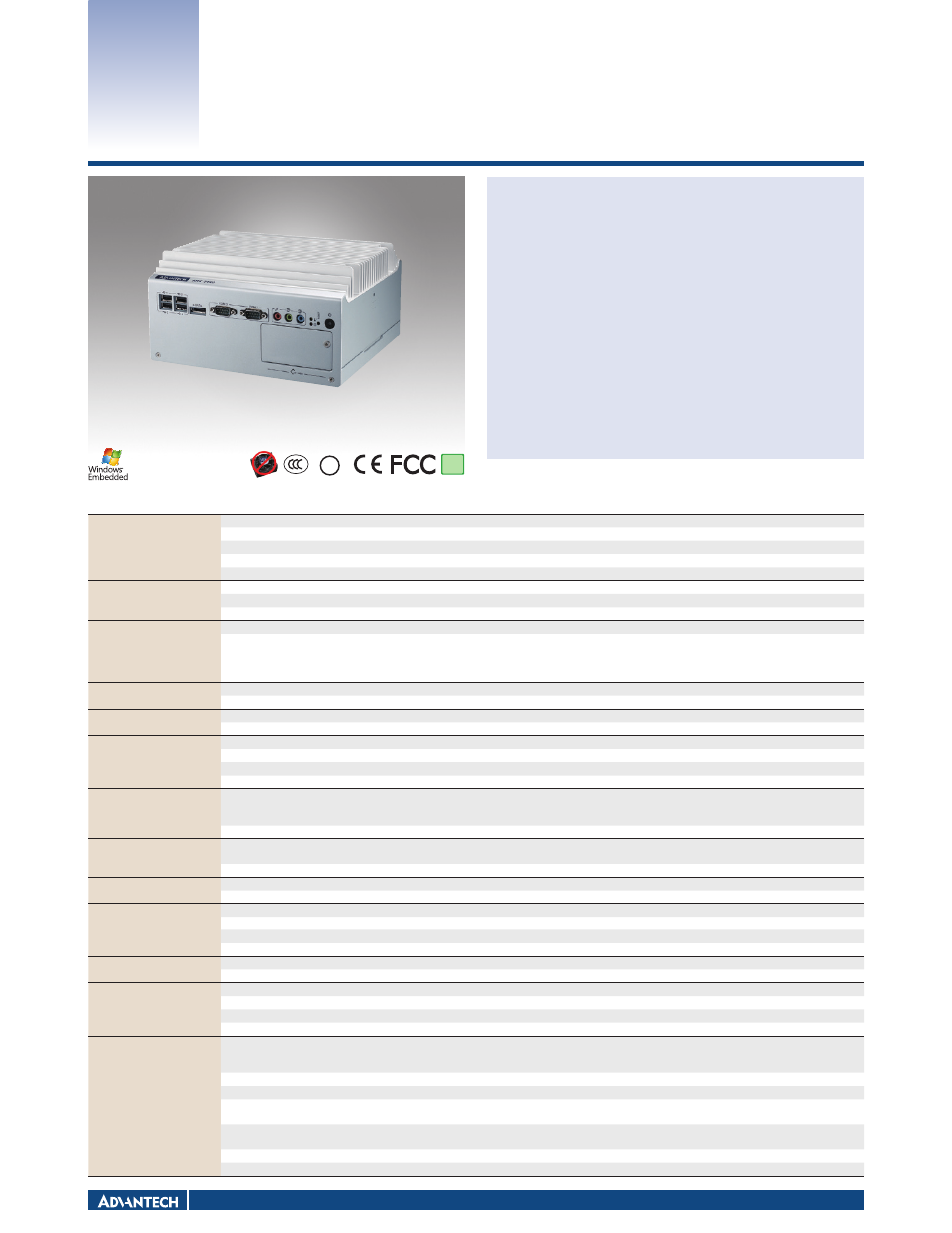

Impulse ARK-3440 - Manual

Fanless Embedded Box PCs
Features
ARK-3440 A2
1st Gen. Intel ® Core™ i3/i5/i7 with
PCI/PCIe Expansion Slots Fanless Box PC
ƒ Intel ® Core™ i3/i5/i7 Fanless Embedded Box PC
ƒ Multi-display and support for wide screen with high resolution
ƒ Supports 2 GbE, eSATA, 6 USB 2.0, audio and 3 COM ports
ƒ Two internal 2.5" SATA HDD bays
ƒ Various expansion interfaces for diverse applications
ƒ Easy integration, easy maintenance, and wide input voltage range 9 ~ 34 V
ƒ IP40 sealed design
Specifications
Processor System
CPU Intel Core i7 610E (Dual Core) Intel Core i5 520E (Dual Core) Intel Core i3 330E (Dual Core)
Frequency 2.53 GHz 2.4 GHz 2.13 GHz
L2 Cache 4MB 3MB 3MB
System Chipset Intel QM57
BIOS AMI 16 Mbit SPI BIOS
Memory
Technology DDR3 1066 MHz
Max. Capacity 8 GB
Socket 2 x 204-pin SO-DIMM
Graphics
Chipset Integrated graphics built in Intel QM57
Interface
VGA: up to 2048 x 1536 (By DVI-I to VGA adaptor)
DVI-D: up to 1920 x 1200
HDMI 1.3 up to 1920 x 1200
24-bit LVDS: up to 1920 x 1200 (Optional)
Ethernet
LAN 1 10/100/1000 Mbps, Intel 82577LM, support Wake On LAN
LAN 2 10/100/1000 Mbps, Intel 82583V, support Wake On LAN
Audio
Amplifier -
Interface Line-in, Line-out, Mic-in
IO interface
Serial Interface 2 x RS232, 1 x RS232/422/485 (w/auto flow control)
USB Interface 6 x USB ports, compliant with USB 2.0
Parallel Port Supports D-sub 25-pin connector (optional)
Digital I/O -
Expansion
PCI/PCIe Slot
1 Slot PCI and 1 Slot PCIe x1 (default);
2 Slots PCIe x1 (optional); 2 Slots PCI (optional) ; 1 Slot PCI and 1 Slot PCIe x4 (optional)
Supports maximum dimension of 167 mm (width) x 106 mm (length) for expansion PC board
Mini PCIe 2 x Mini PCIe
Storage
HDD
Supports 2 x SATA 2.5" HDD Bays (Max. Data Transfer Rate 300 MB/s)
(Internal bay: up to 12.8mm height, Removable bay: up to 9.5mm height)
SSD Supports CompactFlash socket for type I/II CompactFlash disk
Software Support
Microsoft Windows Windows 7, XP Professional, XP Embedded
Linux Fedora 14
Power Requirement
Power Type AT/ATX
Power Input Voltage 9 V
DC
~ 34 V
DC
Minimum Power Input DC 9-34V @ 6.0-1.5A
Power Adapter AC to DC, DC19V/7.89A, 150W (Optional)
Power Consumption
Typical 17.1 W
Max. 53 W
Mechanical
Construction Aluminum housing
Mounting Desk/wall-mounting
Dimensions (W x H x D) 220 mm x 117 mm x 200 mm (8.66" x 4.61" x 7.87")
Weight 4 kg (8.8 lb)
Environment
Operating Temperature
With extended temperature peripherals CompactFlash disk: 0 ~ 50° C, with 0.7m/sec air flow
With extended temperature memory and consumer grade 2.5-inch hard disk on internal drive bay 0 ~ 45° C, with 0.7m/
sec air flow
Storage Temperature -40 ~ 85° C (-40~185°F)
Relative Humidity 95% @ 40° C (non-condensing)
Vibration Loading During Operation
With CompactFlash disk: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.
With 2.5-inch hard disk: 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.
Shock During Operation
With CompactFlash disk: 50 G, IEC 60068-2-27, half sine, 11 ms duration
With hard disk: 20 G, IEC 60068-2-27, half sine, 11 ms duration
EMC CE/FCC Class A, CCC, BSMI
Safety Certifications UL, CCC, BSMI
LISTED
E180881
C
®
UL
US
RoHS
COMPLIANT
2002/95/EC
All product specifications are subject to change without notice Last updated : 15-Jan-2014
