AEC-6625
Certification
EMC CE /FCC Class A
Safety —
Dimension (W x H x D) 8.35" (w) x2.52" (H) x 6.22" (D) (212mm x 64mm x 158mm)
Gross Weight 10.34 lb (4.7 Kg)
Note Windows® XP Embedded, Windows® XP, Windows® 7 Support
V+
V - FG
D C IN
9 -3 0V
Optional Accessories
1757912001 •
Power Adapter (120W); Output: DC 19V
1702031830 •
Power Cord (US Type) - for 1757912001
1702031831 •
Power Cord (European Type) - for 1757912001
1702031810 •
Power Cord (Japanese Type) - for 1757912001
9741662507 •
2.5” SATA HDD/DVD Kit w/o DVD-ROM
9741662504 •
Dual 2.5” SATA HDD Kit
9741662503 •
Dual 2.5” SATA HDD Kit (Removable)
9741662506 •
Slim DVD-ROM + 2.5” SATA HDD Kit
9741662505 •
VESA Mount Kit
9741662508 •
Fan Kit
9741C50W01 •
Mini Card (PCIe) 802.11 b/g/n + Bluetooth 3.0
9741662509 •
I/O Dust Cover Kit
Packing List
Wallmount Bracket x 2 •
Screw Package x 1 •
RAM Thermal Pad (60mm x 25mm x 3mm) x 1 •
DVD-ROM for Manual (in PDF Format) and Drivers •
AEC-6625 •
Ordering Information
Part Number CPU RAM LAN USB RS-232
RS-
232/422/485
AUDIO Storage
Accessory
Cables
Display Expansion PCI-104 Mounting Power Temp.
TF-AEC-6625-A1M-1010
Intel® P4500 1.86GHz
processor
_ 2 2 1 1
Line -in x 1
Line-out x 1
CF kit x 1 _
DVI-D x 1
VGA x 1
Display port x 1
Mini Card x 1 _
Wallmount
VESA Mount (Option)
DC 9-30V -20 °C~50°C (w/o air)
TF-AEC-6625-A2M-1010
Intel® P4500 1.86GHz
processor
_ 2 4 3 1
Line -in x 1
Line-out x 1
CF kit x 1 _
DVI-D x 1
VGA x 1
Display port x 1
Mini Card x 1 _
Wallmount
VESA Mount (Option)
DC 9-30V -20 °C~50°C (w/o air)
TF-AEC-6625-A3M-1010
Intel® P4500 1.86GHz
processor
_ 2 4 3 1
Line -in x 1
Line-out x 1 CF kit x 1
HDD kit x 1
_
DVI-D x 1
VGA x 1
Display port x 1
Mini Card x 1 PCI-104 x 1
Wallmount
VESA Mount (Option)
DC 9-30V -20 °C~50°C (w/o air)
11-10

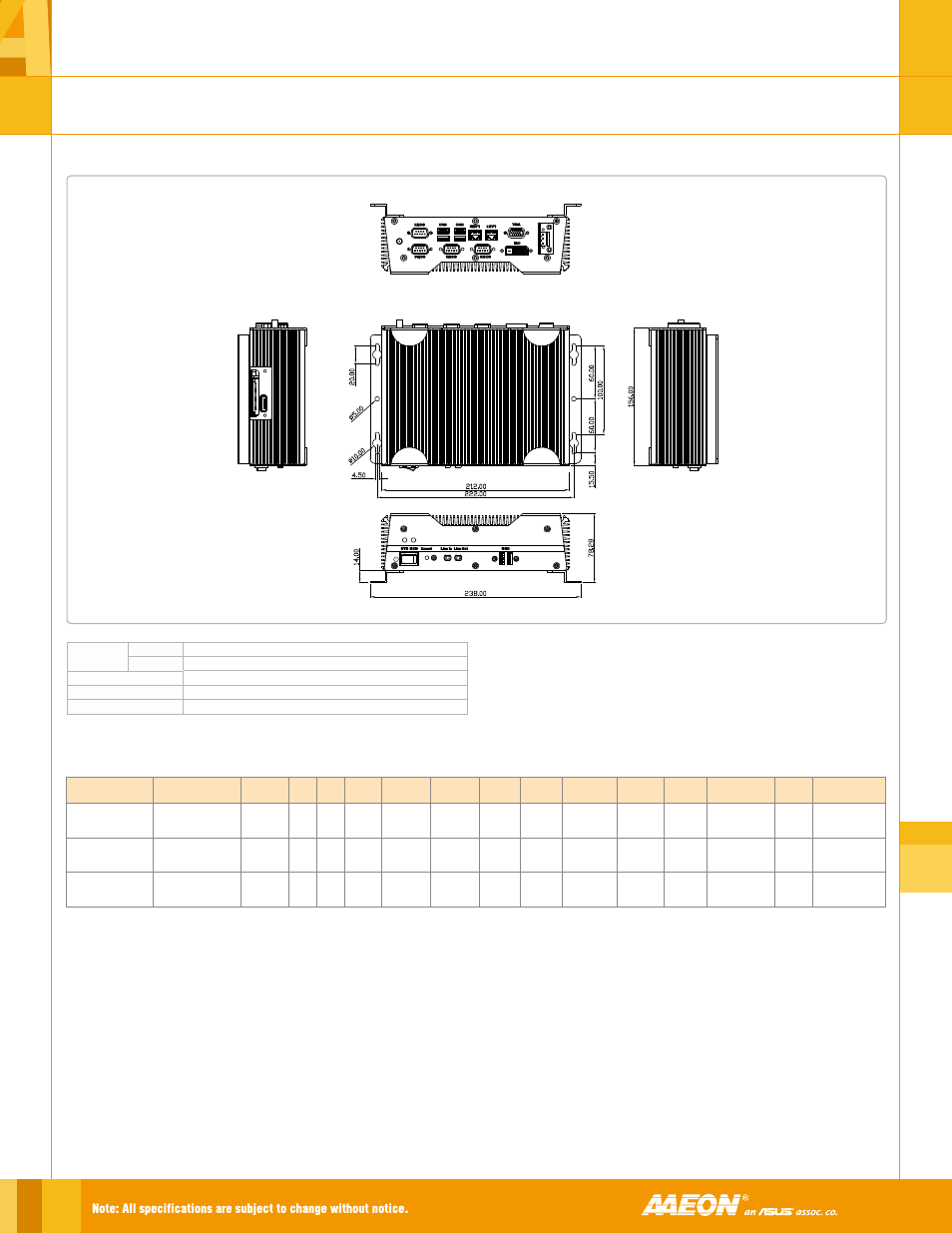

Dimension
Unit: mm
