Dimensions
Unit: mm
USB0 USB1
CF CARD
COM 1 VGA
LAN1 LAN2
MIC LINE-OUT LINE-IN COM 2 COM 3 COM 4
12V
MIC
LINE-IN
LINE-OUT
COM 2 COM3 COM4
USB0
USB1
LAN1 LAN2
CF CARD
COM1 VGA Power Input
LVDS BACKLIGHT
PWR HDD
DIO
USB4
USB3
USB2
USB5
USB2
USB3
USB4
USB5 DIO HDD LED
PWR LED
ARK-3360L
Packing List
Part Number Description
- 1 x ARK-3360 Unit
- 1 x User Manual (Simplified Chinese)
- 1 x Utility CD
Ordering Information
Part Number Description
ARK-3360L-N4A1E
Intel Atom N450 1.67 GHz Compact Box IPC, w/ 2 x GbE,
6 x USB 2.0, 4 x COM, 1x MiniCPIe, VGA, DIO, Audio
ARK-3360L-D5A1E
Intel Atom D510 1.67 GHz Compact Box IPC, w/ 2 x GbE,
6 x USB 2.0, 4 x COM, 1x MiniCPIe, VGA, DIO, Audio
Optional Items
Part Number Description
1757002942
Adapter AC 90-264V 36W/12V W/ PFC FSP036-RAB For
ARK-3360L
1700008921
POWER CORD 3P/3P POWER SUPPLY 1.8M ARK-5280
PSE
170203180A Power cable 3P 183 cm UK type for LE-9702B-01 Ad
170203183C Power CABLE 3P Europe (WS-010+083) 183 cm
1700001524 POWER CABLE 3P/3P POWER SUPPLY 1.8M FPM-306
Embedded OS
Part Number Description
2070009030 XPE WES2009 Luna Pier V4.0 ENG
2070009031 XPE WES2009 Luna Pier V4.0 MUI24

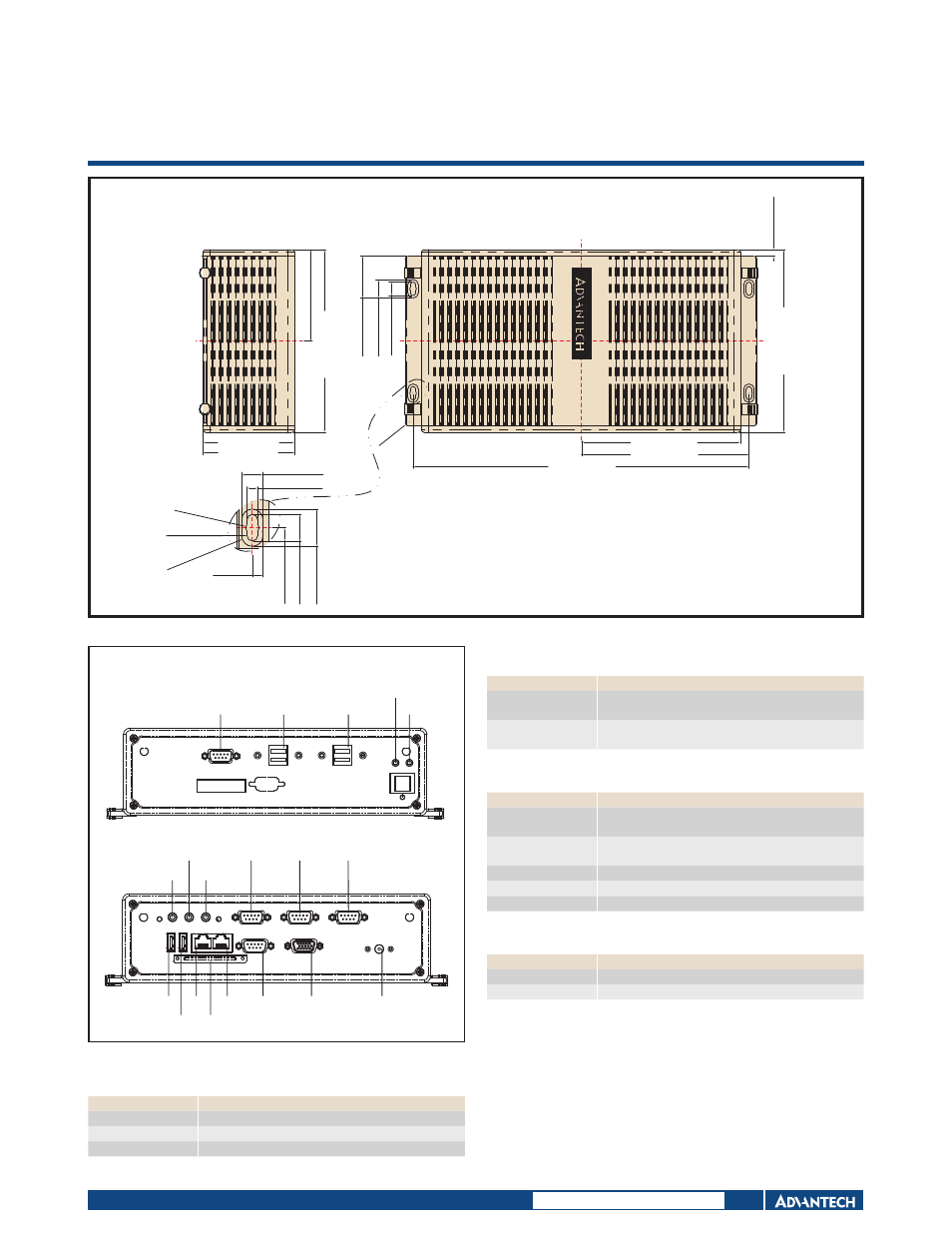

ARK-3360L External I/O Mechanical Layout/Drawing
119.51 [4.705]
125.76 [4.951]
252.50 [9.941]
5.00 [.197]
10.00 [.394] 14.00 [.551]
31.38 [1.235]
137.25 [5.404]
4.00
[ .157]
4.00 [0.158]
5.00 [
0.197]
4.00 [ 0.158]
8.00 [
0.315]
10.00 [0.394] 14.00 [0.552]
8.00 [0.315]
4.00
[0.158]
5.00 [0.197]
69.20 [2.724]
69.00 [2.717]
68.63 [2.702]
137.25 [5.404]
Rear
Front
