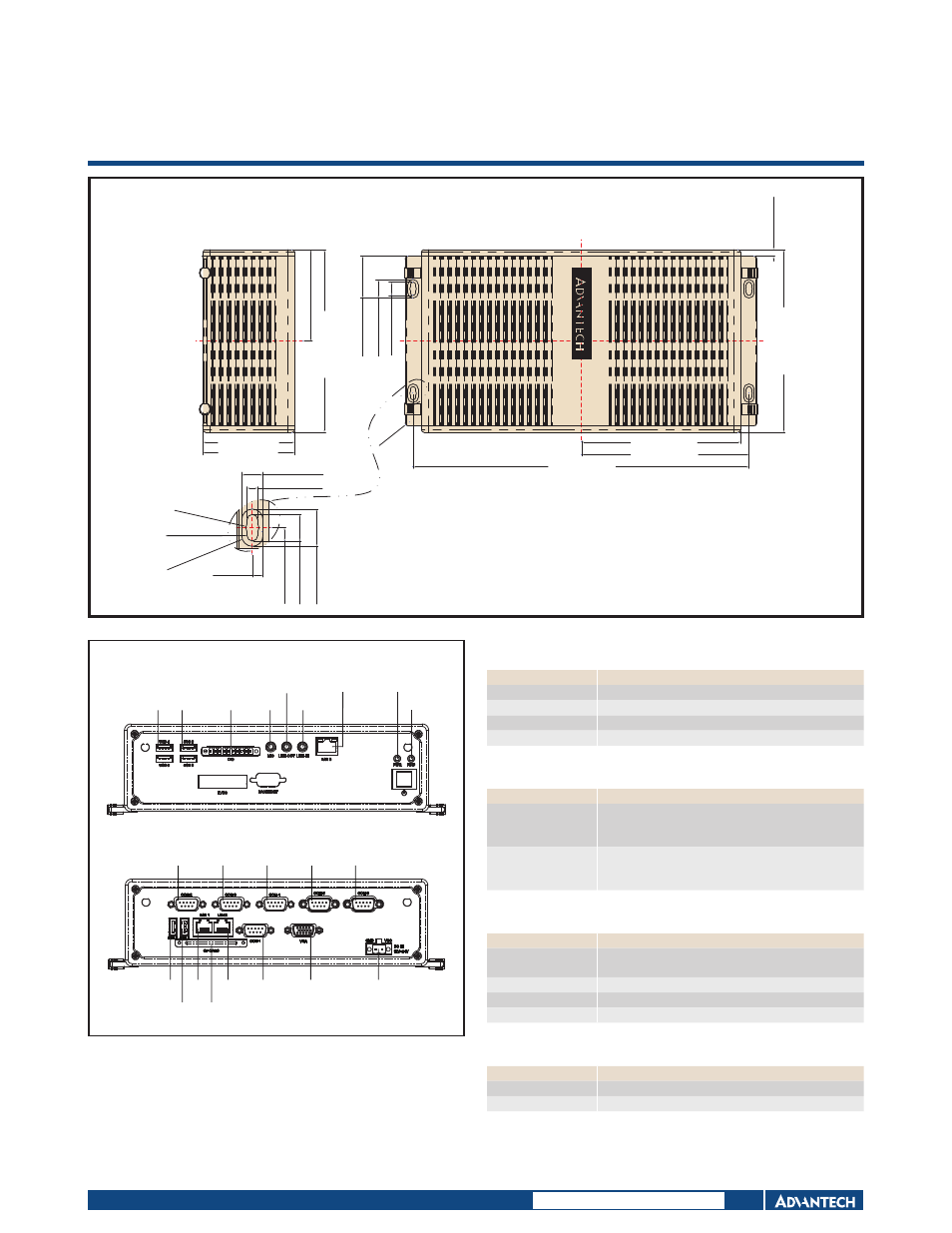

Dimensions
Unit: mm
Front
COM2 COM3 COM4 COM5 COM6
USB0
USB1
LAN1 LAN2
CF CARD
COM1 VGA Power Input
USB2
USB3
USB4
USB5 DIO HDD LED
PWR LED
MIC
LINE-IN
LINE-OUT
LAN3
ARK-3360F
Packing List
Part Number Description
- 1 x ARK-3360 Unit
1700009001 1 x 2-pin Phoenix DC power connector
- 1 x User Manual (Simplified Chinese)
- 1 x Utility CD
Ordering Information
Part Number Description
ARK-3360F-N4A1E
Intel Atom N450 1.67 GHz Compact Box IPC, w/ 3 x GbE,
6 x USB 2.0, 6 x COM, 1x MiniPCIe, 1 x MiniPCI, VGA,
DIO, Audio
ARK-3360F-D5A1E
Intel Atom D510 1.67 GHz Compact Box IPC, w/ 3 x GbE,
6 x USB 2.0, 6 x COM, 1x MiniPCIe, 1 x MiniPCI, VGA,
DIO, Audio
Optional Items
Part Number Description
1757000222
AC-to-DC Adapter, DC19 V/3.42 A 65 W, with Phoenix
Power Plug, 0 ~ 40° C for Home and Office Use
1700001947 Power cable 2-pin 180 cm, USA for ARK-338X
1700001948 Power cable 2-pin 180 cm, Europe for ARK-338X
1700001949 Power cable 2-pin 180 cm, UK for ARK-338X
Embedded OS
Part Number Description
2070009030 XPE WES2009 Luna Pier V4.0 ENG
2070009031 XPE WES2009 Luna Pier V4.0 MUI24
ARK-3360F External I/O Mechanical Layout/Drawing
119.51 [4.705]
125.76 [4.951]
252.50 [9.941]
5.00 [.197]
10.00 [.394] 14.00 [.551]
31.38 [1.235]
137.25 [5.404]
4.00
[ .157]
4.00 [0.158]
5.00 [
0.197]
4.00 [ 0.158]
8.00 [
0.315]
10.00 [0.394] 14.00 [0.552]
8.00 [0.315]
4.00
[0.158]
5.00 [0.197]
69.20 [2.724]
69.00 [2.717]
68.63 [2.702]
137.25 [5.404]
Rear
