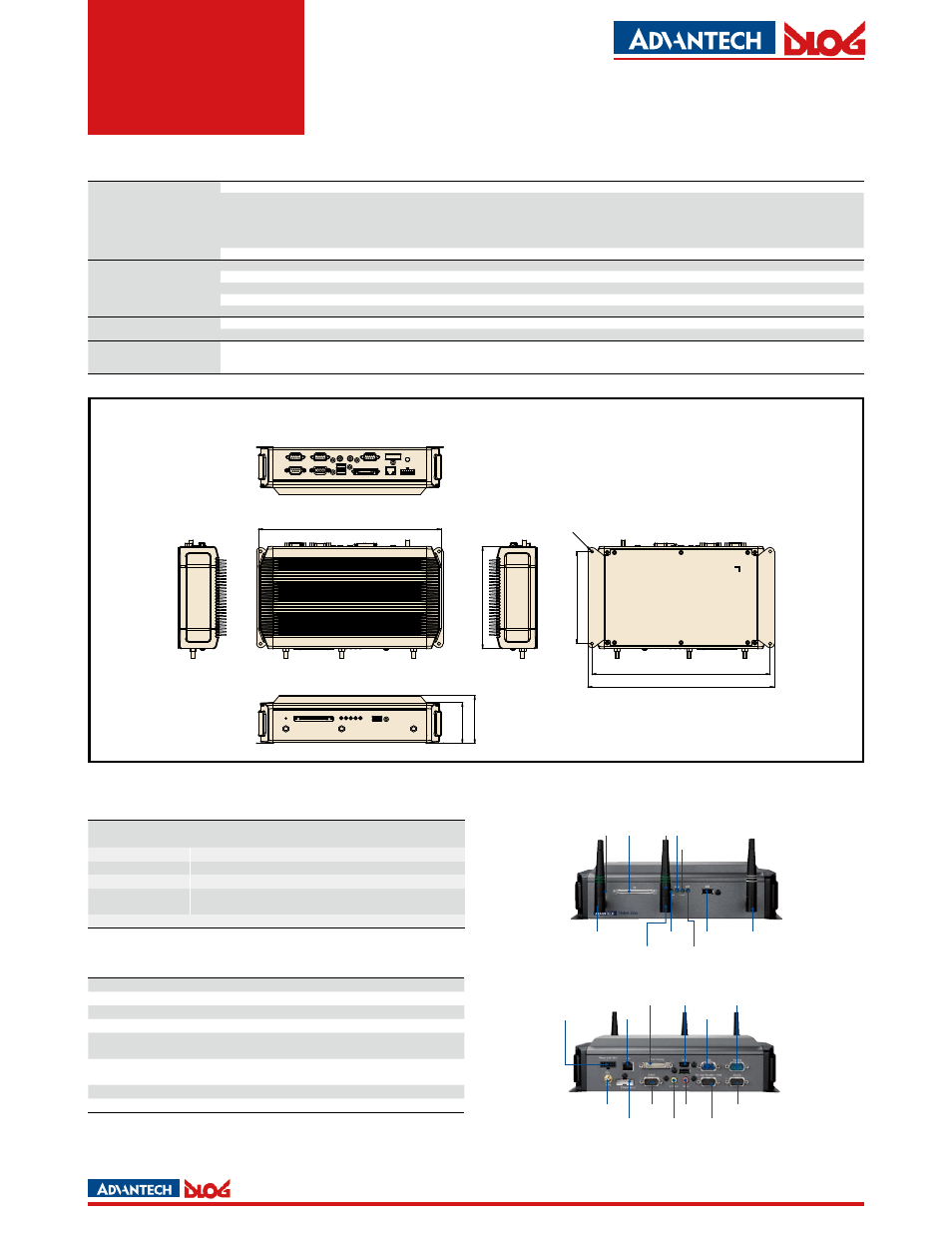

Impulse TREK-550 - Manual (Page 2)

Competence in Mobile Computing
http://www.advantech-dlog.com
Regional contact:
I/O Connectors Ordering Information
Part Number Description
TREK-550-GXPEA0E Intel Atom 1.1 GHz, GPS, GPRS, 1GB DDR, 4GB CF, WinXPe
TREK-550-GA0E Intel Atom 1.1 GHz , GPS, GPRS module built-in
TREK-550-CA0E Intel Atom 1.1 GHz , GPS, CDMA module built-in
TREK-550-HA0E Intel Atom 1.1 GHz , GPS, HSDPA module built-in
TREK-303R-HA0E
7" vehicle display system, 800 x 480 resolution, with 4wire
resistive touchscreen, 2-watt speaker
1700018342 2-meter cable(paired with TREK-550)
Packing List
Description Part Number Quantity
TREK-550 x1
CAN/Video-in cable (15 cm) 1700018743 x1
Power cable (1.8 m) 1700018306 x1
GPS Antenna (5 m) (if your configuration has GPS
module)
1750001380 x1
WWAN Antenna (if your configuration has WWAN
module)
1750006080 x1
Startup manual CD 2068055000 x1
Cable clip for Mic in, line out, USB host, LAN 1990018848T000 x6
Power
GPS ant.
LAN
CAN x1 & Video in x2
Smart Display
DI/DO
USB
Line out
MIC in
RS-232/RS-485/J1708
VGA
RS-232
RS-232
Car Power Design
DC-input Supports 12/24V car power system by ISO7637-2 & SAEJ1113 (6V ~ 36V wide DC input)
Power Management
Power on/off delay,
- Power on delay, 2 sec default
- Power off delay, 5 sec as default
- Delay time controllable by SW configuration
- Low voltage protection
HW Reset Yes, 1 reset button
Environment
IP Rating IP 31
Operating Temp. -30° C ~ +70° C
Storage Temp. -40 °C ~ +85° C
Vibration/Shock MIL-STD-810G, Method 516.5
EMC CE, FCC, IC
Certifications
Safety CE, CB
Vehicle Power Regulation E-mark, SAE J1455, SAE J1113, ISO7637-2 compliant
Mechanical Material
Top cover (Aluminum extrusion)
Side cover (PC)
Bottom & I/O cover (metal)
Reset
Wi-Fi 1ant.
CF
Wi-Fi 2nd ant.
Power
Storage
WLAN
WWAN
GPS
USB WWAN ant.
59.70 69.70
266
149
259.60
134.20
Ø4.80
271.60
TREK-550
Specifications Cont.
Dimensions
Unit: mm
