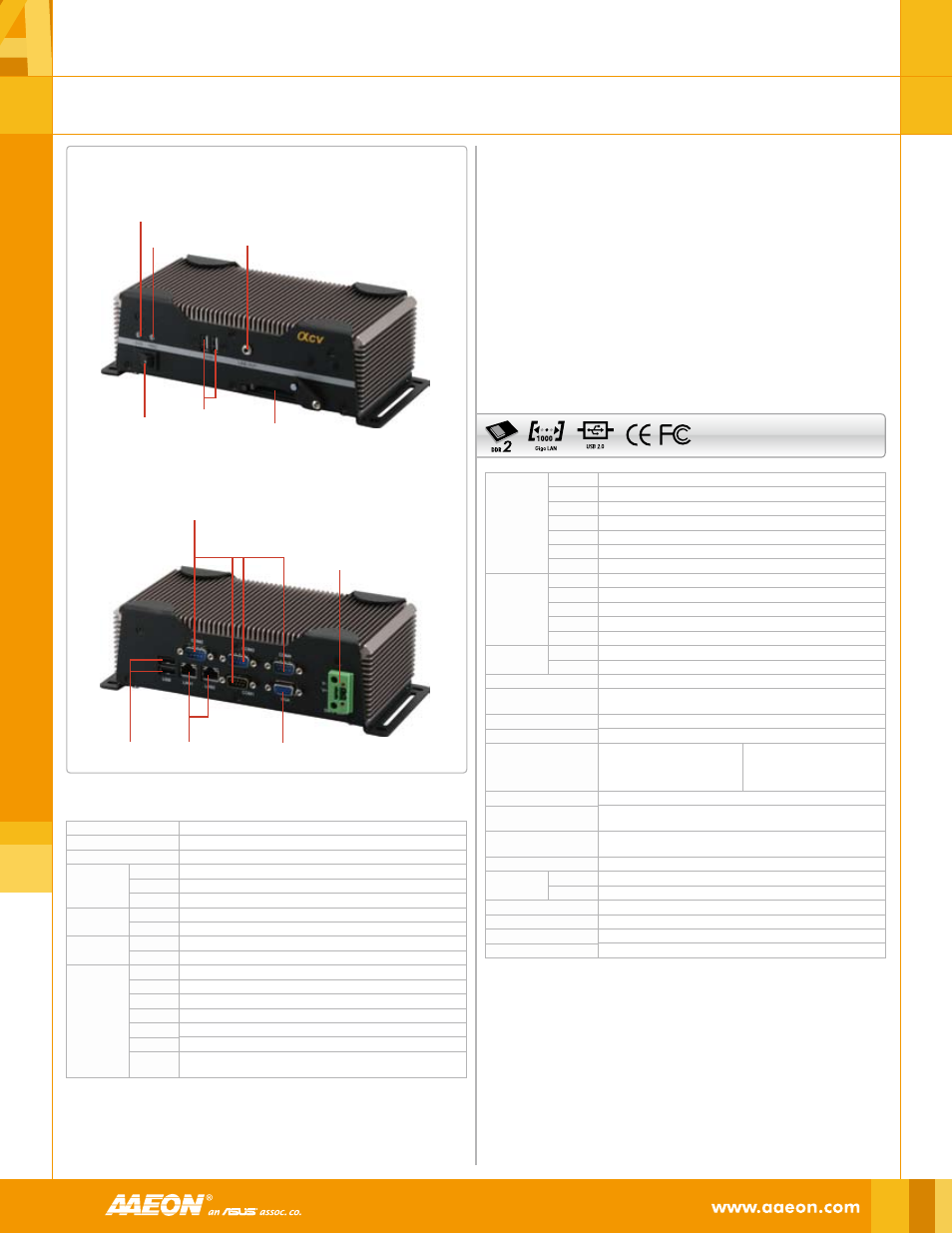

AEC-6613

Intel® Atom™ D2550 Processor

Intel® NM10 Express Chipset

Intel® GMA 3650 Integrated Graphic Engine

COM x 4

USB2.0 x 4

Dual Gigabit Ethernet LAN

VGA Output

Fanless System Design

Optional DVI-D

AAEON’s Hi-Safe Support

Fanless Embedded Controller with Intel® NM10 Chipset

CPU

Intel® Atom™ D2550 1.86GHz

Chipset

Intel® NM10

System Memory

DDR3 800/1066 SODIMM x 1, Max. 4GB

Display
Interface

VGA

DB-15 x 1

DVI

DVI-D x 1(For A3/A4/A3M/A4M)

Others

Storage Device

SSD

CFast™ Slot x 1 (w/Cover protection)

HDD

2.5” SATA HDD bay x 1 (AEC-6613-A2/AEC6613-A2M)

Network

LAN

Gigabit Ethernet, RJ-45 x 2

Wireless

Optional by mini-card

Front I/O

USB Port

USB2.0 x 2

LAN

Serial Port

DIO

Audio

Line-out x 1

KB/MS

Others

Power ON/OFF Switch x 1, Power LED x 1, HDD LED x 1
CFast™ slot x 1, antenna hole x 2

Rear I/O

USB Port

USB 2.0 x 2

LAN

RJ-45 x 2

Serial Port

RS-232 x 3 (optional extra 2), RS-232/422/485 x 1

DIO

Audio

KB/MS

Others

Power input x 1

Expansion

PCIe [x1]

PCI

Mini Card

1

Mini PCI

Others

Indicator

Front

Power LED x 1, Hard Disk Drive active LED x 1

Rear

Power Requirement

DC-in 12V, with DC jack lockable, DC 9 ~ 30V with 3-pin terminal block

Power Consumption

Intel® Atom™ D2550 1.86GHz
0.5A@30V

System Cooling

Passive

Mounting

Wallmount

Operating Temperature

Ambient with Airflow:
5°F ~ 131°F (-15°C ~ 55°C) - (HDD)
5°F ~ 140°F (-15°C ~ 60°C) -
(CFast™ Card)

No Airflow:
5°F ~ 122°F (-15°C ~ 50°C) - (HDD)
5°F ~ 131°F (-15°C ~ 55°C) -
(CFast™ Card)

Storage Temperature

-4°F ~ 158°F (-20°C ~ 70°C)

Anti-Vibration

5g rms / 5 ~ 500Hz / operation – CFast™ Card
1g rms / 5~ 500Hz / operation – HDD

Anti-Shock

50 G peak acceleration (11 msec. duration) – CFast™ Card
20 G peak acceleration (11 msec. duration) – HDD

MTBF

56,000

Certification

EMC

CE /FCC Class A

Safety

Dimension (W x H x D)

8.35” (W) x 3.1” (H) x 2.25” (D) (212.15mm x 78.88mm x 107mm)

Gross Weight

8.38 lb (3.8 Kg)

Net Weight

4.75 lb (2.76 Kg)

Note

Windows® 7, Linux Fedora, Windows® XP (D2550B3 Only)

USB2.0 x 2

Power LED

HDD Active LED

Power Switch

Line-out

CFast™ Slot

Power Input

VGA

COM x 4

USB x 2

LAN x 2

Front View

Rear View
