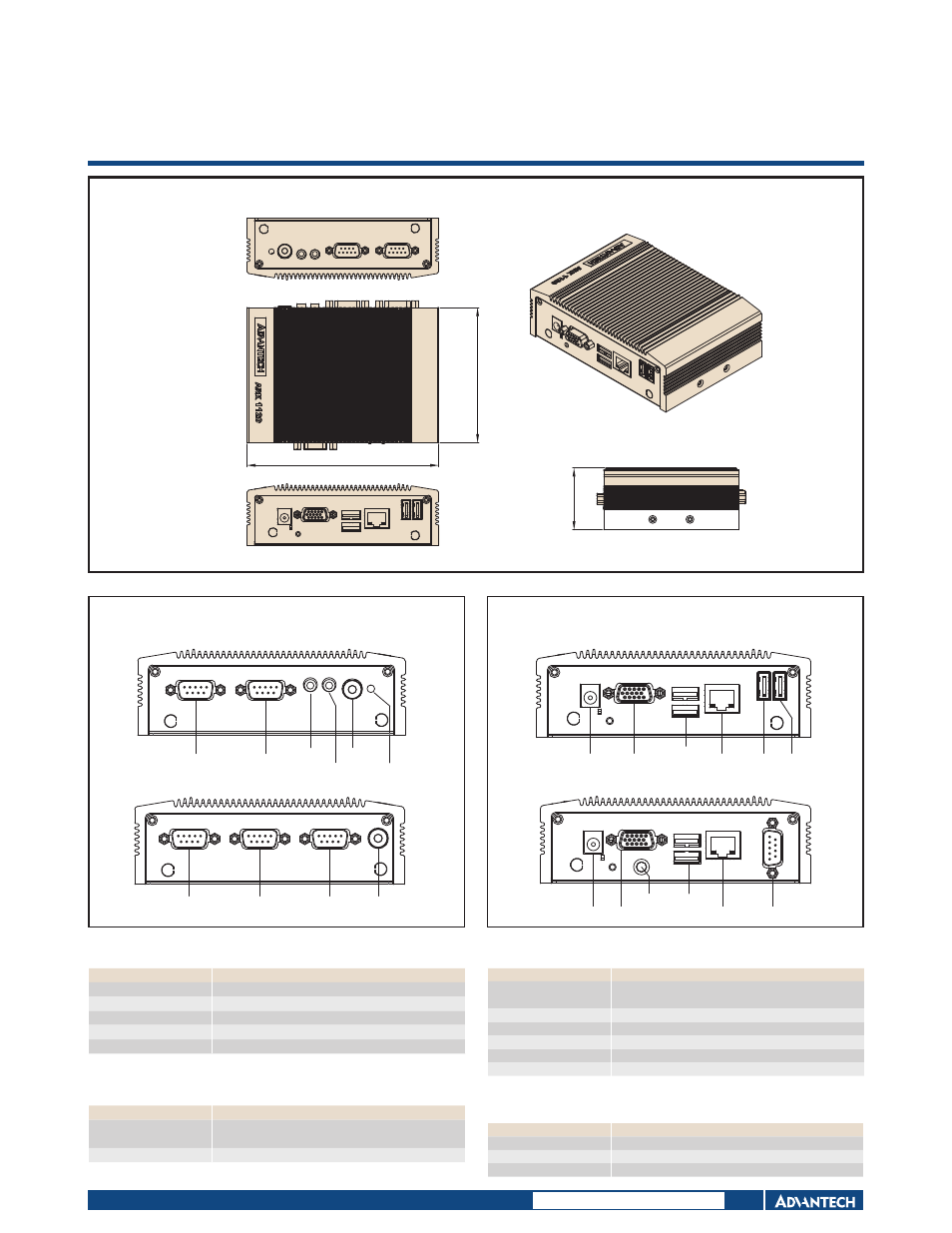

Dimensions
Unit: mm
ARK-1120
Front Panel External I/O Mechanical Layout/Drawing
ARK-1120L
ARK-1120F ARK-1120F
Rear Panel External I/O Mechanical Layout/Drawing
ARK-1120L
Packing List
Part Number Description
- 1 x ARK-1120 unit
- 1 x Driver/Utility CD/manual
- 1 x Tranditional chinese user manual for CCC
- 1 x China RoHS
1960047289T001 DC power adapter locker
Ordering Information
Part Number Description
ARK-1120L-N5A1E
Intel Atom N455 1.66GHz w/ 2 COM + 4 USB + 1 LAN
+ Audio
ARK-1120F-N5A1E Intel Atom N455 1.66GHz w/ 4 COM + 2USB + 1 LAN
Optional Items
Part Number Description
1757003553
AC-to-DC Adapter DC12 V/3 A 36 W, with DC-Jack,
0 ~ 40° C for Home and Office Use
1700001524 Power Cable 3-pin 180 cm, USA type
170203183C Power Cable 3-pin 180 cm, Europe Type
170203180A Power Cable 3-pin 180 cm, UK Type
1700008921 Power Cable 3-pin PSE Mark 183cm
1960052227N001 ARK-1120 VESA/Desk mount bracket
Embedded OS
(Only available for T-Parts OEM, and CTOS service)
Part Number Description
2070010313 XPE WES2009 V4.0 ENG
2070010314 XPE WES2009 V4.0 24MUL
2070010919 WES7E SP1 V5.1 ENG
43.1
94.20
133.80
COM1 COM2
LINE-OUT
LINE-IN HDD LED
ON/OFF
DC INPUT VGA LAN USB3 USB4
USB1
USB2
COM1 COM2 COM3 ON/OFF
DC INPUT VGA LAN COM4
USB1
USB2
HDD LED
