w w w . i e i w o r l d . c o m
Embedded System
1 x QIG
1 x Driver CD
2 x keys (P/N: 457007-003103-00-RS)
1 x Screw set
1 x 5V 25W power adaptor (with ERP/PSE certificate)
(P/N:63000-FSP025DGAA1702-RS)
1 x 2dbi wireless antenna (for wireless model only)
Model Name
uIBX-200-VX800A
(uIBX-200-VX800B)
uIBX-200-Z510
Platform VIA Intel®
Chassis
Color Metallic
Dimensions 120 x 120 x 44.4mm
Chassis Construction Aluminum Alloy casing, Plastic front panel
Motherboard
Motherboard Model System Board
M/B Size System Board
Processor CPU
VIA® Eden™ ULV
500MHz (1GHz)
Intel® Atom™
Z510P 1.1GHz
Chipset VIA VX800 Intel® US15WP
System Memory
512MB (1GB) DDR2
onboard memory
1GB DDR2
onboard memory
Storage CompactFlash® 1
System
Function
USB 2.0 4
Ethernet 1 x Realtek 8111CP PCIe GbE
RS-232 2 x RS-232
Display 1 x VGA
Resoluiton 1920x1440@60Hz 1600x1200@60Hz
Audio 1 x mic in, 1 x speaker out
Wireless 1 x 802.11 b/g/n
Expansion 1 x PCIe Mini Card slot (reserved for wifi)
Power
Power Input 5VDC in, AT mode only
Power Consumption
uIBX-200-VX800: [email protected]
(VIA Eden 500MHz, DDR2 512MB)
[email protected] (VIA Eden 1GHz, DDR2 1GB)
uIBX-200-Z510: [email protected]
(Intel® Z510PT 1.1G GHz, DDR2 1GB)
Reliability
Mounting
VESA mount, doule VESA mount w/VESA
adaptor
Operating
Temperature
0°C ~ 50°C
Operating Shock Half sine wave 3G; 11ms 3axis
Operating Vibration Meet MIL-STD-810F 514.5C-2
Weight (Net/Gross) 480g/1.5kg
uIBX-200-Z510P
Part No. Description
UIBX-200-R11/Z510P/1GB
Fanless embedded system with Intel® Atom™ Z510P 1.1GHz CPU, US15WP system chipset, onboard 1GB DDR2 memory, 5VDC in, 25W power
adaptor with ERP & PSE certificate, RoHS
UIBX-200W-R11/Z510P/1GB
Fanless embedded system with Intel® Atom™ Z510P 1.1GHz CPU, US15WP system chipset, onboard 1GB DDR2 memory, built-in 802.11b/g/n
wireless, 5VDC in, 25W power adaptor with ERP & PSE certificate, RoHS
uIBX-200-VX800
UIBX-200-R21/VX800A/512MB
Fanless embedded system with VIA Eden ULV 500Hz CPU, VX800 chipset, onboard 512MB DDR2 memory, 5VDC-In, 25W power adapter with
ERP & PSE certificates, black, ROHS
UIBX-200W-R21/VX800A/512MB
Fanless embedded system with VIA Eden ULV 500Hz CPU, VX800 chipset, onboard 512MB DDR2 memory, built-in 802.11b/g/n wireless,
5VDC-In, 25W power adapter with ERP & PSE certificates, black, ROHS
UIBX-200-R21/VX800B/1GB
Fanless embedded system with VIA Eden ULV 1GHz CPU, VX800 chipset, onboard 1GB DDR2 memory, 5VDC-In,25W power adapter with ERP
& PSE certificates, black, ROHS
UIBX-200W-R21/VX800B/1GB
Fanless embedded system with VIA Eden ULV 1GHz CPU, VX800 chipset, onboard 1GB DDR2 memory, built-in 802.11b/g/n wireless, 5VDC-In,
25W power adapter with ERP & PSE certificates, black, ROHS
Embedded OS options
UIBXCF-200-US15WP-CE060 Windows® CE 6.0 OS image, for uIBX-200-US15WP, with 128 MB CompactFlash® memory card, RoHS
UIBXCF-200-US15WP-XPE Windows® XP Embedded OS image, for uIBX-200-US15WP, with 1GB CompactFlash® memory card, RoHS
UIBXCF-200-VX800-CE060 Windows® CE 6.0 OS image, for uIBX-200-VX800, with 128 MB CompactFlash® memory card, RoHS
UIBXCF-200-VX800-XPE Windows® XP Embedded OS image, for uIBX-200-VX800, with 1GB CompactFlash® memory card, RoHS
Mounting kit
UIBXVK-200B VESA 75 mount kit for uIBX-200, black
VK-75100B VESA mount 75 to100 adapter, black
Specifications
Ordering Information

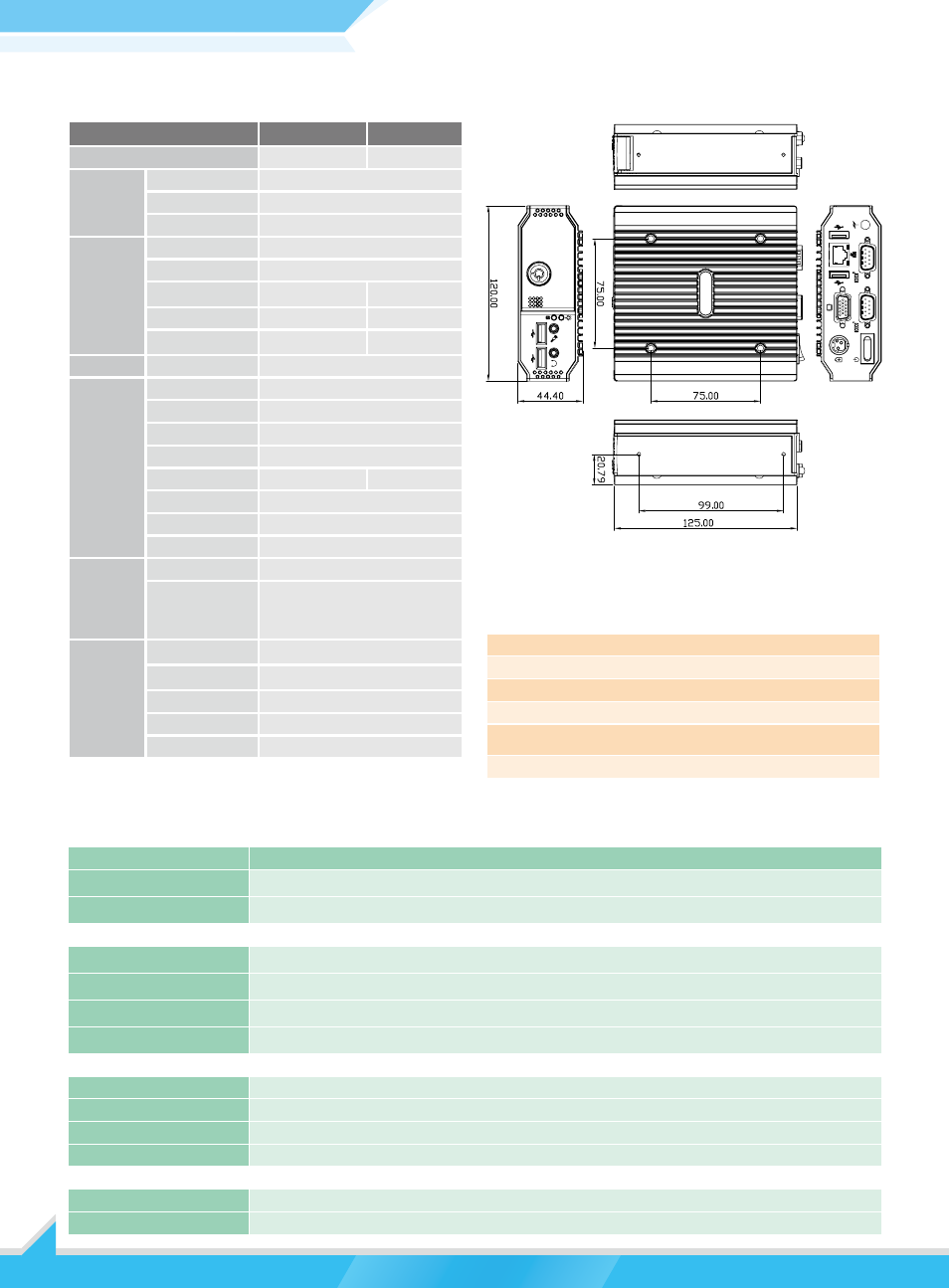

Dimensions
(Unit: mm)
Packing List
uIBX-200 series-2011-V10
