Features
Specifications
Antenna (WiFi/Bluetooth™ Optional)
USB 3
DIO
COM 2
COM 1
VGA
Lockable DC-In
Power Switch
LAN 1
LAN 2
USB 2
USB 1
COM 3
USB 4
COM 5
COM 4
MIC-in
Line-out
Tur
n-Ke
y C
ha
ss
is
S
olu
tion
s (
Em
BO
X)
Intel® Atom D2550 1.86 GHz Processor
■
■
DDR3 1066 SODIMM x 1, Up To 4 GB
■
■
CRT
■
■
Realtek ALC662 Codec for 2CH HD Audio
■
■
Gigabit Ethernet x 2
■
■
2.5” SATA Hard Disk Drive Bay x 1
■
■
USB2.0 x 4, COM x 6, 8-bit Digital I/O
■
■
Mini Card x 1, CFast™ x 1
■
■
WiFi & Bluetooth® Combo Module (Optional)
■
■
Lockable Power Input +12V
■
■
Fanless
■
■
Fanless Embedded Box for GENE-CV05
TKS-G21-CV05
CPU
Onboard Intel® Atom™ D2550 Processor up to 1.86 GHz
Chipset
Intel® Atom™ D2550 + NM10
System Memory
204-pin DDR3 SODIMM x 1, Max. 4 GB (DDR3 1066)
Display
Interface
VGA
D-SUB 15 x 1
DVI
—
Others
—
Storage
Device
SSD
CFast™ x 1
HDD
2.5" Hard Disk Drive Bay x 1
Network
LAN
Realtek RTL 8111E, 10/100/1000 Base-TX Ethernet
Wireless
802.11b/g/n WiFi (Optional)
Front I/O
USB Host
USB Type A x 2
LAN
—
Serial Port
COM x 3
DIO
—
Audio
Line-out, Mic-in
KB/MS
—
Others
—
Rear I/O
USB Host
USB Type A x 2
LAN
RJ-45 x 2
Serial Port
COM x 3
DIO
8-bit (Programmable) x 1
Audio
—
KB/MS
Through USB port
Others
—
Expansion
PCIe
—
PCI
—
Mini Card
Mini Card x 1 (Internal)
Mini PCI
—
Others
—
Indicator
Front
Power LED x 1, HDD LED x 1
Rear
—
Power Requirement
+12V DC Input
Power Consumption
—
System Cooling
Fanless
Mounting
Desktop or Wallmount (optional)
Operating Temperature
32°F ~ 122°F (0°C ~ 50°C)
Storage Temperature
-40°F ~ 176°F (-40°C ~ 80°C)
Anti-Vibration
5g rms/ 5 ~ 500Hz/ random operation (CFast™)
1g rms/ 5 ~ 500Hz/ random operation (Internal Hard Disk Drive active Module)
Anti-Shock
50G peak acceleration (11 msec. duration) (CFast™)
20G peak acceleration (11 msec. duration) (Hard Disk Drive Module)
MTBF (Hours)
—
Certification
EMC
CE/FCC Class A
Safety
—
Dimension (W x H x D)
7.79" x 7.08" x 2.0" (198mm x 180mm x 51mm)
Gross Weight
Heavy duty steel (1.78 kg/ 3.92 lb)
DDR
3

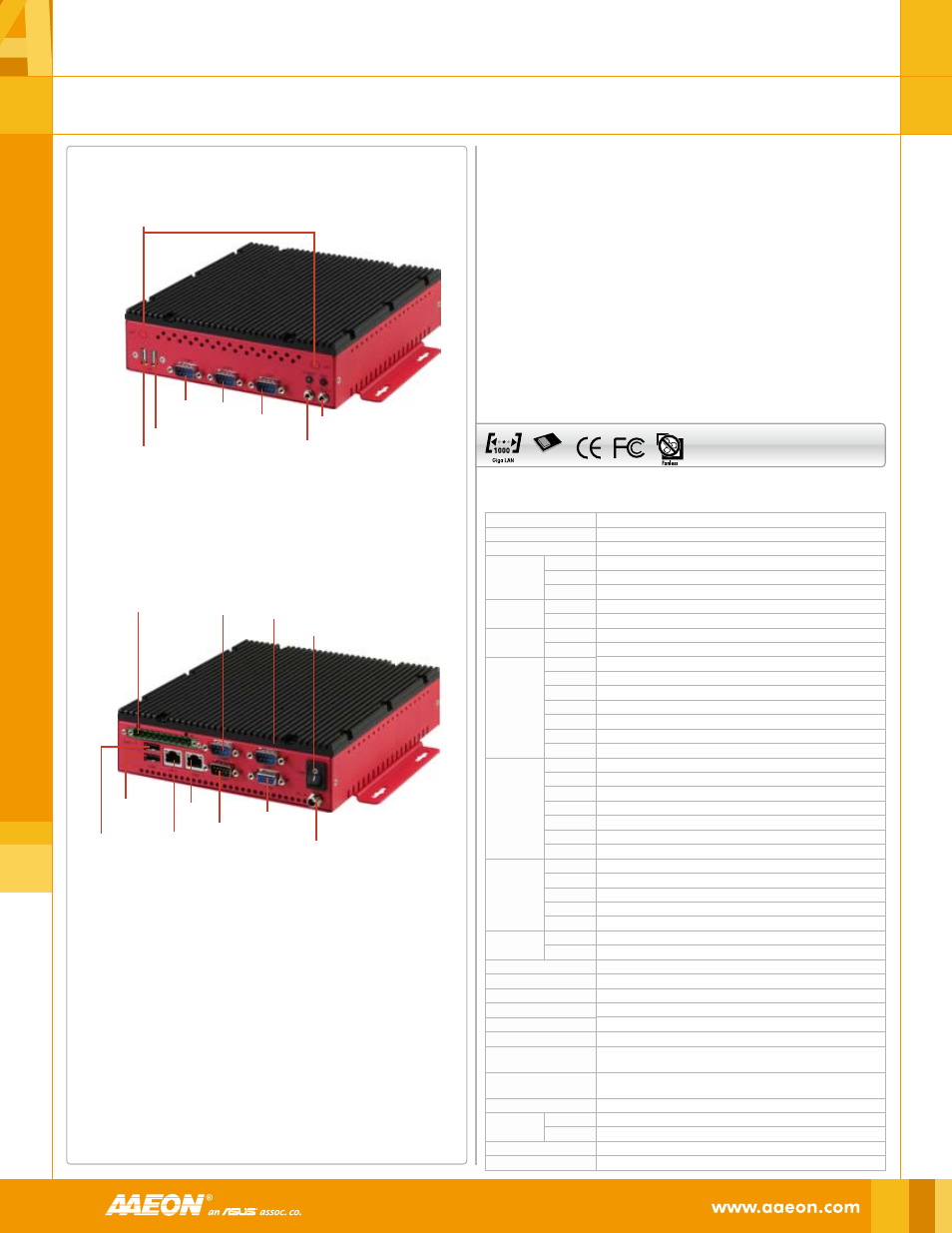

Front View
Rear View
COM 6
