Ordering Information
Part No. Description
TANK-GM45A-R10/P8600/2GB
Extend temperture fanless embedded system with Intel® Core™2 Duo P8600 2.4 GHz 3MB L2 cache and GM45 chipset, with 2GB DDR2 memory,
12VDC, -20ºC~70ºC,RoHS
TANK-GM45A-R10/CM575/2GB
Extend temperture fanless embedded system with Intel® Celeron® M 575 2.0 GHz 1MB L2 cache and GM45 chipset, with 2GB DDR2 memory,
12VDC, -20ºC~70ºC, RoHS
63000-FSP060DBAB1554-RS POWER ADAPTER; FSP060-DBAB1554; VAC:90V~264V; 12V/ 60W with ERP and PSE certificates
63000-FSP096AHB-RS POWER ADAPTER; FSP096-AHB; VAC:90V~264V; 12V/ 96W with ERP and PSE certificates
32000-000002-RS 17.5cm European Standard Power Cord
32000-000025-RS 18.3cm American Standard Power Cord
32000-133200-RS PS2 KB/MS Y Cable
IFD-2510WT-XXXXX iFD 2.5" SATA 3.0 2510WT SLC SSD Wide Temp. Grade -40ºC~85ºC (8GB~128GB)
IFD-2500RW-XXXXX iFD 2.5" SATA 3.0 2500RW SLC SSD Wide Temp. Grade -40ºC~85ºC (1GB~32GB)
IFD-2000JW-XXXXX iFD 2.5" SATA 3.0 2000JW SLC SSD Wide Temp. Grade -40ºC~85ºC (8GB~128GB)
XXXXX=Capacity

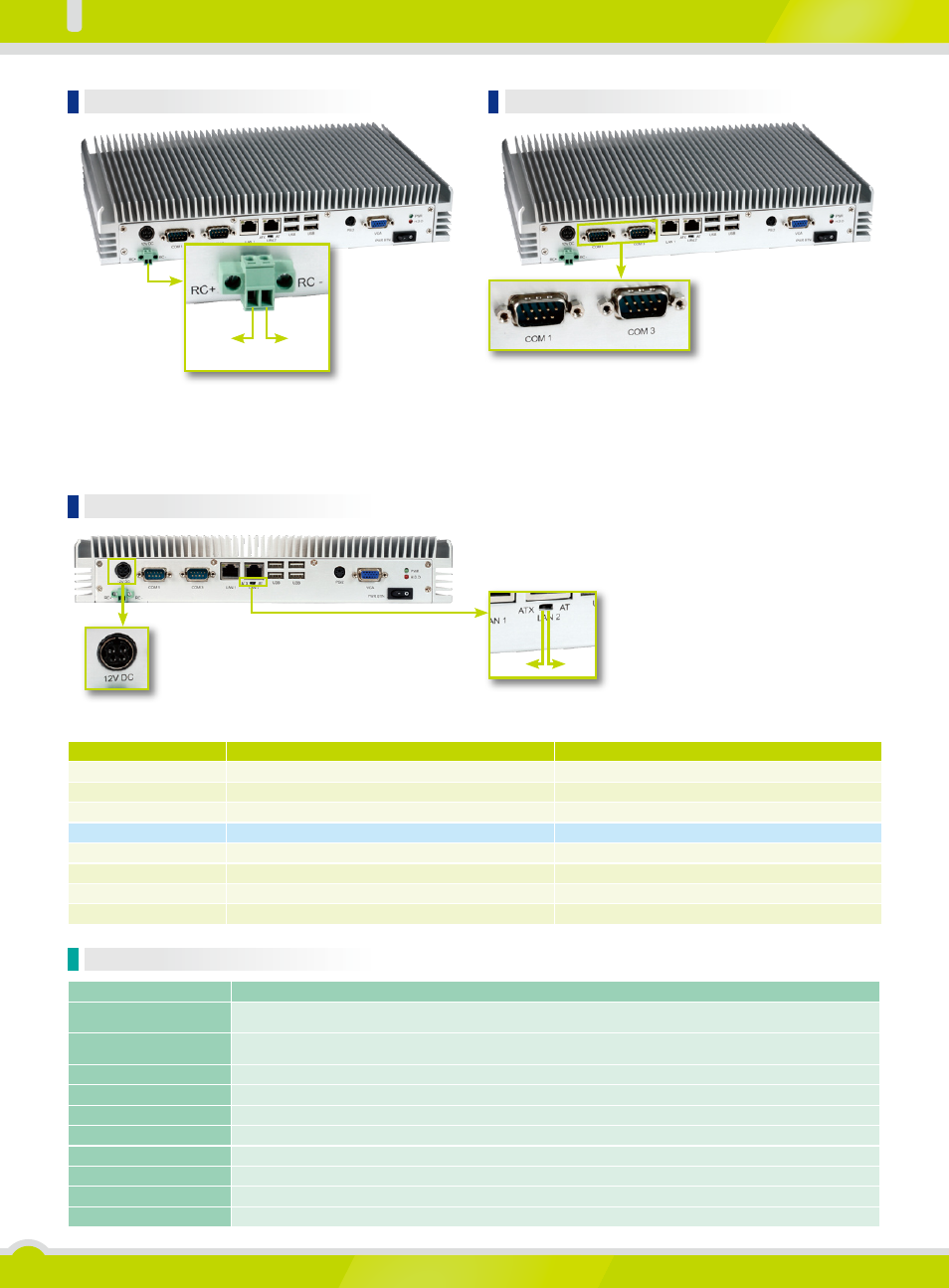

Remote Control
The GPIO terminal block connects to a remote control device. Users
can control the system power on/off by inputting high or low voltage
into the terminal block.
Turn off the system: more than 1 V input
Turn on the system: less than 0.5 V input
RC+ RC-
DIO GND
DIO Signal
High: Turn off
Low: Turn on
Isolated Serial Port
COM1: Isolated RS232
COM3: Isolated RS422
(optional for RS485)
IEI TANK-GM45A provides
1. On board +15KV ESD protection
2. Isolated 1200VDC protection
An integrated circuit (IC) connected to external ports is susceptible
to damaging electrostatic discharge (ESD) pulses form the operating
environment and peripherals.
Additional protection can violate stringent signaling requirements,
leaving design engineers with the need to balance performance and
reliability.
AT/ATX Mode
Single 12V Power Input
The TANK-GM45A supports 12VDC power with
4 pin DC
ATX AT
AT/ATX Mode by external switch
The TANK-GM45A supports AT and ATX power
modes. The setting can be made through
the AT/ATX switch on the external peripheral
interface panel
Power Adapter 63000-FSP060DBAB1554-RS 63000-FSP096AHB-RS
Output Current 12V@5A, 60W 12V@8A, 96W
Output Voltage 11.4V~12.6V 11.4V~12.6V
Input Voltage 115V ~ 230V, 90V(Min) ~ 264V(Max) 110V ~ 240V, 90V(Min) ~ 264V(Max)
Operating Temp. 0 to 40ºC 0 to 40ºC
Storage Temp. -20 to 65ºC -20 to 80ºC
Energy Efficiency 87% minimum 80% minimum
MTBF (25ºC) > 60000 hours >100000 hours
Dimension 110mm x 62mm x 31.5mm 167mm x 65mm x 37mm
█ Optional 12VDC Adapter
TA N K - G M 4 5 A - V 1 0
