Overview
Embedded
Systems
Embedded
Systems for
Transportation
Embedded
Field
Controllers
Embedded
MicroBoxes
Industrial
Barebone
Systems
Industrial
Chassis
Backplanes
Power
Supplies
Peripherals &
Accessories
© 2013 Axiomtek Co., Ltd. All rights reserved.
Storage Supports 1 x CompactFlash TM
Supports 1 x SD card up to 32 GB (optional)
Installation Din-rail, wall mount
Power Supply 2 power paths
Power Input Range 12-48VDC
Power Protection
DC Version:
OVP (over voltage protection)
UVP (under voltage protection)
Reverse protection
Power
Consumption (COM
port link up)
With no load on 2 USB ports:
1.05A @ 12V, 12.6W
0.53A @ 24V, 12.72W
0.36A @ 36V, 12.96W
0.28A @ 48V, 13.44W
With full load on 2 USB ports:
1.48A @ 12V, 17.76W
0.74A @ 24V, 17.76W
0.50A @ 36V, 18W
0.38A @ 48V, 18.24W
Operating Temperature -40°C ~ +70°C (-40°C ~ +158°C)
Storage Temperature -45°C ~ +85°C (-49°C ~ +185°C)
Humidity 5% ~ 95%
Weight (net/gross) 1.9 kg (4.18 lb)/ 2.24 kg (4.93 lb)
Dimensions 100.6 mm (3.96") (W) x 110 mm (4.33") (D) x 135 mm (5.31")
(H)
EOS Support XPE, WinCE, Linux, Windows ® 7 Embedded
ISO Manufactured in an ISO9001 facility
Anti-Explosive ATEX Anti-Explosive Type "ic" Zone 2 Group II Certification
Safety
Compliance
UL508, UL60950-1
Heavy Industrial CE, including:
EN60950-1, IEC60950-1
EMI
Compliance
FCC Part 18
Heavy Industrial CE, including:
EN61000-6-4, EN61000-3-2, EN61000-3-3
EMS
Compliance
EN50121-4 (Railway application)
Heavy Industrial CE, including:
EN61000-6-2
EN61000-4-2 (ESD standards)
* Contact: +/- 6 KV; criteria B
* Air: +/- 8 KV; criteria B
EN61000-4-3 (radiated RFI standards)
* 10V/m, 80 to 1000 MHz; 80% AM criteria A
Specifications
Ordering Information

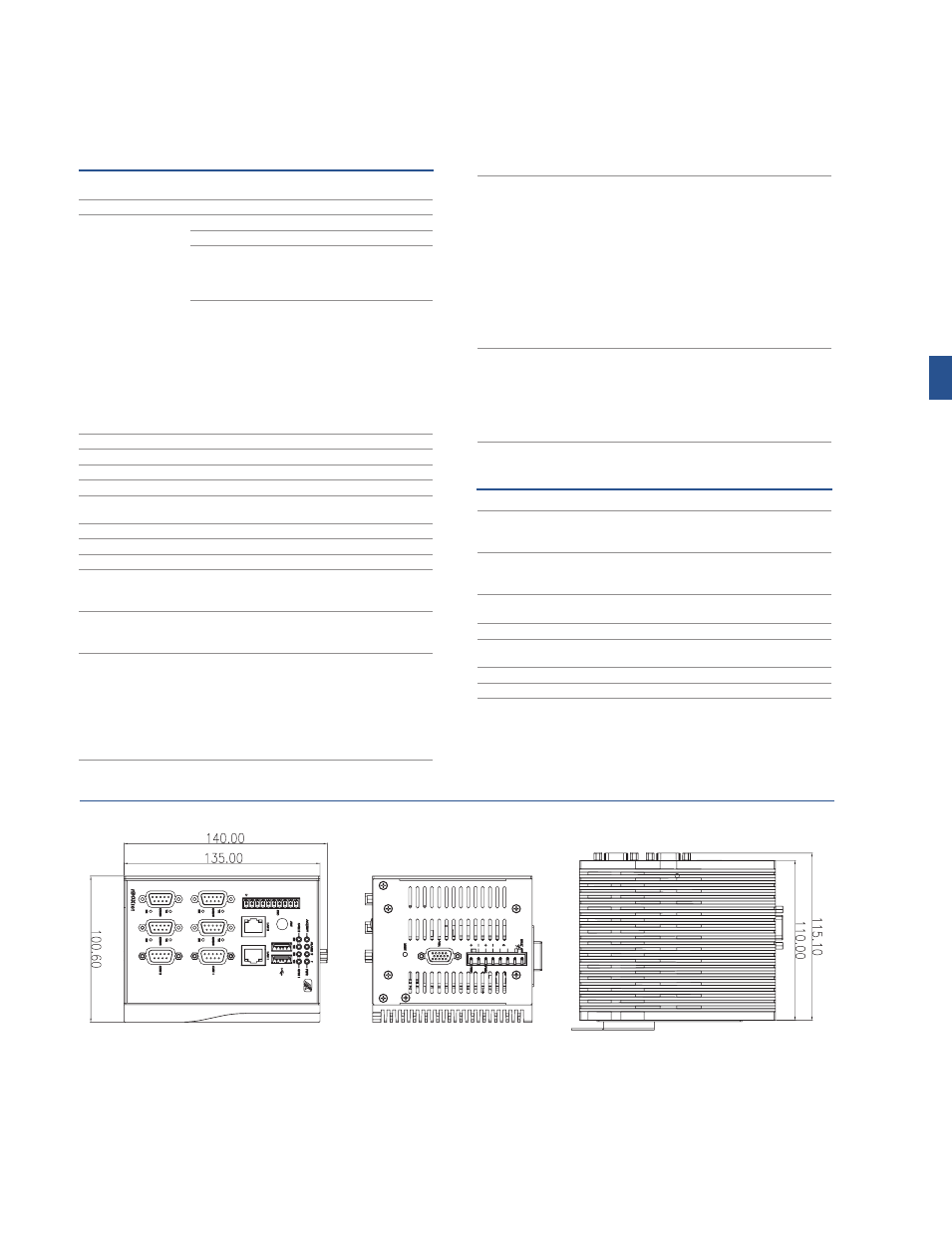

Dimensions
Standard
rBOX101-6COM (ATEX)-
FL1.1G
ATEX Anti-Explosive Certified robust din-rail fanless
embedded system with Intel ® Atom TM processor Z510PT
1.1 GHz, ATEX and 6 isolated COM ports (-40°C ~ +70°C)
rBOX101-6COM (ATEX)-
FL1.33G
ATEX Anti-Explosive Certified robust din-rail fanless
embedded system with Intel ® Atom TM processor Z520PT
1.33 GHz and 6 isolated COM ports (-40°C +70°C)
Optional
DDR2 SODIMM
1 GB ~ 2 GB (with W.T. memory)
DDR2 SODIMM 1 GB ~ 2 GB (with 0°C ~ +85°C memory; operating
temperature: 0°C ~ +70°C)
CompactFlash 2 GB or above (with W.T. CF)
Wall mount kit
*Specifications and certifications are based on options and may vary.
EN61000-4-4 (burst standards)
* Signal ports: +/- 2 KV; criteria B
* DC power ports: +/- 2 KV; criteria B
EN61000-4-5 (surge standards)
* Signal ports: +/- 1 KV; line-to-line; criteria B
* DC power ports: +/- 0.5 KV; line-to-earth; criteria B
EN61000-4-6 (induced RFI standards)
* Signal ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
* DC power ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
EN61000-4-8 (magnetic field standards)
* 30 A/m @ 50, 60 Hz; criteria A
Environmental Test
Compliance
IEC60068-2-6 Fc (vibration resistance)
5 g @ 10 ~ 150 Hz, amplitude 0.35 mm (operation/storage/
transport)
IEC60068-2-27 Ea (shock) 25 g @ 11 ms (half-sine shock
pulse; operation); 50 g @ 11 ms (half-sine shock pulse;
storage/transport)
IEC60068-2-32 Ed (free fall) 1 M (3.281ft)
