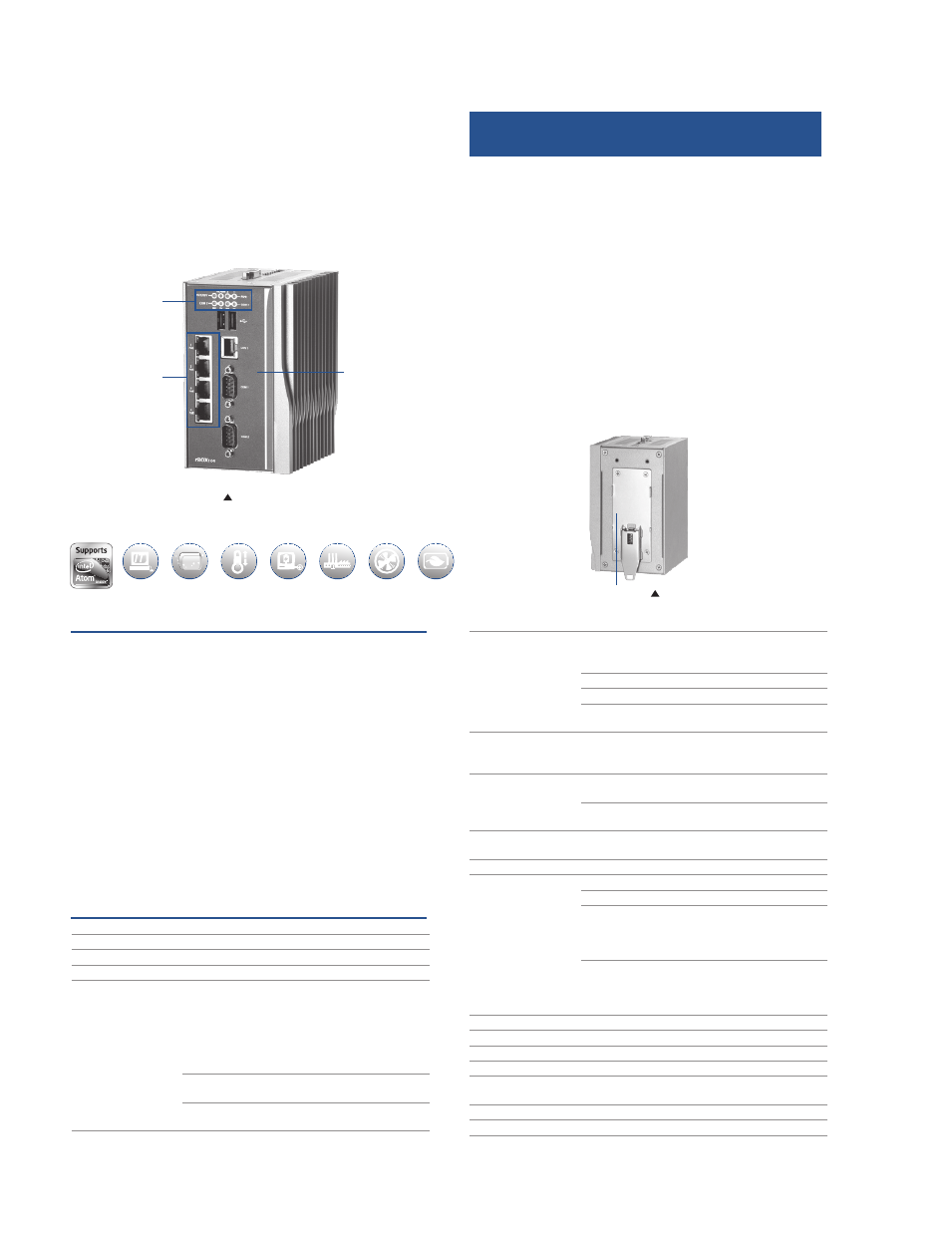

Din-rail kit Rear view
rBOX104
Robust Din-rail Fanless Embedded System
with Intel ® Atom™ Processor Z510PT/
Z520PT up to 1.33 GHz, Intel ® US15WPT
Chipset and 4-port PoE ● Fanless and cableless design
● Supports Intel ® Atom™ processor Z510PT 1.1 GHz or Z520PT
1.33 GHz
● Wide temperature operation of -40°C ~ +70°C
● 4-port IEEE802.3af Power over Ethernet (PoE) Power Sourcing
Equipment (PSE)
● 1 isolated 10/100/1000Mbps Ethernet
● 2 watchdog timer
● LED indicators
● SNMP V1/V2c
● Supports 1 CompactFlash™, 1 SD card (optional)
● 2 power paths with terminal block and 48VDC
● Supports AXView monitoring software package
Introduction
Specifications
rBOX104 din-rail fanless embedded field controller supports extra low power Intel ®
Atom™ processors Z510PT and Z520PT with extended temperature range of -40°C to
70°C for use in extreme operating environments.
The fanless design increases reliability, extends MTTR, and ultimately reduces
maintenance efforts. Front accessible I/O cabling is very convenient for wiring and
maintenance. The rBOX104 Din-rail computer features a redundant Ethernet LAN
connection for greater availability and reliability. Supporting Power-over-Ethernet on
ports 1 to 4, the rBOX104 Din-rail computer can power IEEE802.3af compliant devices and
transmit data simultaneously, which helps save wiring costs and makes it ideally suited
for outdoor applications such as PoE IP camera, PoE Access Point and intercoms. Two
power paths input minimize the risk of data loss in the event of a single power failure.
The rBOX104 Din-rail computer meets Safety Agency requirements and has passed heavy
industrial EMI/EMS testing.
The ready-to-run rBOX104 equipped with AXView monitoring software is a total solution
for intelligent transportation systems, power plant automation, intelligent transportation
systems, facility monitoring systems, IP video surveillance, APs, intercoms, and more.
Standard Color Sliver-Black
Construction Extruded aluminum and heary-duty steel, IP30
CPU Intel ® Atom™ processor Z510PT 1.1 GHz or Z520PT 1.33 GHz
System Memory 1 x 200-pin DDR2 SO-DIMM max. up to 2 GB
System I/O Outlet Serial Port 2 x RS-232/422/485 (COM 1/2) (isolated
COM as option)
Interface select by software or BIOS
Supports Auto Flow Control in RS-485
mode
ESD protection 15 KV
Serial port speed up to 115.2kbps
LAN 1 x 10/100/1000Mbps Ethernet
Magnetic isolation protection 1.5 KV
PoE 4 x PoE (IEEE802.3af)
Magnetic isolation protection 1.5 KV
System I/O Outlet USB 2 x USB2.0
USB power distribution control by
software
VGA 1 x DB15 connector
Power Input 2 x DC power input with terminal block
Alarm Contact One relay output with current 0.5A
@30VDC
Watchdog Timer 2 WDT
WDT 1: one step is 1 sec, 255 levels
WDT 2: one step is 250ms, 255 levels
LEDs System Power, Alarm, Ready/Active,
COM(TXD,RXD)
Alarm DC PWR1 or PWR2 is lost (default)
User define event
Storage Supports 1 x CompactFlash™
Supports 1 x SD card up to 32 GB (optional)
Installation Din-rail, wall mount
Power Supply 2 power paths
Power Input Range 48VDC
Power Protection
DC Version:
OVP (over voltage protection)
UVP (under voltage protection)
Reverse protection
Power Consumption
(PoE port link up)
With no load on 2 USB ports:
1.70A @ 48V, 81.6W
With full load on 2 USB ports:
1.81A @ 48V, 86.88W
Operating Temperature -40°C ~ +70°C (-40°F ~ +158°F)
Storage Temperature -45°C ~ +85°C (-49°F ~ +185°F)
Humidity 5% ~ 95%
Weight (net/gross) 1.38 kg (3 lb)/1.72 kg (3.78 lb)
Dimensions 81 mm (3.18") (W) x 110 mm (4.33") (D)
x 135 mm (5.31") (H)
EOS Support XPE, WinCE, Linux, Windows ® 7 Embedded
ISO Manufactured in an ISO9001 facility
Features
Extended
Temperature
IP30 UL508 Fanless Low Power PoE EN60950-1
LED indicators (power,
alarm, ready/active, COM)
4-port IEEE 802.3 af of
PoE, PSE
Front view
Intel ® Atom™ processor
Z510 PT/ Z520PT
