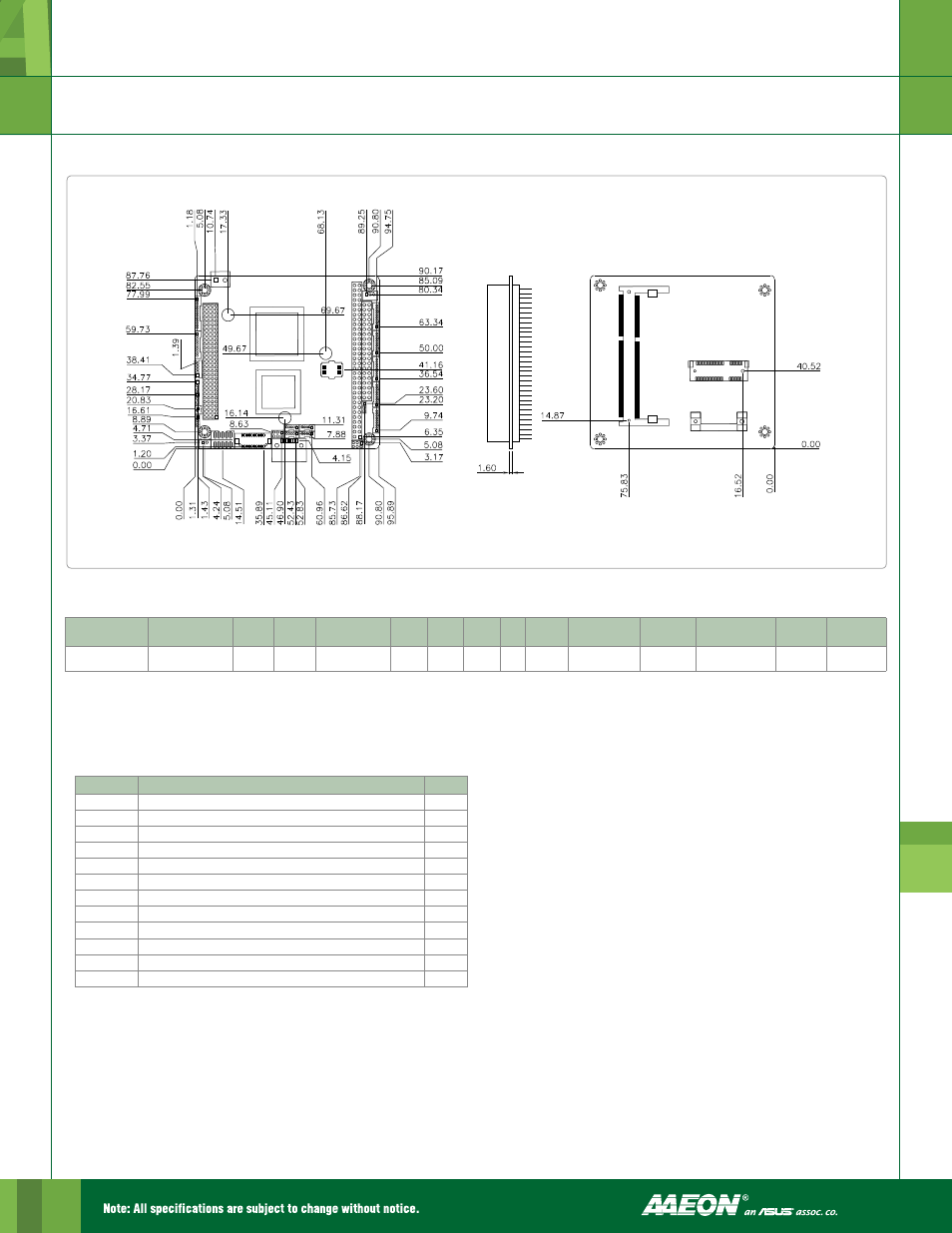

Dimension
Unit: mm
PFM-CVS
Part Number
CPU
RAM
Fan/
Fanless
Storage
Display
LVDS
LAN
USB
RS-232
RS-232/422/485
Parallel
Expansion Slot
Power
Temp.
TF-PFM-CVS-A10-10
Intel® Atom™ N2600
SODIMM
Fanless
SATA x 1,
mSATA x 1 (Half size)
CRT +
LVDS
18-bit,
1CH
GbE x 1
4
3
1
—
PC/104+
+12V, AT/ATX
0°C ~ 60°C
Part Number
Quantity
1702002010
(TF)Power Cable, 1 x 2P Pitch=5.0mm Housing, 10cm (12V only)
1
1709150151
(TF)CRT Cable, 1 x 13P Pitch=1.25mm Housing,15cm
1
1701010150
(TF)FLAT Cable, 1 x 10P Pitch=1.25mm Housing, 15cm
1
1700100201
(TF)LAN Cable, RJ45 10P 2.0mm Housing, 20cm
1
1705050153
(TF)Inverter Cable, 1 x 5P Pitch=1.5mm Housing, 15cm
1
1700050207
(TF)USB Cable, 1 x 5P Pitch=1.25mm Housing, 20cm
4
1701090150
(TF)Flat Cable, D-Sub 9(M), 9P Housing, 9P 1.25mm pitch Housing, 15cm
4
1709070500
(TF)SATA Cable, 7P Pitch 1.27mm, 50cm
1
1702150155
(TF)Power Cable, 15P SATA (F), 2P 2.0mm Housing (PH), 15cm
1
1701010150
(TF)Flat Cable, 1 x 10P Pitch=1.25mm Housing, 15cm
1
1701100155
(TF)Flat Cable, Front Panel 10P, Pitch=1.25mm Housing, 15cm
1
1703020156
(TF)Buzzer Cable, 2P, Pitch=1.25mm Housing, 15cm
1
9681CVS000
•
(TF) Cable Kit for PFM-CVS-A10-10
Cable Kit
