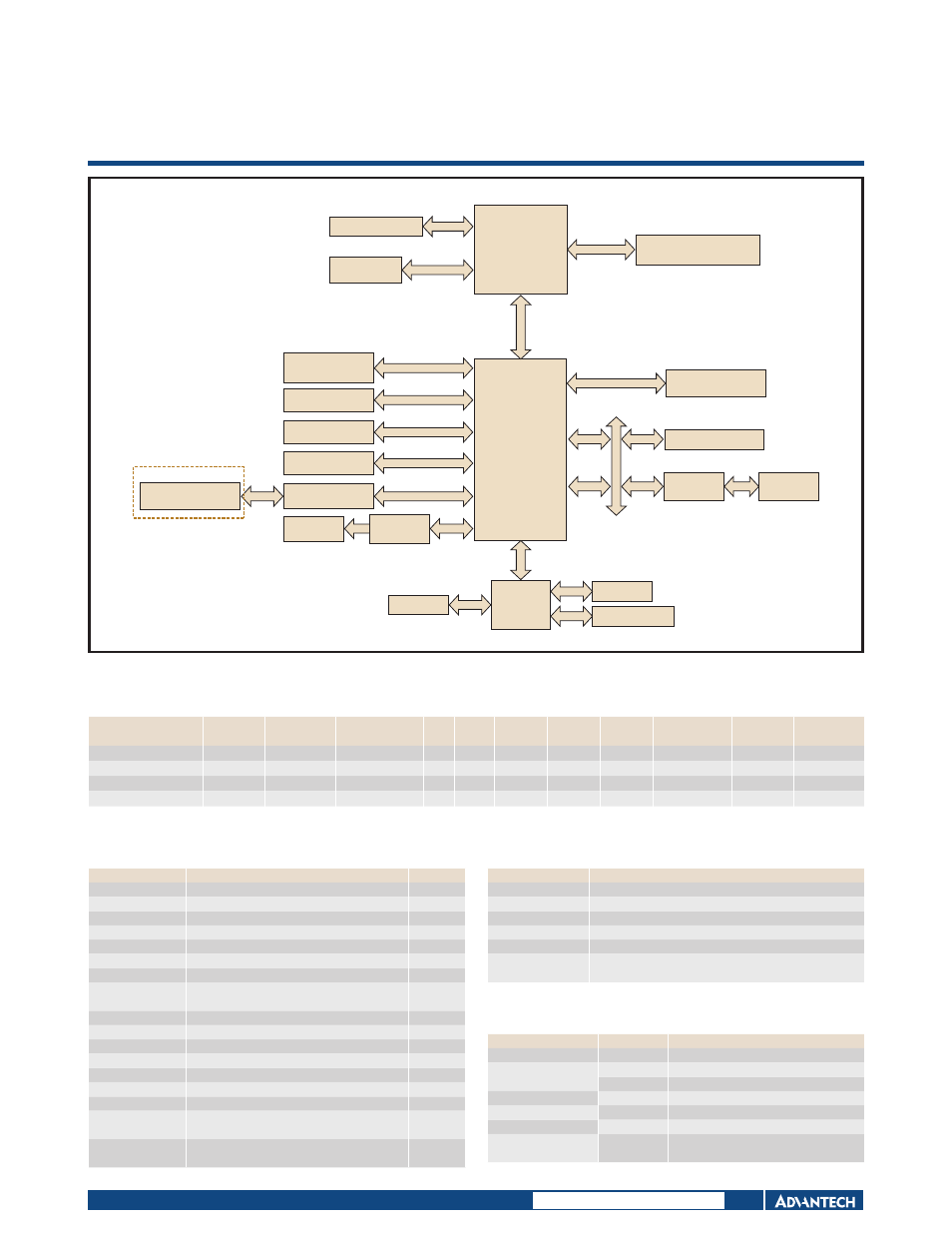

Board Diagram
PCM-3362
Ordering Information
Part No. CPU Memory On board flash CRT LVDS Gigabit
Ethernet USB 2.0 RS-232
RS-422/485
Thermal
Solution
Operating
Temp.
PCM-3362N-S6A1E Atom N450 SODIMM 2 GB Yes 18-bit 1 4 2 1 Passive 0 ~ 60° C
PCM-3362N-S6F4A1E Atom N450 SODIMM 4 GB Yes 18-bit 1 4 2 1 Passive 0 ~ 60° C
PCM-3362Z-1GS6A1E Atom N450 1 GB bundle 2 GB Yes 18-bit 1 4 2 1 Passive -20 ~ 80° C
PCM-3362Z2-1GS6A1E Atom N450 1 GB bundle 2 GB Yes 18-bit 1 4 2 1 Passive -40 ~ 85° C
Note: Wide temp version has been bundled with extended temperature grade memory module
Packing List
Part No. Description Quantity
PCM-3362 SBC
Startup Manual
Utility CD
1700000898 VGA cable D-SUB 15P(F)/12P-1.25 mm15 cm 1
1700003491 AT power cable 1 x 8P-2.0/B4P-5.08 x 2 15 cm 1
1700060202 Cable 6P-6P-6P PS/2 KB & Mouse 20 cm 1
1703040157 RS-422/485 W/D-SUB COM 4P 15 cm 1
1703060053
PS2 Cable 6P (MINI-DIN)-6P (Wafer 2.0 mm)
6 cm
1
1700002332 ATX power cable 20P-13P/8P/3P/3P 13 cm 1
1703100260 USB cable 2port 2.0 mm pitch w/ bracket 26 cm 1
1700071000 SATA data cable 7p 100 cm 1
1703150102 SATA power cable B4P-5.08/SATA 15P 10 cm 1
1701200220 RS-232 x 2 ports 2.0 mm 22 cm 1
1700017863 LAN cable RJ-45/2 x 5P-2.0 15 cm 1
9660104000 PC/104 screw and copper post package 1
1960045487T001
Heatsink for PCM-3362
(79.66 x 77.97 x 12.22 mm)
1
1960045487T001
Heatsink for PCM-3362Z series only
(79.66 x 77.97 x 17.22 mm)
1
Optional Accessories
Part No. Description
1960047106T001 Heat spreader (79.66 x 77.98 x 10.32 mm) of PCM-3362
1653130421 PCI-104 connector 120pin (Long pin)
165313222B PC/104 connector 64-pin (Long pin)
165312022B PC/104 connector 40-pin (Long pin)
PCA-AUDIO-HDA1E Audio extension module with bracket
1700018427
Audio cable connecting PCM-3362 and PCA-AUDIO-
HDA1E
Embedded OS/API
Embedded OS/API Part No. Description
WinCE 2070009692 WinCE 6.0 Pro for PCM-3362 V1.3 ENG
Win XPE
2070009030 XPE WES2009 Luna Pier V4.0 ENG
2070009031 XPE WES2009 Luna Pier V4.0 MUI24
QNX V6.5
Linux Ubuntu 10.04
VxWorks V6.8
Software API 205E362000
SUSI 3.0 SW API for PCM-3362
B:20091015 XP
Intel Atom N450
Intel ICH 8 M
Single Channel
CRT connector
LVDS
connector
Onboard
Flash 2 GB
Intel 82567V
(PHY)
Audio extension
module
PCI-104 connector
PCI to ISA
bridge
PC/104
Connector
VGA
18-bit LVDS
DDRII 667 SODIMM
200-pin up to 2 GB
x 4 DMI
PATA
GLCI/PCIe x1
ISA
Super IO
SCH3114
PS2 KB/MS
2 RS-232
1 RS-422/485
PCI bus
1 SATA Ports 300 MB/s
4 USB Ports USB 2.0
BIOS SPI
Audio pin
header
HD Audio
8-bit GPIO PCA9555 SMbus
LPC
Optional
