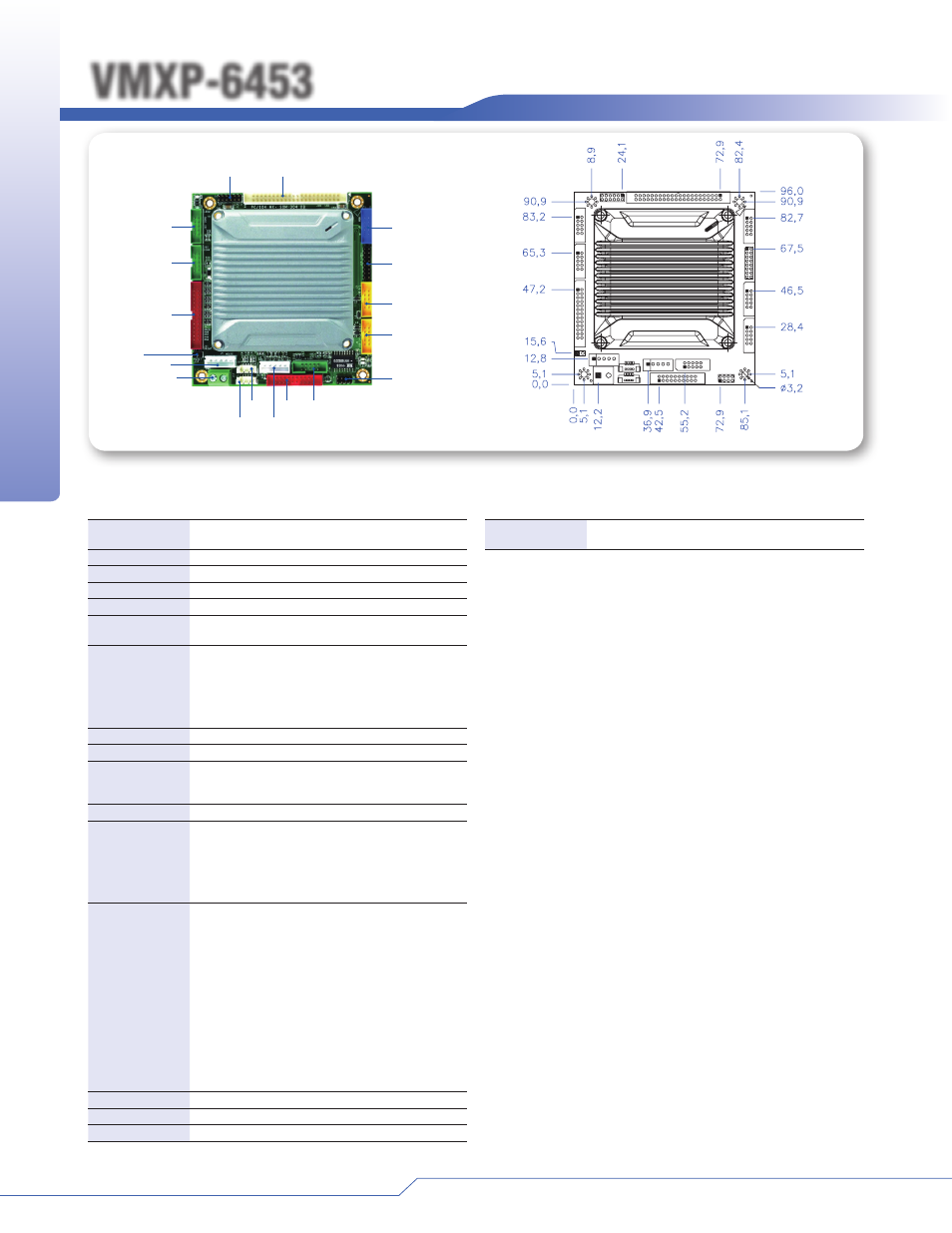

VMXP-6453

1GB/3S/4USB/VGA/LCD/LVDS/AUDIO/LAN/

GPIO/CF/PWMx16

Specifications

SoC

DM&P SoC CPU Vortex86MX+ 800MHz

Real Time Clock with Lithium Battery Backup

Cache

L1:16K I-Cache, 16K D-Cache L2 Cache 256KB

Bus

LPC (Optional)

BIOS

AMI BIOS

System Memory

512MB / 1GB DDR2 Onboard

Watchdog Timer

Software programmable from 30.5µ sec.to 512 sec. x 2

sets (Watchdog 1 fully compatible with M6117D)

VGA & LCD

Integrated 2D VGA chip

VGA and TFT/LVDS Flat Panel Interface Support (Either

VGA or LCD)

Share system memory 16MB/32MB,

Mono, DSTN, STN, TFT Flat Panel interface support &

resolution up to 1280x1024, 16M colors

LAN

Integrated 10/100Mbps Ethernet

Audio

ALC 262 (HD Audio)

Flash Disk Support Onboard SST Flash Disk (512MB/1GB/2GB/4GB are

Optional)

Compact Flash Type I/II

PWM

16~24 Channels

I/O Interface

RS-232 port x2

RS-232/422/485 port x1

USB port (Ver2.0) x4

Parallel port x1

16-bit GPIO port x1

10/100Mbps Ethernet port x1

Connectors

2.0mm 44-pin box header for LCD x1

2.0mm 26-pin box header for Printer x1

2.0mm 20-pin box header for 16-bit GPIO x1

2.0mm 16-pin header for LVDS x1

2.0mm 12-pin header for LPC x1 (Optional)

2.0mm 10-pin box header for VGA x1

2.0mm 10-pin box header for USB x2

2.0mm 10-pin box header for RS-232 x3

2.0mm 8-pin header for Ethernet x1

2.54mm 5-pin box header for Keyboard x1

2.54mm 5-pin box header for Mouse x1

2.54mm 2-pin header for Reset x1

1.25mm 4-pin wafer for Line-out/MIC-in x2

Type I/II Compact Flash Slot x1

Power Requirement Single Voltage +5V @ 920mA (with 2GB NAND Flash)
Weight

150g

Board Size

90 x 96mm (3.54 x 3.77 inches)

Operating

Temperature

-20°C ~ +70°C (Optional)

Packing List

• VMXP-6453

• Cable

PRINT (2.0) x1

VGA (2.0) x1

RS-232 (2.0) x3

USB (2.0) x2

NET 4 x 2 (2.0) x1

GPIO (2.0) x1

PS2 KB White x2

Audio Line x2

• Screw Kit x1

Ordering information

VMXP-6453-4NS1 Vortex86MX+ PC/104 CPU Module w/1GB DDR2

VMXP-6453-4DS1 Vortex86MX+ PC/104 CPU Module w/NAND Flash

2GB, 1GB DDR2

VMXP-6453-4ES1 Vortex86MX+ PC/104 CPU Module w/NAND Flash

4GB, 1GB DDR2

Unit: mm

LCD Connector

LPC

VGA

USB x2

USB x2

LVDS

LAN

COM1

RS-232/422/485

GPIO

MIC-IN

PS/2KBD

LINE-OUT

PS/2 Mouse

Power Connector

Reset

Parallel Port

COM4

COM3

0°C ~ +60°C
