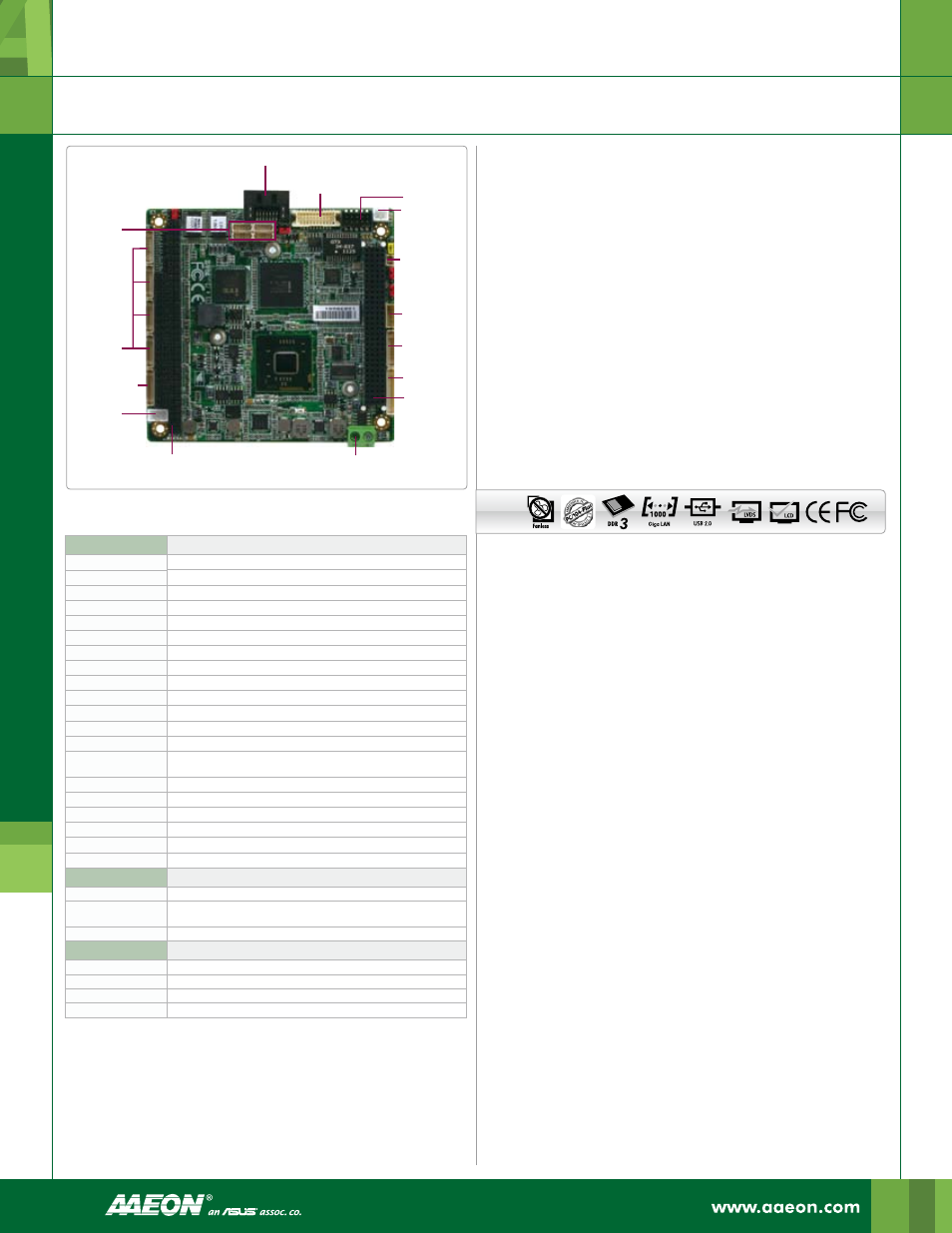

PC/104 + Module with Intel® Atom™ N2600 Processor
System
Form Factor PC/104
Processor Intel® Atom™ N2600 1.6GHz Processor
System Memory DDR3 800/1066MHz SODIMM x 1, Max. 2 GB
Chipset Intel® Atom™ N2600 + NM10
I/O Chipset FinTech F81866D
Ethernet Realtek RTL8111E, 10/100/1000Base-TX x 1
BIOS AMI BIOS – 32MB ROM
Wake on LAN Yes
Watchdog Timer Generates a time-out system reset
H/W Status Monitoring Supports power supply voltage and temperature monitoring
Expansion Interface PC/104+, mSATA/ Mini Card (optional) (for Half Size)
Battery Lithium battery
Power Requirement +12V, AT (Default)/ATX
Power Consumption
(Typical) Intel® Atom™ N2600, 1.6 GHz, DDR3 1066 2GB
1.2A@+12V
Board Size 3.55" x 3.77" (90mm x 96mm)
Gross Weight 0.35 lb (0.16 kg)
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C )
Storage Temperature -40°F ~185°F (-40°C ~ 85°C )
Operating Humidity 0%~90% relative humidity, non-condensing
MTBF (Hours) 70,000
Display
Supports CRT/LCD simultaneous/dual view displays
Chipset Intel® Atom™ N2600 Processor integrated graphic
Resolutions
Up to 1920 x 1200 @ 60Hz for for VGA
Up to 1366 x 768 (18-bit)@ 60Hz for LVDS
LCD Interface 18-bit, single channel LVDS
I/O
Storage SATA 3.0Gb/s x 1, Half-Size mSATA x 1
Serial Port RS-232 x 3, RS-232/422/485 x 1
Universal Serial Bus USB 2.0 x 4
Digital I/O 8-bit Digital I/O (Programmable)
Intel® Atom™ N2600 Dual Core 1.6GHz Processor ■ ■
Intel® Atom™ N2600 + NM10 ■ ■
204-pin DDR3 800/1066MHz SODIMM x 1, Max. 2GB ■ ■
10/100/1000Base-TX Ethernet x 1 ■ ■
CRT, 18-bit Single Channel LVDS LCD ■ ■
SATA 3.0Gb/s x 1 ■ ■
USB2.0 x 4, COM x 4 ■ ■
PC/104 ■ ■ + Slot, Half-Size mSATA x 1/ Mini Card (Optional)
+12V Only Operation ■ ■
AAEON Hi-Safe SDK/Utility Supported ■ ■
SATA 3.0Gb/s x 1
LVDS
LAN
Backlight
Inverter
8-bit DIO
CRT
PCI-104
Power PC/104
Fan
Front Panel
(Including Buzzer)
COM x 4
USB x 4
Battery
SATA Power
