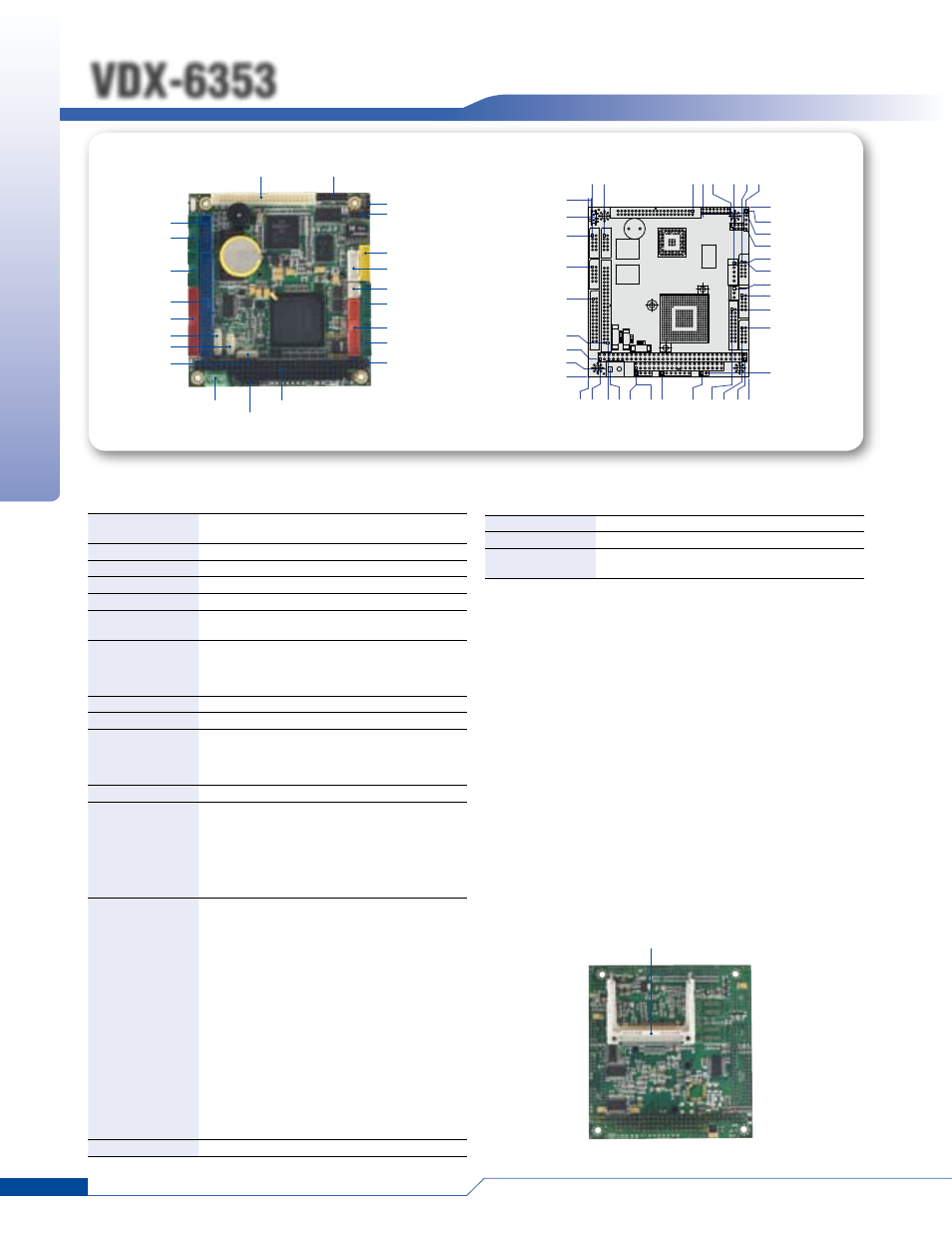

VDX-6353
256MB/4S/2USB/VGA/LCD/LVDS/LAN/
GPIO/CF/PWMx16
Specifications
SoC DM&P SoC CPU Vortex86DX- 800MHz
Real Time Clock with Lithium Battery Backup
Cache L1:16K I-Cache, 16K D-Cache L2 Cache 128KB
Bus PC/104 standard compliant
BIOS AMI BIOS
System Memory 256/512MB DDR2 Onboard
Watchdog Timer Software programmable from 30.5µ sec.to 512 sec. x 2
sets (Watchdog 1 fully compatible with M6117D)
VGA XGI Volari Z9s Chipset
VGA and TFT/LVDS Flat Panel Interface Support
Onboard 32MB VGA Memory, support resolution up to
1280 x 1024, 16M colors
LAN Integrated 10/100Mbps Ethernet
Audio CM119 USB audio controller (Optional)
Flash Disk Support Onboard 4MB SPI Flash Disk
MSTI EmbedDisk Module (16MB and above)
Compact Flash Type I/II
44-pin IDE to Micro SD (Optional)
PWM 16~24 Channels
I/O Interface Enhanced IDE port (UltraDMA-100/66/33) x1
RS-232 port x3
RS-232/422/485 port x1
USB port (Ver2.0) x2
Parallel port x1
16-bit GPIO port x1
10/100Mbps Ethernet port x1
Connectors 2.0mm 44-pin box header for IDE x1
2.0mm 44-pin box header for LCD x1
2.0mm 26-pin box header for Printer x1
2.0mm 20-pin box header for 16-bit GPIO x1
2.0mm 16-pin header for LVDS x1
2.0mm 10-pin box header for VGA x1
2.0mm 10-pin box header for USB x1
2.0mm 10-pin box header for RS-232 x4
2.0mm 8-pin header for Ethernet x1
2.54mm 5-pin box header for Keyboard x1
2.54mm 5-pin header for Mouse x1
2.54mm 4-pin header for -5V, -12V +12V, GND x1
2.54mm 3-pin header for RS-485 x1
2.54mm 2-pin header for Reset x1
2.54mm 7-pin header for Redundancy Signal x1 (Optional)
2.54mm 2-pin header for System-Fail-SW x1 (Optional)
1.25mm 6-pin wafer for JTAG x1
1.25mm 4-pin wafer for Line-out/MIC-in x2 (Optional)
Power Requirement Single Voltage +5V @ 580mA
Weight 90g
Board Size 90 x 96mm (3.54 x 3.77 inches)
Operating
Temperature
-20°C ~ +70°C
-40°C ~ +85°C (Optional)
Packing List
• VDX-6353 x1
• CD for User’s Manual & Driver x1
• Cable
HDD 44P (2.0) x1
PRINT (2.0) x1
VGA (2.0) x1
RS-232 (2.0) x4
USB (2.0) x1
NET 4 x 2 (2.0) x1
GPIO (2.0) x1
PS2 KB White x1
PS2 Mouse Black x1
• Screw Kit x1
Ordering information
• VDX-6353 Vortex86DX PC/104 CPU Module with 256MB DDR2
• VDX-6353-512 Vortex86DX PC/104 CPU Module with 512MB DDR2
• VDX-6353-AU Vortex86DX PC/104 CPU Module with 256MB DDR2,
Audio
Unit: mm
0
6.36
10.75 12.2 26.68 26.81 41.4
90.2
88.01 80.66 63.76
2.18 8.65
86.5
58.59 64.5 80.44 82.04 86.3 88.9
0
4.6
10.18
19.5
44.26
62.04
79.82
90.04
1.49
2.31
27.88
38.21
46.04
50.04
64.31
64.83
83.84
92.73
93.73
96
LCD Connector LVDS
Mouse
LAN
USB x2
PS/2 KB
RS-485
COM2
RS-232/422/485
COM1
GPIO
Reset
PC/104
Flexible DC Power Connector
Power Connector
MIC-IN
LINE-OUT
JTAG
Parallel Port
EIDE Interface
COM4
COM3
VGA
Compact Flash Type I/II
VDX-6353
