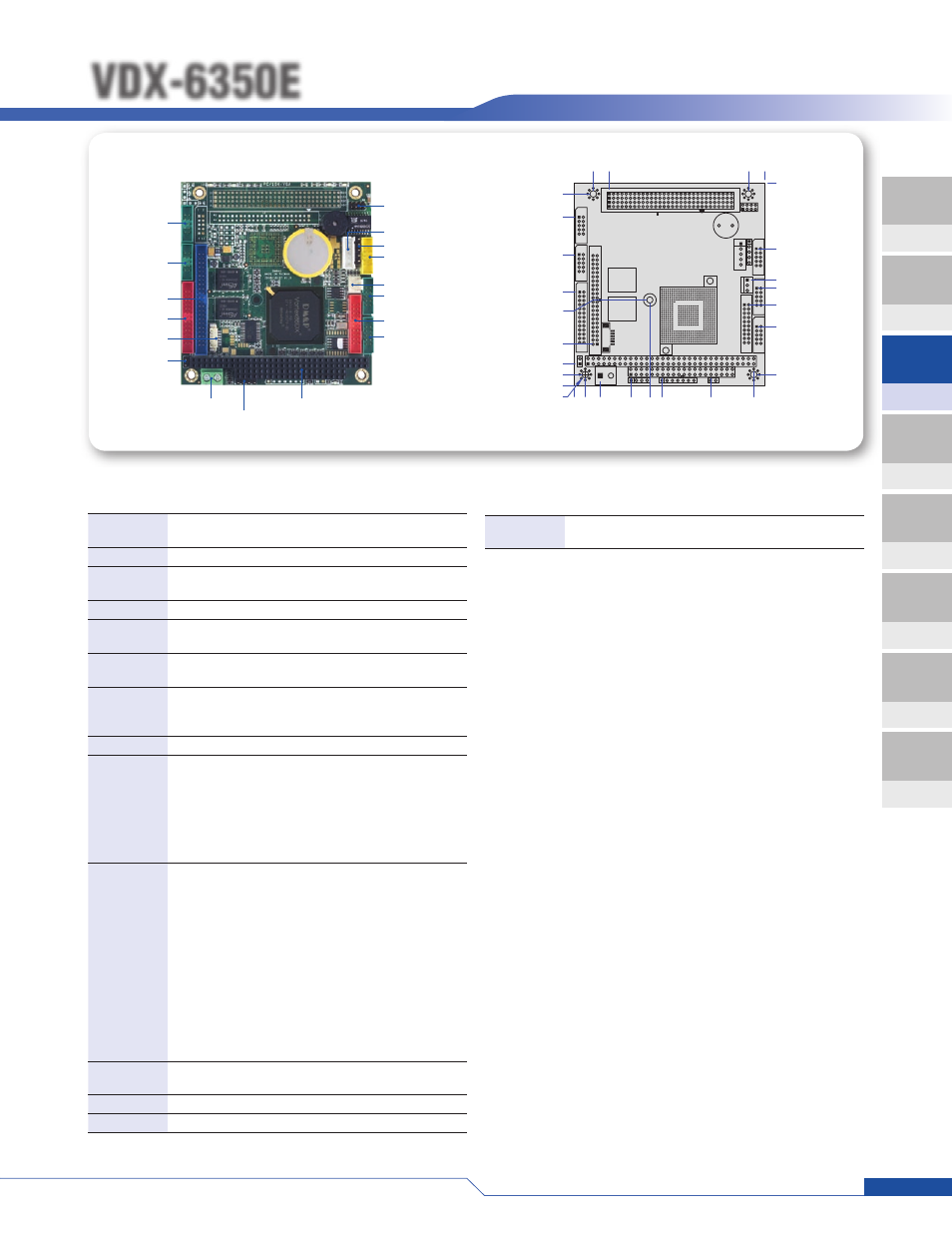

VDX-6350E
256MB/4S/2USB/LAN/GPIO/PWMx16
Specifications
SoC DM&P SoC CPU Vortex86DX- 800MHz
Real Time Clock with Lithium Battery Backup
Cache L1:16K I-Cache, 16K D-Cache L2 Cache 128KB
Bus PC/104 standard compliant
PC-104, PC/104+ (Optional)
BIOS AMI BIOS
System
Memory
256 / 512MB DDR2 Onboard
Watchdog
Timer Software programmable from 30.5µ sec.to 512 sec. x 2
sets (Watchdog 1 fully compatible with M6117D)
Flash Disk
Support Onboard 4MB SPI Flash Disk
MSTI EmbedDisk Module (16MB and above)
44-pin IDE to Micro SD (Optional)
PWM 16~24 Channels
I/O Interface Enhanced IDE port (UltraDMA-100/66/33) x1
RS-232 port x3
RS-232/422/485 port x1
USB port (Ver2.0) x2
Parallel port x1
16-bit GPIO port x1
10/100Mbps Ethernet port x1
Connectors 2.0mm 44-pin box header for IDE x1
2.0mm 26-pin box header for Printer x1
2.0mm 20-pin box header for 16-bit GPIO x1
2.0mm 10-pin box header for USB x1
2.0mm 10-pin box header for RS-232 x4
2.0mm 8-pin header for Ethernet x1
2.54mm 5-pin box header for Keyboard x1
2.54mm 5-pin header for Mouse x1
2.54mm 3-pin header for RS-485 x1
2.54mm 2-pin header for Reset x1
2.54mm 7-pin header for Redundancy Signal x1 (Optional)
2.54mm 2-pin header for System-Fail-SW x1 (Optional)
1.25mm 6-pin wafer for JTAG x1
Power
Requirement Single Voltage +5V @ 520mA
Weight
77g
Board Size 90 x 96mm (3.54 x 3.77 inches)
Operating
Temperature -20°C ~ +70°C
-40°C ~ +85°C (Optional)
Packing List
• VDX-6350E x1
• CD for User’s Manual & Driver x1
• Cable
HDD 44P (2.0) x1
PRINT (2.0) x1
RS-232 (2.0) x4
USB (2.0) x1
GPIO (2.0) x1
PS2 KB White x1
PS2 Mouse Black x1
• Screw Kit x1
Ordering information:
• VDX-6350E Vortex86DX PC/104 CPU Module with 256MB DDR2
• VDX-6350E-PLUS Vortex86DX PC/104+ CPU Module with 256MB DDR2
• VDX-6350E-512 Vortex86DX PC/104 CPU Module with 512MB DDR2
0.0
0.0
5.1
5.1
12.2
10.2
26.8 41.4 64.5 85.1
19.5
44.3
62.0
79.8
90.8
8.9 16.5 82.6 90.2
96.0
64.8
50.0
46.0
38.2
27.9
5.1
40.5
35.8
Ø3.2
Unit: mm
COM3
COM4
EIDE Interface
Parallel Port
JTAG
Reset
Power Connector
Power Flexible DC
Power Connector
PC/104
COM1
GPIO
COM 2
RS-232/422/485
RS-485
USB x2
PS/2 Mouse
PS/2 KBD
LAN
