Intel®Cedar Trail
N2800
NM10
PCIe x1
DVI
DVI-I
CH7511B LVDS
PCIe x1
RJ45
RJ45
1 x RS232/RS422/RS485
COM1
KB/MS
H/W Monitor
LPT
4 x RS232
COM2, 3, 4, 5
PCIe x1
LPC
RTL8111E
RTL8111E
Mini PCIe
TPM
Infineon TPM1.2
SLB9635
(optional)
IT8783F
Super I/O
DMI
1 x DDR3 SO-DIMM
up to 4 GB
USB 2.0
300 MB/s
SPI
SATA
GPIO
HDA
1 x SATA II
SPI BIOS
7 x USB
CFast Card
DIO
Port
12V DC-in
HDA Audio
ALC269
Line-in
Line-out
Mic-in
Speaker-out
WDT
3.5'' SBC - OXY5316A

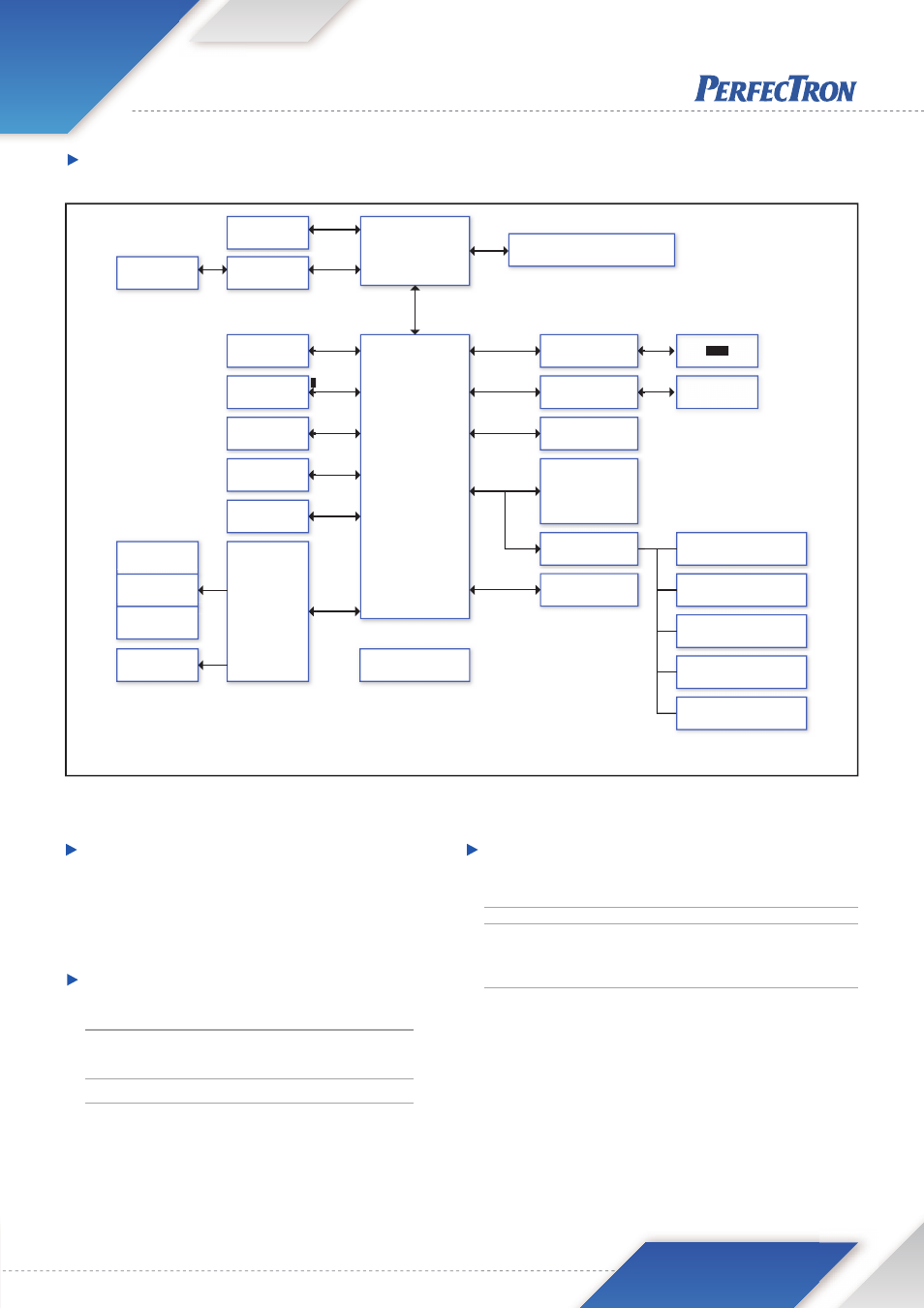

Block Diagram
Packing List Ordering Information
Modules
Model Number Description
OXY5316A-ET 3.5'' SBC Intel® Cedarview N2800 with DDR3 SO-
DIMM, Dual Display by LVDS/DV-I, Dual GbE LAN,
Audio, 5 x COM, 7 x USB, and 12V DC-in
(-20 to 70°C)
OXY5316A-UT 3.5'' SBC Intel® Cedarview N2800 with DDR3 SO-
DIMM, Dual Display by LVDS/DV-I, Dual GbE LAN,
Audio, 5 x COM, 7 x USB, and 12V DC-in
(-40 to 85°C optional)
• OXY5316A 3.5” SBC
• CD (Driver + user's manual)
Cable Kit
Cable kit for OXY5316A
Thermal Kit
Passive heatsink
CPU cooler
Optional Accessories
