3.5'' SBC - OXY5320A

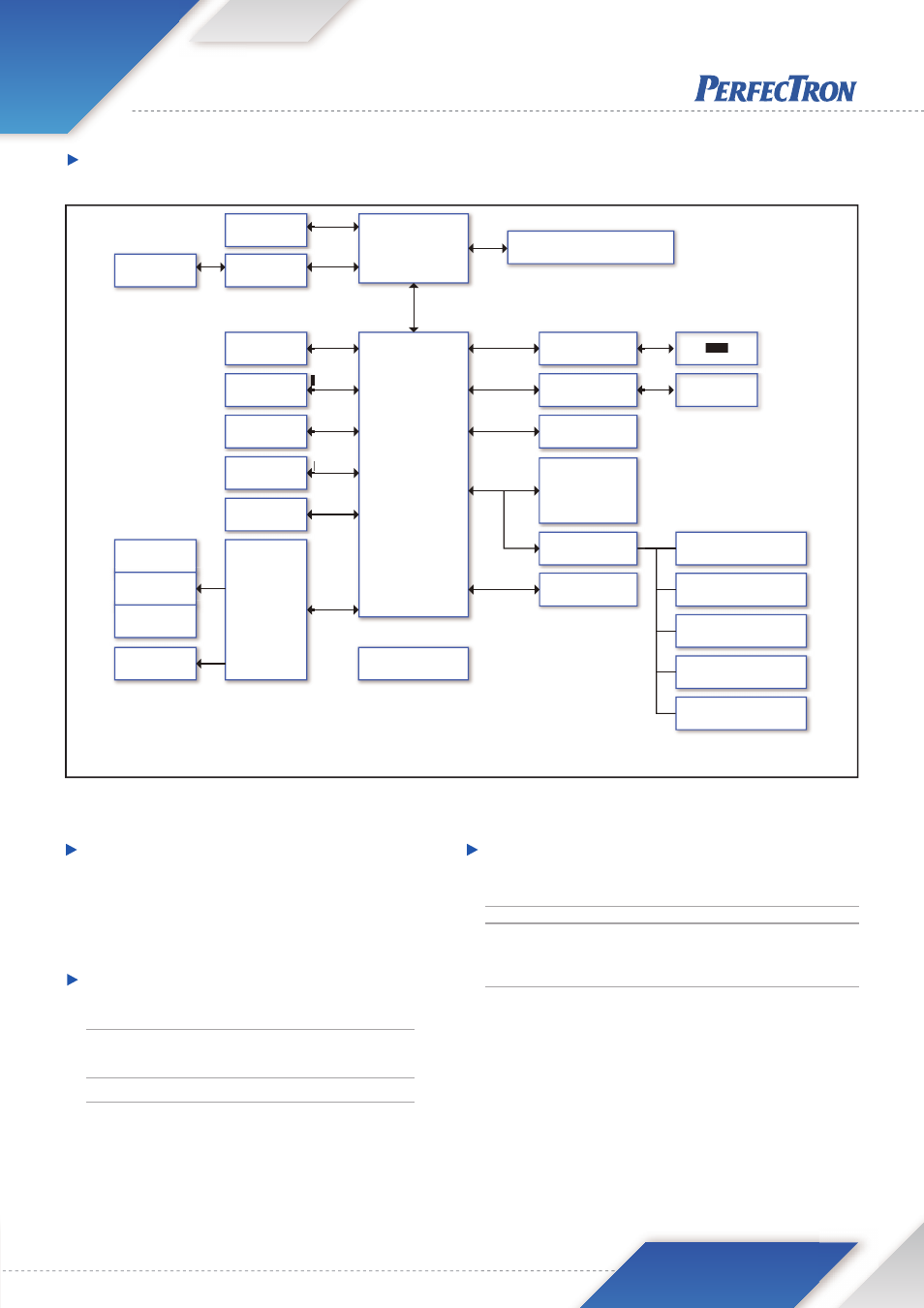

Block Diagram
Packing List Ordering Information
Modules
Model Number Description
OXY5320A-ET 3.5'' SBC Intel® Cedarview N2600 with DDR3 SO-
DIMM, Dual Display by LVDS/DVI-I, Dual GbE LAN,
Audio, 5 x COM, 7 x USB, and 12V DC-in
(-20 to 70°C)
OXY5320A-UT 3.5'' SBC Intel® Cedarview N2600 with DDR3 SO-
DIMM, Dual Display by LVDS/DVI-I, Dual GbE LAN,
Audio, 5 x COM, 7 x USB, and 12V DC-in
(-40 to 85°C)
• OXY5320A 3.5” SBC
• CD (Driver + user's manual)
Cable Kit
Cable kit for OXY5320A
Thermal Kit
Passive heatsink
CPU cooler
Optional Accessories
