Impulse IMBA-Q87A - Manual (Page 2)

10-44

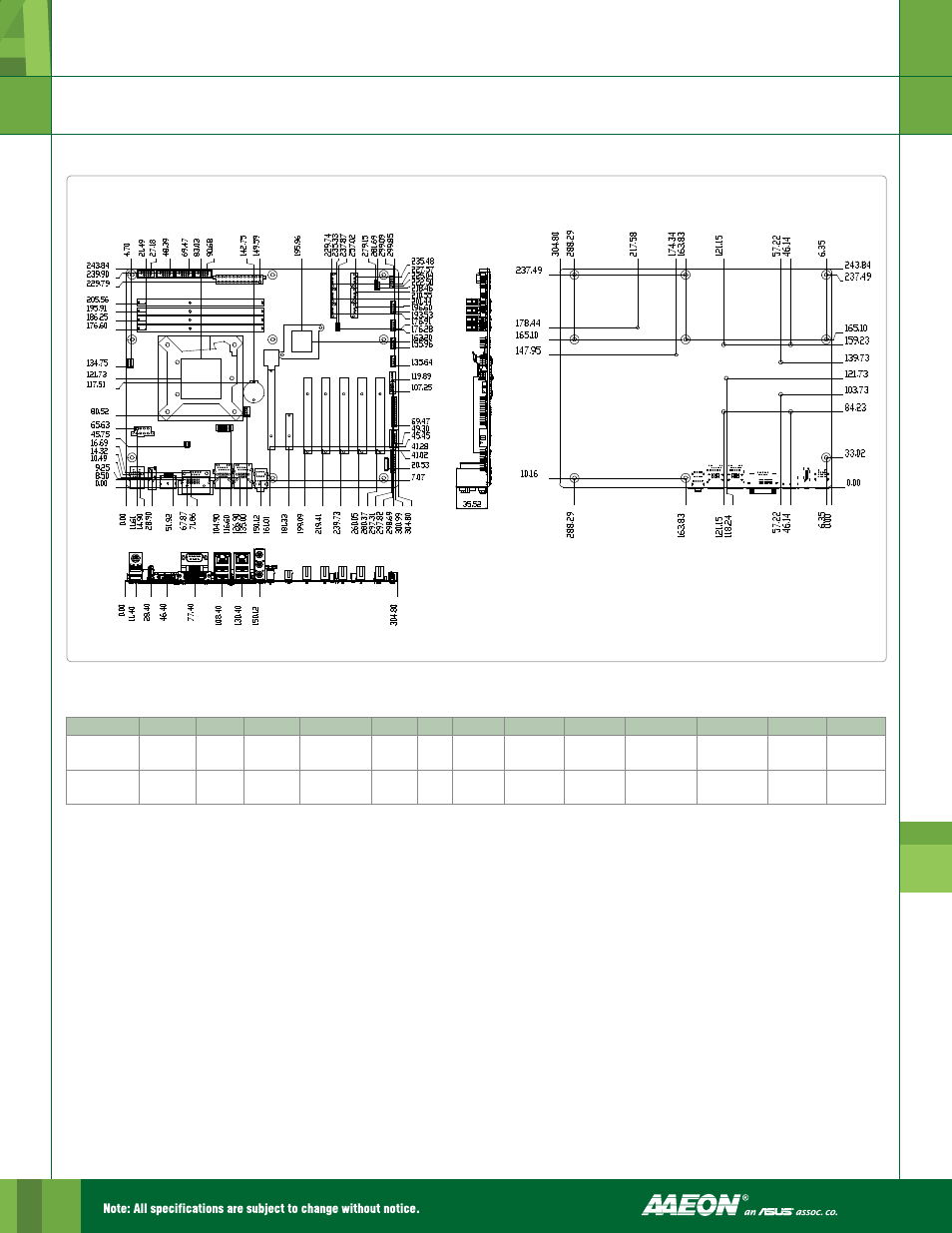

Dimension
Unit: mm
IMBA-Q87A
Ordering Information
Optional Accessories
• 1709100330
USB 2.0 Cable (9P, 330MM, p=2.54mm)
• 1701260305
LPT Cable (25P, 270MM)
• 1759200172
CPU Cooler (2-Ball, Screw with Retention Plate)
• 175921156B
CPU Cooler (2-Ball, Push-pin Type)
• 1701160201
VGA Cable (200MM, p=2.00mm)
• TPM Module
PN CPU RAM Fan/Fanless Display Storage LVDS LAN USB RS-232 RS-232/422/485 Expansion Slot Power Temp.
IMBA-Q87A-A10-DH
Haswell 1150
Socket Type 240-pin
DIMM x 4
Fan
VGA, DVI,
HDMI, DP
SATA3 x 6 — Intel GbE x 2
USB 3.0 x 4
USB 2.0 x 10
5 1
PCI-Express [x16] x 1
PCI-Express [x4] x 1
PCI x5
ATX 0°C ~ 60°C
IMBA-Q87A-A10-HH
Haswell 1150
Socket Type 240-pin
DIMM x 4
Fan
VGA, DVI,
HDMI x 2
SATA3 x 6 — Intel GbE x 2
USB 3.0 x 4
USB 2.0 x 10
5 1
PCI-Express [x16] x 1
PCI-Express [x4] x 1
PCI x5
ATX 0°C ~ 60°C
