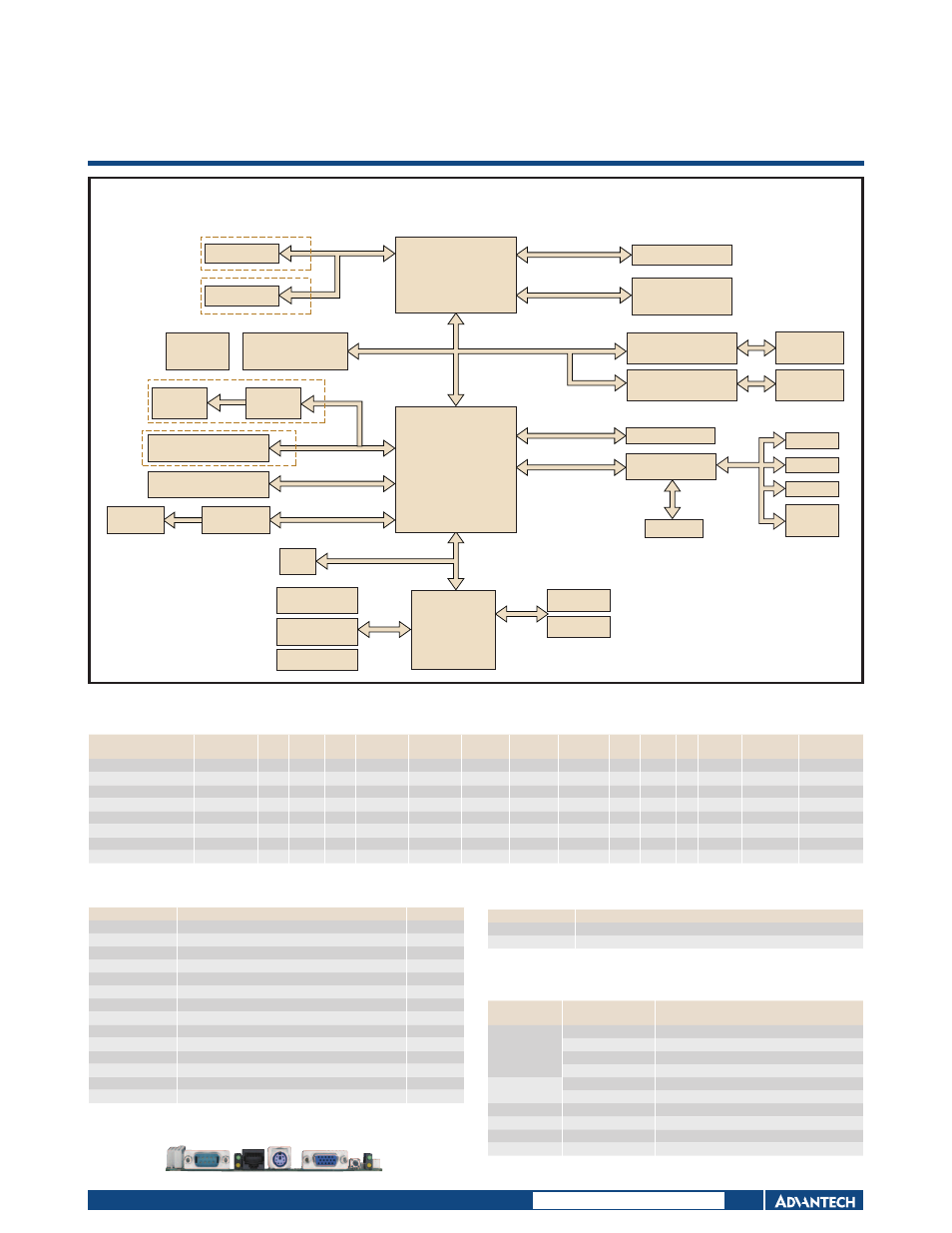

Board Diagram

Board Diagram

PCM-9375

Packing List

Part No.

Description

Quantity

PCM-9375 SBC
Startup Manual
Utility CD

1701440351

IDE cable (44p/44p) 35cm (PCM-9375F/E series only)

1

1700060202

KB/MS cable 20cm

1

1701100202

LAN cable 20cm

1

1700001971

COM 2/3/4 RS-232 cable 21 cm

1

1700001977

Parallel Port cable 25cm

1

1703160160

Audio cable 16 cm

1

1703100121

USB cable (2 ports) w/ bracket 12cm

1

1700008894

SATA data cable 30cm (PCM-9375SF/SE only)

1

1703150102

SATA power cable 10cm (PCM-9375SF/SE only)

1960004868

LX800 heatsink for PCM-9375 39.5 x 39.6 x 9.8 mm

1960004869

CS5536 heatsink for PCM-9375 22.6 x 22.6 x 14.5 mm

Optional Accessories

Part No.

Description

1703040157

COM2 cable for RS-422/485

1703200201

ATX power control cable

Embedded OS/API

Embedded OS/

API

Part No.

Description

WinCE

2070000729

Image PCM-9375 CE 5.0 Pro Plus Eng

2070001612

CE 6.0 Pro GX3 4Com V1.0 ENG

2070007509

CE 6.0 Pro PCM-9375_4COM V1.1 JPN

2070007810

CE 6.0 Pro GX3 4COM V1.2 ENG

Win XPE

2070007790

WES2009 ENG V4.0

2070007910

WES2009 24MUI V4.0

QNX

QNX 6.3.2, QNX 6.4.1

Vxwork

V5.5

Linux

205E375000

Linux WDT Driver Ubuntu8.04 PCM-9375 V1.0 ENG

Software API

2066002300

CD SUSI Library V1.0

Ordering Information

Part No.

CPU

VGA LVDS TTL

10/100

Ethernet

IDE/SATA USB2.0

RS-232

RS-232/

422/485

LPT

GPIO CF PC/104 Thermal

Solution

Operating

Temp.

PCM-9375F-J0A1E

AMD LX800

1

-

1

2

1 IDE

4

3

1

1

8-bit

1

1

Passive

0 ~ 60° C

PCM-9375E-J0A1E

AMD LX800

1

1

-

2

1 IDE

4

3

1

1

8-bit

1

1

Passive

0 ~ 60° C

PCM-9375SF-J0A1E

AMD LX800

1

-

1

2

1 SATA

4

3

1

1

8-bit

1

1

Passive

0 ~ 60° C

PCM-9375SE-J0A1E

AMD LX800

1

1

-

2

1 SATA

4

3

1

1

8-bit

1

1

Passive

0 ~ 60° C

PCM-9375FZ-J0A1E

AMD LX800

1

-

1

2

1 IDE

4

3

1

1

8-bit

1

1

Passive

-20 ~ 80° C

PCM-9375EZ-J0A1E

AMD LX800

1

1

-

2

1 IDE

4

3

1

1

8-bit

1

1

Passive

-20 ~ 80° C

PCM-9375FZ2-J0A1E

AMD LX800

1

-

1

2

1 IDE

4

3

1

1

8-bit

1

1

Passive

-40 ~ 85° C

PCM-9375EZ2-J0A1E

AMD LX800

1

1

-

2

1 IDE

4

3

1

1

8-bit

1

1

Passive

-40 ~ 85° C

Rear I/O View

AMD Geode LX 800

PCI BUS

Transmiter

LPC Super I/O

Master

CompactFlash

IDE

AMD Geode

CS5536/CS5535

Watchdog

COM1/3/4

(RS-232)

COM2

(RS-232/422/485)

DDR SDRAM

DDR333

200-pin SODIMM x 1

VGA

Analog RGB

18/24 Bit TTL

TTL LCD

LVDS

RJ-45

(RTL 8139)

10/100 Ethernet

PCI to ISA Bridge

PC/104

IDE to SATA

bridge

SATA

USB 2.0

USB 2.0 x 4

AC-Link

(ALC203)

AC97 Codec

Line-in

Mic-in

Line-out

Slave

IDE / DMA33

PCM-9375SF/SE only

LPC Bus

BIOS

PS/2 KB&MS

GPIO IC

8-bit GPIO

SMBus

LPT

(SCH3114)

Speaker

Out

Amp

Box Header

(RTL 8139)

10/100 Ethernet
