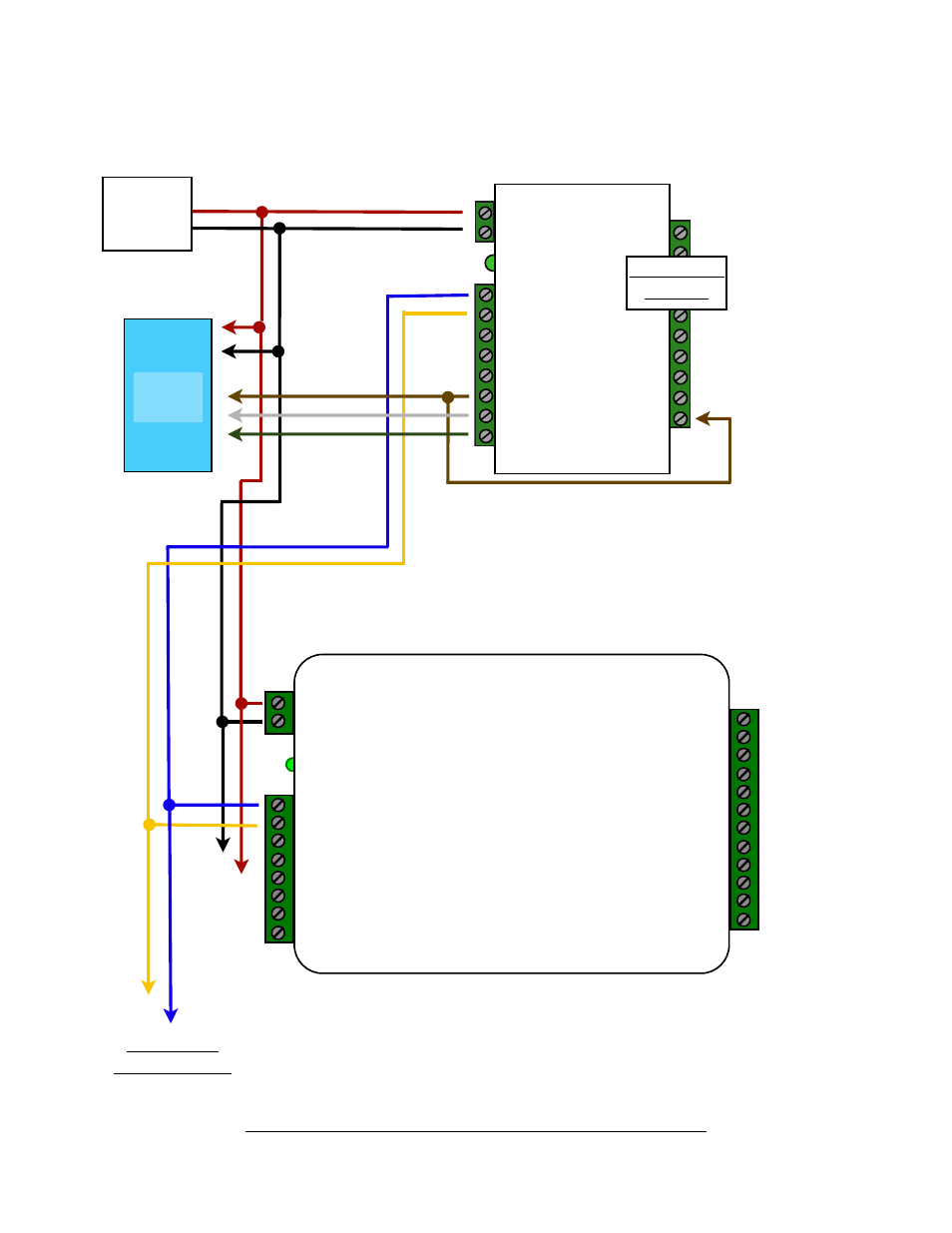

Cypress Suprex Series - Wiegand Expansion Module

Panel “Central” interface

EXP-2000

Central Unit

8 to 16 VDC In
Ground

485(+)
485(-)
+5 VDC Out
Prog Res 4
Prog Res 3
LED Input
D1/Data/F2F Out
D0/Clock Out

RLY4 N.O.

RLY4 Com

RLY4 N.C.

RLY3 N.O.

RLY3 Com

RLY3 N.C.

RS232 Out

RS232 In

Ground

Aux Out

Relay2 Input
Relay1 Input

Access
Control

Panel

+8 to +16 VDC
Ground

EXP(+)
EXP(-)

LED In
D1/Data Out
D0/Clock Out

R1 Input
Controls
Strike on
Remote

DC

Power

Supply

SPX-XXXX

Central

Additional

EXP Modules

See EXP-2000 Manual for further setup instructions

R1 IN
