POWER WIRE (STRANDED COPPER WIRE)
500 feet or less 500 feet to 1000 feet
Wire Gauge 14 - 500 feet (152 m) Wire Gauge 12 - 1000 feet (305 m)
Transformer 13.5 Vac Transformer 14.5 Vac

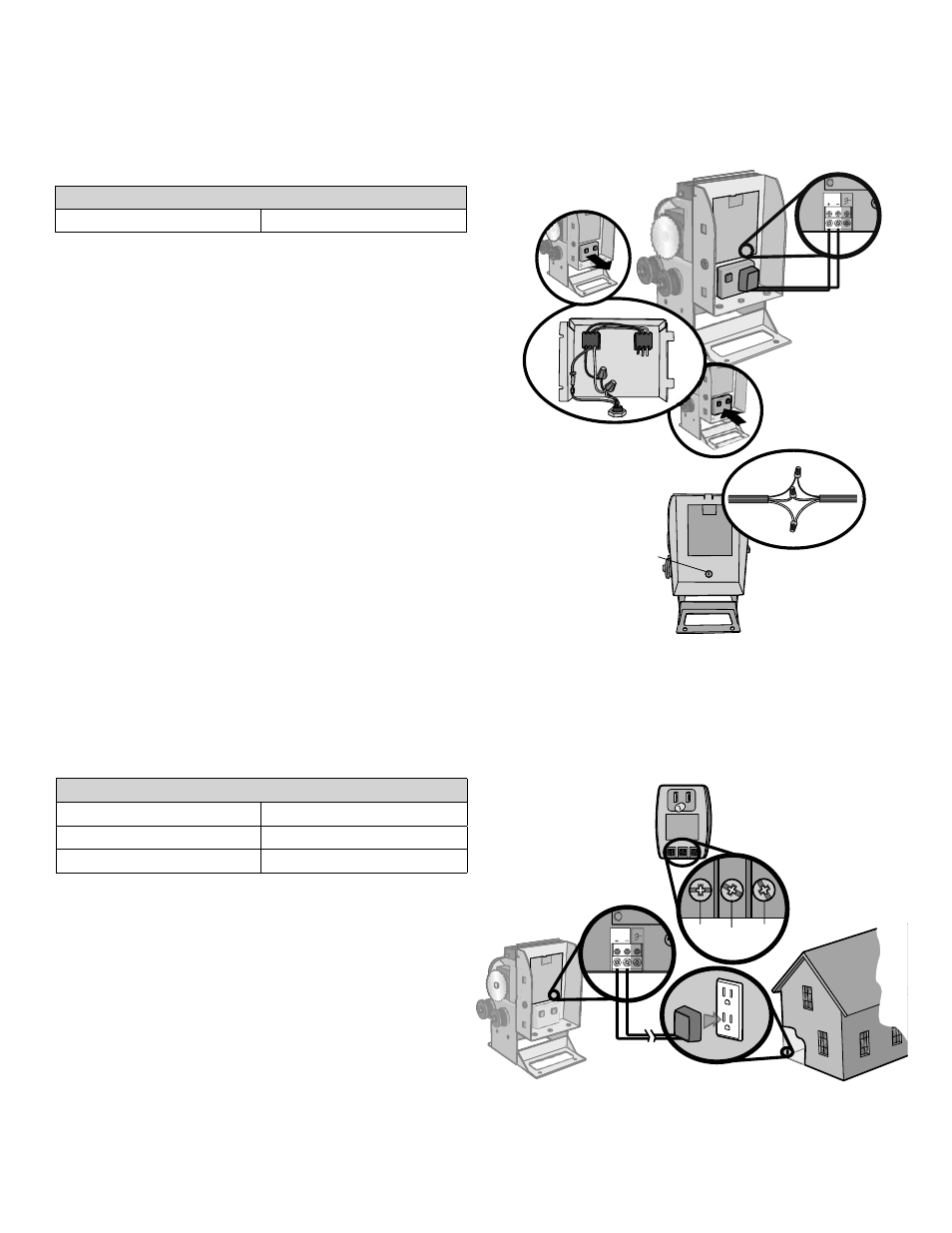

POWER WIRING
This operator can be powered by the internal receptacle, an external
receptacle or a solar panel (not provided).
INTERNAL RECEPTACLE
CHGR
OVLD
CTRL
AC PWR
/SOLAR
1
2
3
4
NOTE: All power wiring should be on a dedicated circuit, calculated using NEC
guidelines. National and local electrical codes must be reviewed for suitability of wire
installation.
Remove the access panel.
Connect AC power to the operator:
• Connect the green wire to the ground screw in the access panel.
• Connect the black and white wires together with wire nuts.
HEATER WIRING:
NOTE:
If your operator comes with a heater it will have to be wired. The heater may
be wired to the internal receptacle or a separate junction box.
If wiring the heater to the internal receptacle, remove the knockout in the chassis
behind the internal receptacle (refer to illustration). Thread the heater wires through
the knockout and connect the heater wires to the power wires of the operator with
wire nuts (green to green, black to black, and white to white).
Replace the access panel.
Connect the wires from the transformer to the AC PWR/SOLAR terminal located
on the control board.
Plug the transformer into the internal receptacle.
EXTERNAL RECEPTACLE
NOTE: All power wiring should be on a dedicated circuit, calculated using NEC
guidelines. National and local electrical codes must be reviewed for suitability of wire
installation. The transformer must be located in a dry location that is protected from
weather conditions, such as inside the house or garage.
Run low voltage wire between the transformer and the operator.
Connect the wires from the transformer to the AC PWR/SOLAR terminal located
on the control board.
Plug the transformer into the external receptacle.
5
CHGR
OVLD CTRL
AC PWR
/SOLAR
1
2
3
14.5
Vac COM
13.5
Vac
WIRING
» POWER WIRING
Knockout for
Heater Wires
Operator
Power Wires
Heater
Wires
1
2
3
4
5
120 VAC POWER WIRE (STRANDED COPPER WIRE)
Wire Gauge 16 - 100 feet (30 m) Wire Gauge 10 - 1000 feet (305 m)
1
2
3
