CONCrETE pAd CONSTruCTiON:
Dimensions given for the pad are based on soil
bearing shear of 2000 P.S.F. These figures may
have to be adjusted depending on local soil
conditions.
1. Construct form for mounting pad according to
dimensions shown in Figure 1 and 2.
2. Locate mounting pad according to dimensions
given in illustration.
3. Level top edge of form.
4. Set reinforcing bars and wire mesh.
5. Allow pad to cure for 48 hours, and remove
forms.
6. Note: conduits 6” above concrete pad.
iNSTALLATiON SpECiFiCATiONS

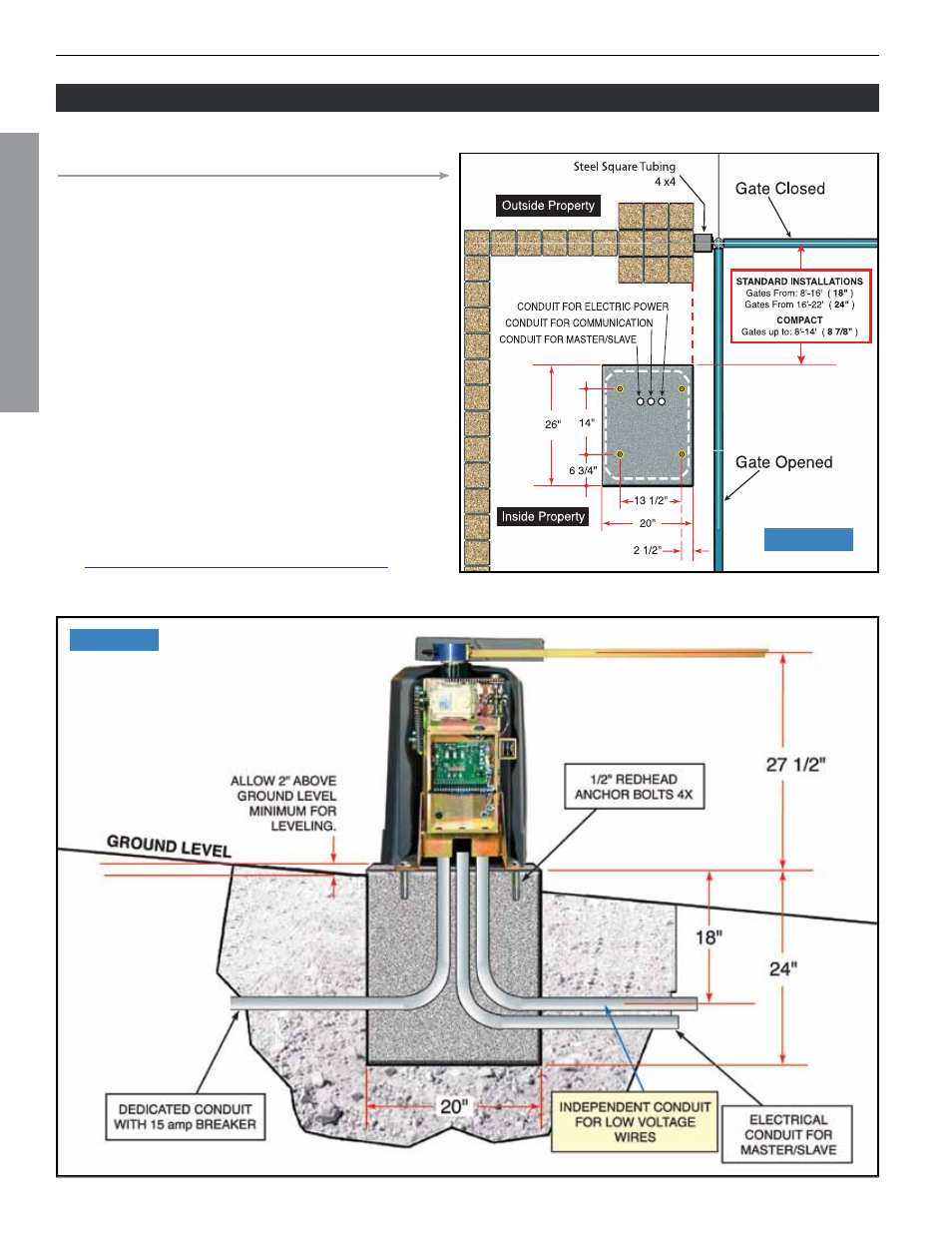

Figure 1
Figure 2
