AMABILIA DOUBLE O-RING GEOTHERMAL FLOW CENTERS DORFC-2 - Manual (Page 14)

Manual 2100-518B
Page 14 of 30

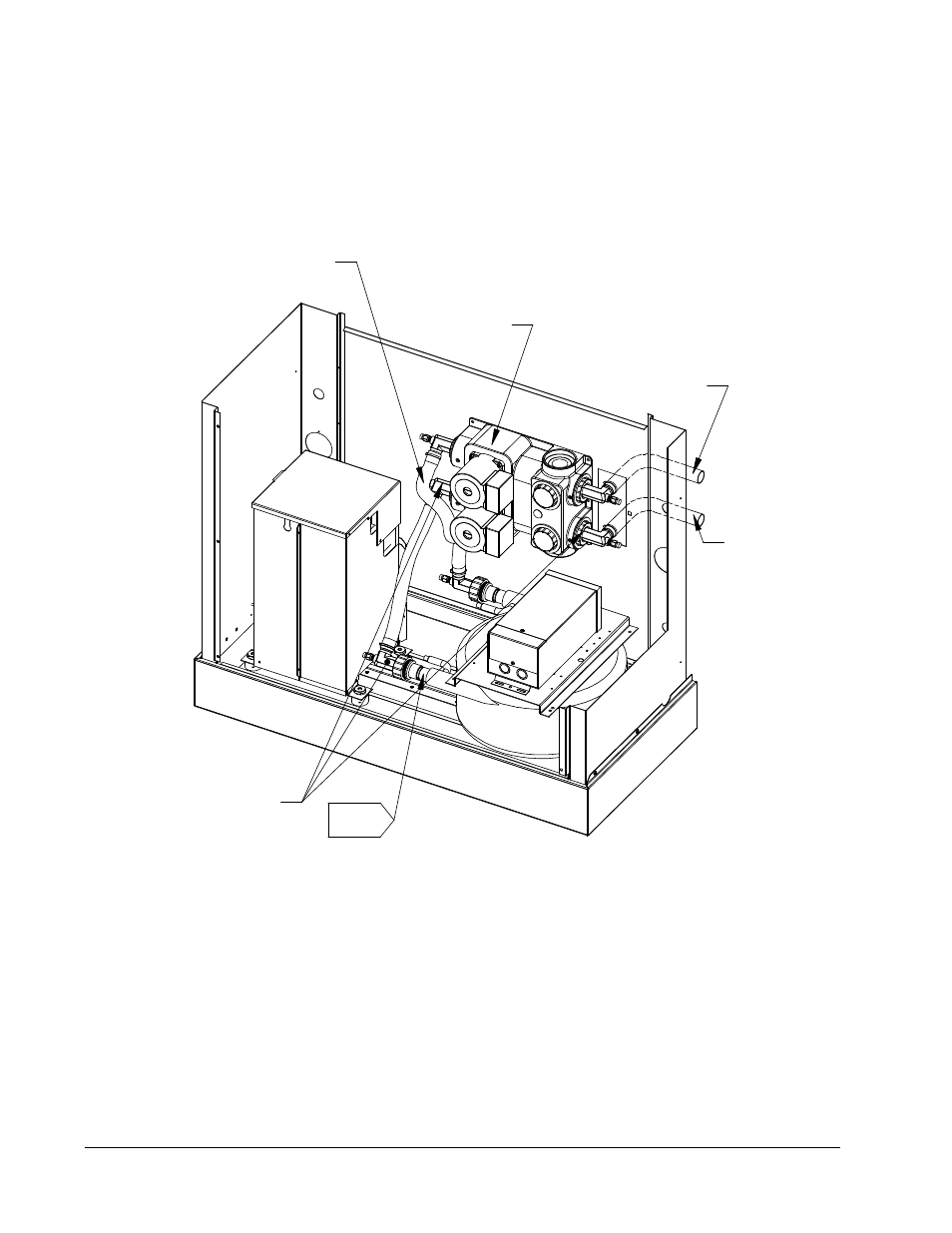

fiGure 5c
flOw center cOnnectiOn tO Qw series mOdel
NOTE: Apply petroleum
jelly to o-rings to prevent
damage and aid in insertion
MIS-2748 A
FLEXIBLE HOSE
for Model No.)
(See Spec Sheet
GROUND LOOP
PIPE FROM
PUMP MODULE
PIPE TO
GROUND
LOOP
WATER
OUT
