Manual 2100-518B
Page 12 of 30
multiPle unit tO sinGle lOOP
cOnnectiOn
In instances where multiple units are connected to a singular
loop, our recommendation is to apply a flow center to each
individual system with full-port balancing valves installed
on each unit. See Figure 6.

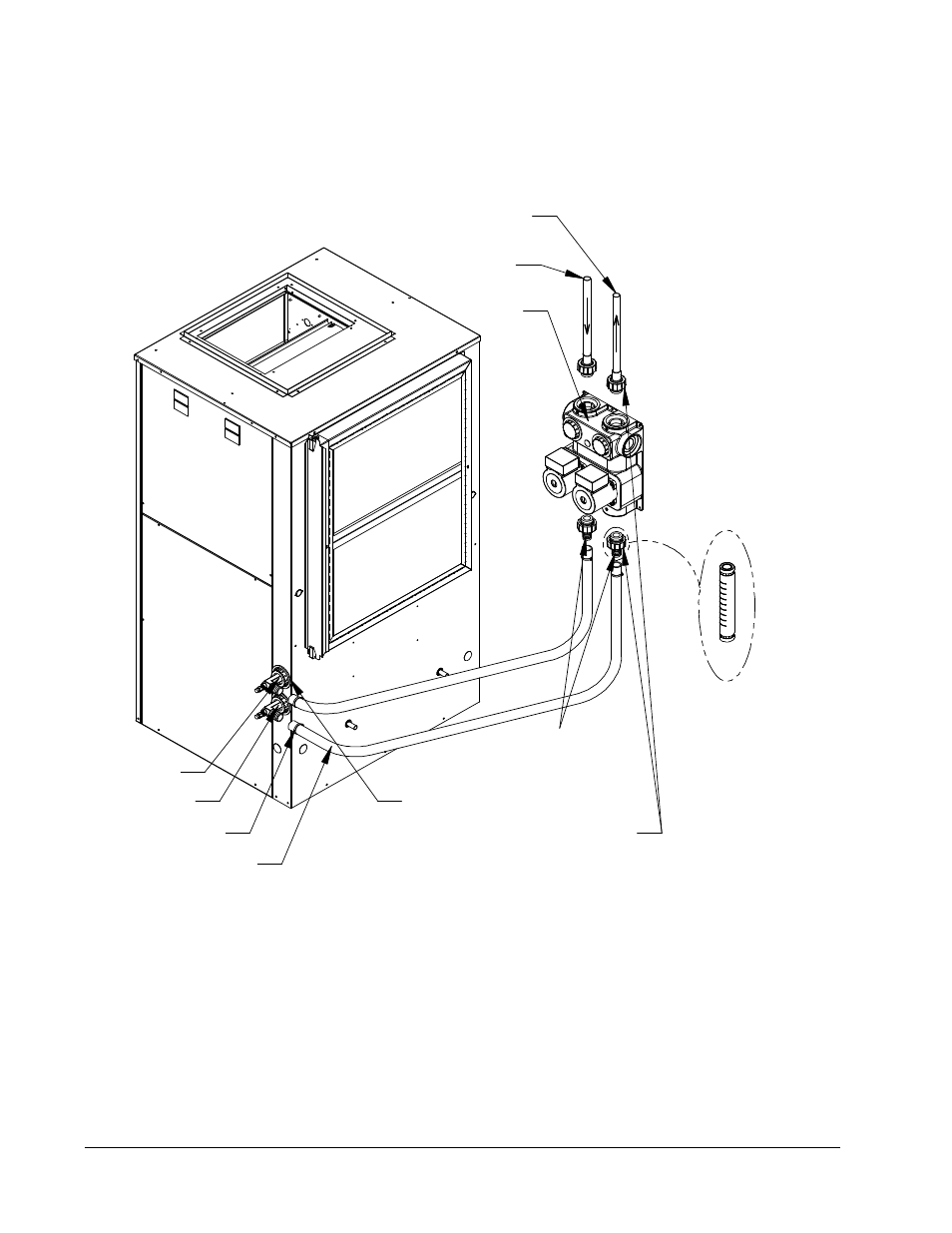

fiGure 5a
flOw center cOnnectiOn tO GV series mOdel
MIS-2621 A
PUMP
WALL BRACKET
FIELD-FABRICATED
WATER IN
HOSE CLAMPS
PIPE TO GROUND LOOP
PIPE FROM
STRAIGHT BARBED
BRASS ADAPTERS
MODULE
WATER OUT
1" FLEXIBLE HOSE
GROUND LOOP
OPTIONAL VISUAL
FLOW METER
NOTE: IF USED
SUPPORT WITH A
NOTE: APPLY PETROLEUM JELLY
TO O-RINGS TO PREVENT DAMAGE
AND AID IN INSERTION.
