BGU
• BGU-D Barrier Gate Operator Installation Guide
- 23 -
P558 Revision X13 8-11-2011

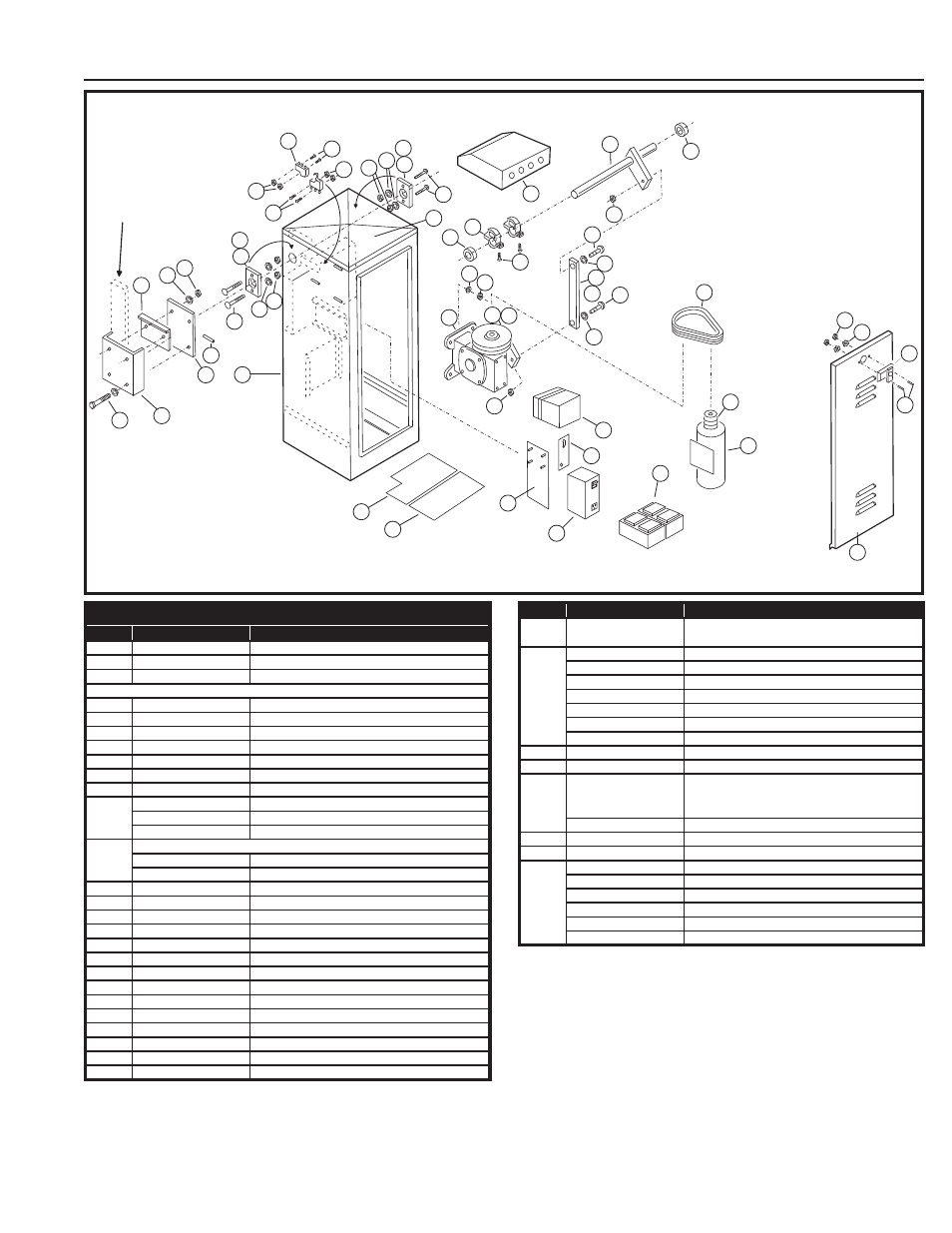

Model BGU-D Exploded View
MODEL BGU-D MECHANICAL PARTS LIST
REF. #
PART #
DESCRIPTION
1
2110-839
Enclosure only (without Door)
2
2100-2142
Removable Enclosure Top
3
2110-318*
Louvered Door Assembly with Lock
* Specify color and texture
5
2220-008
Lock Assembly with Keys
6
2110-746
Bearing Block Assembly Kit
7
2110-170
Drive Shaft Assembly
8
2110-732
Gate Arm Flange
9
2100-1886
Arm Attachment Channel
11
2200-898
Bearing only
12
2110-441
Connecting Link with Bearings
17
2500-1902
Motor 24VDC
2510-243
Brush Replacement Kit
2110-621
Motor Mounting Bracket (not shown)
19
GEAR REDUCERS 60:1
2200-758
MMTC
2200-667
Canimex
21
2100-388
Reducer Pulley, 5”
23
2200-929
V-Belt, cogged 24”
24
2200-883
Motor Pulley, 1-5/8”
26
2200-136
Bearing only
28
2400-285
Key, 3/16” x 3/16” x 1-7/8”
29
2400-183
Carriage Bolt, 3/8”-16 x 1”
33
2200-314
Set Collar, 1-1/4”
34
2400-474
Spring Pin, 0.37” x 2”
38
2500-764
Limit Switch
43
2300-028
Limit Cam
55
2400-188
Thrust Washer
56
2400-165
Shoulder Bolt, 1/2”-13 x 2”
70
2100-1670
Arm Flange Bracket with Cutting Edge
71
2510-418
Transformer Assembly
REF. #
PART #
DESCRIPTION
72
2100-1995
Power Disconnect Box and Transformer Mounting
Bracket
73
2510-432
Power Box Assembly
2500-2411
Power Switch
2500-2413
Power Outlet
2500-2473
Relay, 24 VDC
2500-1768
Bridge Rectifi er
2500-1819
Fuse Holder
2500-1748
Fuse, 10 Amp, Slow-Blow
74
2100-1804
Rear Accessory Shelf
75
2100-1820
Front Accessory Shelf
76
2510-182
Battery Assembly
(Linear supplied - some distributors supply other
batteries)
2500-1118
Battery, 12V (2 required)
2520-524
Wiring Harness Assembly (not shown)
77
2100-2143
Power Box Mounting Strap
80
2510-439
APeX Module and DC Motor Board Assembly
2500-2393
APeX Module
2500-2399
APeX DC Motor Module
2100-2104
APeX Mounting Plate
2300-1025
Plastic Cover Only
2510-423
Knob Kit
ARM SHOWN FOR
REFERENCE ONLY
9
46
70
47
30
30
30
1
29
47
30
6
11
42
40
40
42
38
30
47
6
11
29
33
43
44
63
64
19
21 28
7
33
59
56
55
12
26
56
55
23
59
72
73
74
75
24
54
53
5
52
3
80
71
76
17
2
77
