BGU
• BGU-D Barrier Gate Operator Installation Guide
- 22 -
P558 Revision X13 8-11-2011

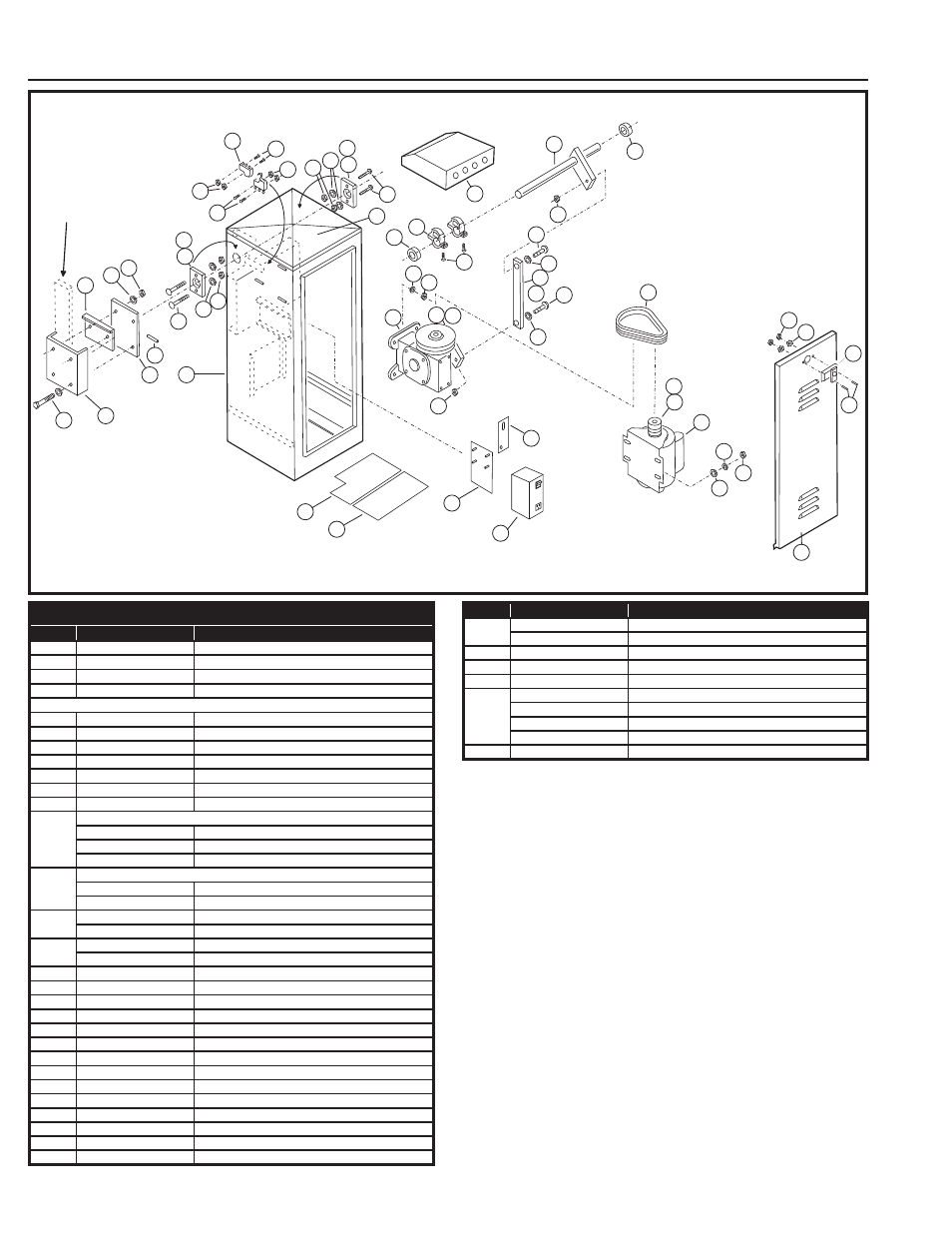

Model BGU Exploded View
ARM SHOWN FOR
REFERENCE ONLY
9
46
70
47
30
30
30
2
1
29
47
30
6
11
42
40
40
42
38
30
47
6
11
29
33
43
44
63
64
19
21 28
7
33
59
56
55
12
26
56
55
23
59
72
73
71
74
50
24
17
63
64
62
54
53
5
52
3
80
77
MODEL BGU MECHANICAL PARTS LIST
REF. #
PART #
DESCRIPTION
1
2110-839
Enclosure only (without Door)
2
2100-2142
Removable Enclosure Top
3
2110-318*
Louvered Door Assembly with Lock
2100-2141
Latch for Enclosure Top
* Specify color and texture
5
2220-008
Lock Assembly with Keys
6
2110-746
Bearing Block Assembly Kit
7
2110-170
Drive Shaft Assembly
8
2110-732
Gate Arm Flange
9
2100-1886
Arm Attachment Channel
11
2200-898
Bearing only
12
2110-441
Connecting Link with Bearings
17
MOTORS
2500-2108
A.O. Smith 1/3 HP 115V 1 PH
2500-2252
Emerson 1/3 HP 115V 1 PH
2500-2308
1/2 HP 208/230 VAC, 1 PH
19
GEAR REDUCERS 60:1
2200-758
MMTC
2200-667
Canimex
21
2200-118
Reducer Pulley, 4” (10’ Arm)
2100-388
Reducer Pulley, 5” (12’ Arm)
23
2200-208
V-Belt, 26” (10’ Arm)
2200-234
V-Belt, 28” (12’ Arm)
24
2200-235
Motor Pulley, 1-5/8”
26
2200-136
Bearing only
28
2400-285
Key, 3/16” x 3/16” x 1-7/8”
29
2400-178
Carriage Bolt, 3/8”-16 x 1-1/2”
33
2200-314
Set Collar, 1-1/4”
34
2400-474
Spring Pin, 0.37” x 2”
38
2500-764
Limit Switch
43
2300-028
Limit Cam
50
2400-238
Key, 3/16” x 3/16” x 1-1/4”
55
2400-188
Thrust Washer
56
2400-165
Shoulder Bolt, 1/2”-13 x 2”
70
2100-1670
Arm Flange Bracket with Cutting Edge
71
2100-1804
Rear Accessory Shelf
72
2100-1799
Power Disconnect Box Mounting Bracket
REF. #
PART #
DESCRIPTION
73
2510-422
115 VAC Power Box Assembly
2510-430
230 VAC Power Box Assembly
74
2100-1820
Front Accessory Shelf
2520-523
Wiring Harness Assembly (not shown)
77
2100-2143
Power Box Mounting Strap
80
2500-2393
APeX Module
2100-2104
APeX Mounting Plate
2300-1025
Plastic Cover Only
2510-423
Knob Kit
2400-343
1/4-20 Tinnerman Clip
