8

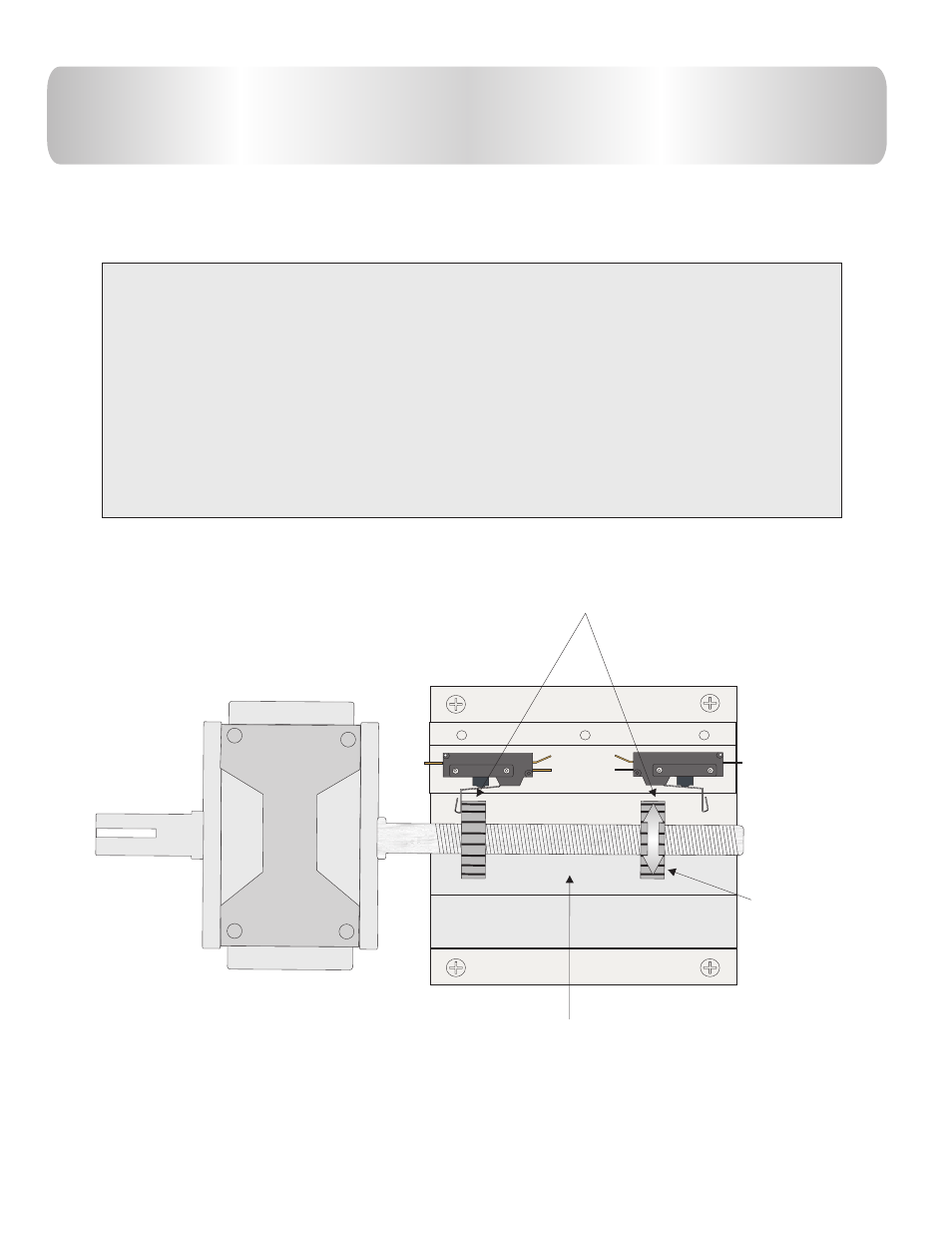

Gear box
GATE TRAVEL ADJUSTMENT
FOR SL-100DC
Limit nut lock plate
Limit nuts
Locate limit switches
Step 1: Stop the gate operator using the three button station on the board.
Step 2: Push limit lock plate down. Turn limit nut in the desired direction.
Step 3: Place limit plate to its locked position.
Step 4: Run gate operator.
Step 5: If more adjusting is needed, repeat steps 1-4.
Each notch equals
about
½” of travel.
