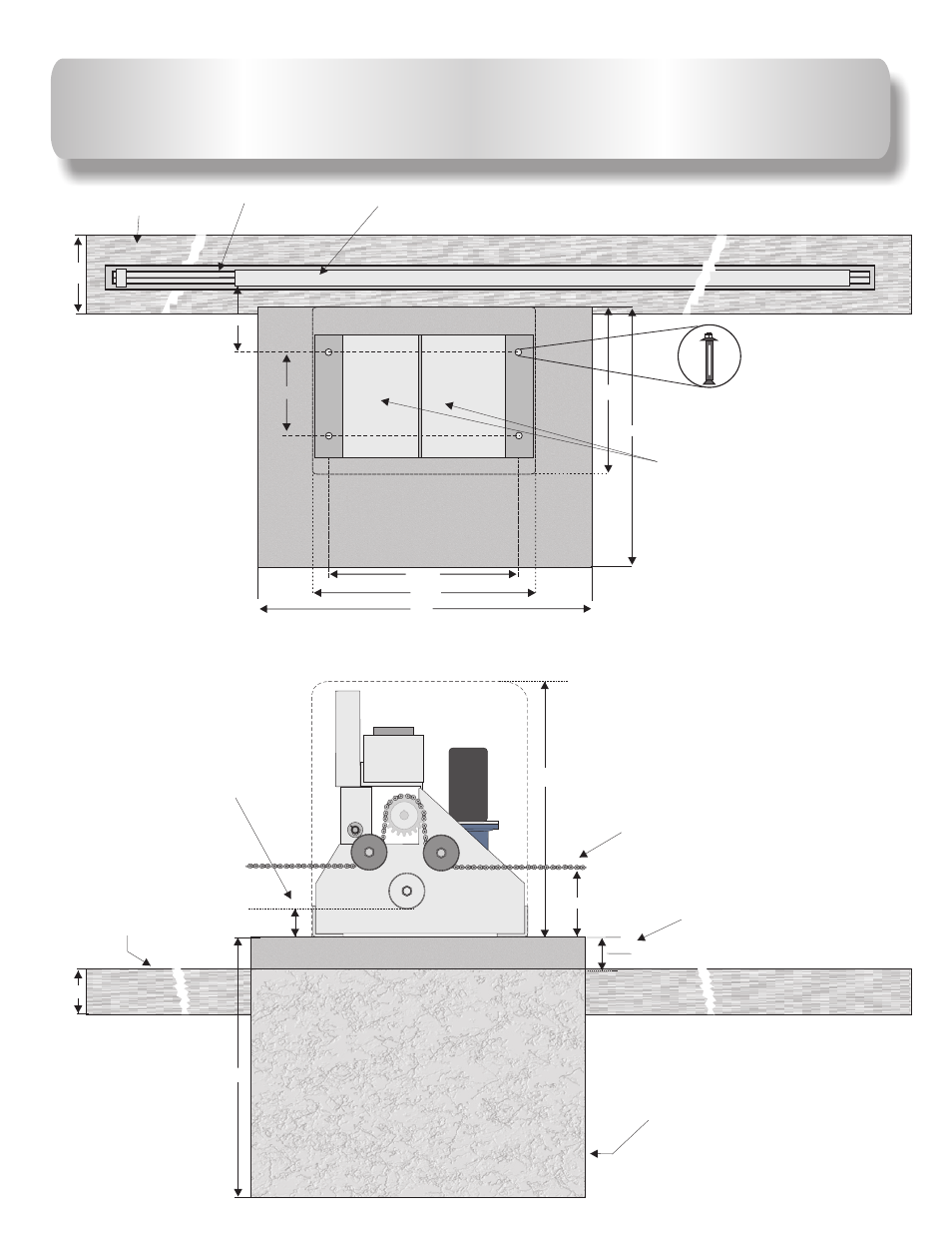

CONCRETE PAD PLACEMENT
FOR SL-150DC
24” 24”
16.25” 16.25”
30” 30”
7.5” 7.5”
FOUR RED HEAD
BOLTS ½”X 3 ½”
Area for conduit(s)
GATE TRACK GATE
GATE TRACK
FOOTING
Minimum 5”
10”
8”
24”
4”
When possible
Install 4” above
ground level
Footing for gate operator
Gate track
Footing
Drive chain level
15” 15”
20” 20”
25”
6”
2½” 2 ” ½
Drive chain level for Rear
mount
