1.3 Operator Installation

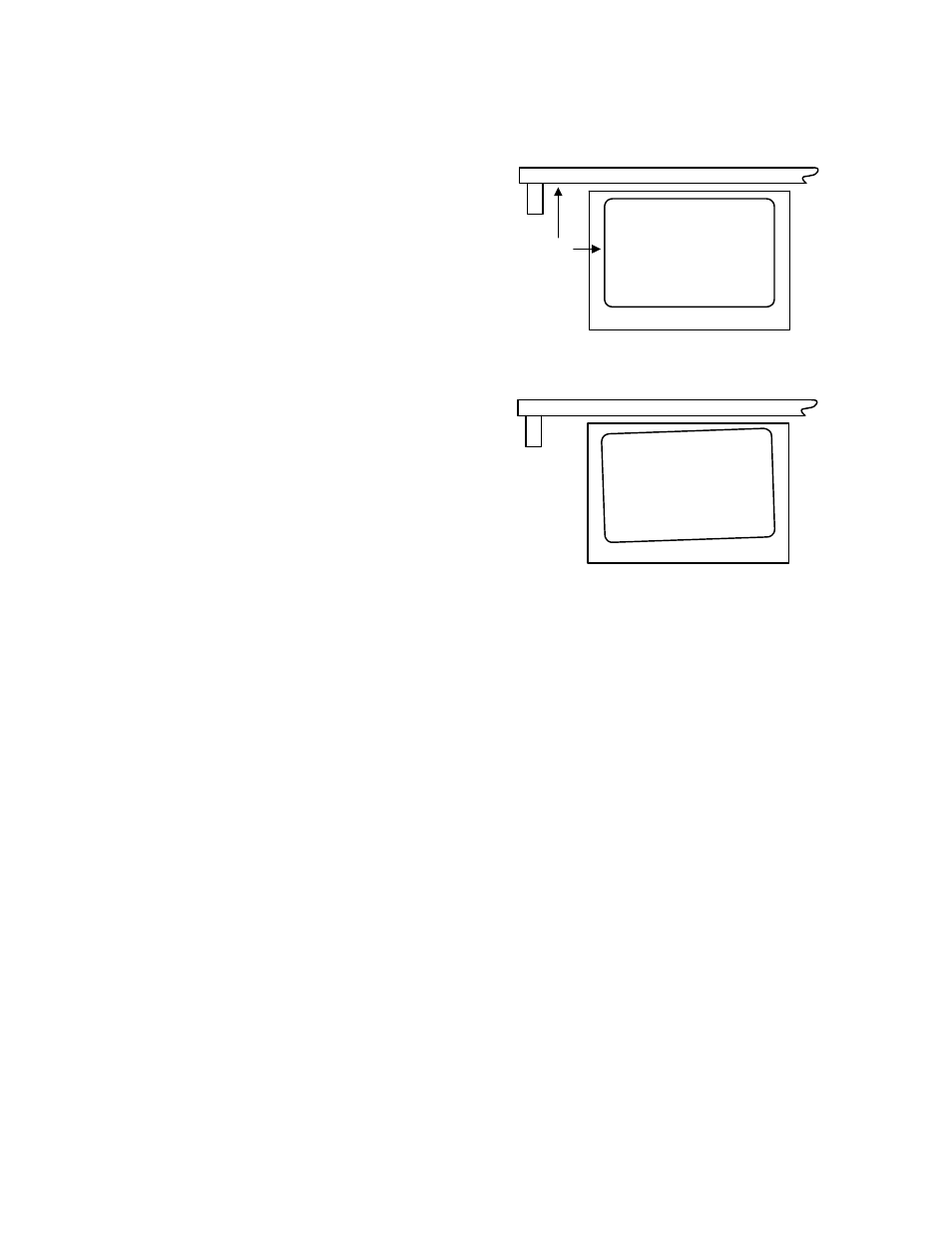

Position the operator on the pad so that there is a
minimum clearance of one (1) inch between the
back of the operator housing and the gate.
90°
IMPORTANT!! Be sure that the operator is
parallel to the gate! Installing the operator in any
other manner will cause excessive chain noise,
chain wear and stretching, and premature idler
failure.
Mark the mounting holes on the mounting pad.
Use a concrete drill bit to drill the mounting holes
to the size and depth required for the anchors
being used. We recommend 1/2 x 2 or 3/8 x 2
sleeve anchors (not supplied).
NO!
After drilling the mounting holes, clean them out
and install the sleeve anchors. Position the
operator over the anchors and tighten.
