2.1 High Voltage Connections
Use Table 1 to determine high voltage wire size requirements. The distance shown in the chart is
measured in feet from the operator to the power source. If power wiring is greater than the maximum
distance shown, it is recommended that a service feeder be installed. A separate power disconnect
must be installed at the operator. The wire table is based on stranded copper wire. Wire run
calculations are based on a 3% voltage drop on the power line, plus an additional 10% reduction in
distance to allow for other losses in the system.
WIRE SIZE / DISTANCE IN FEET VOLTS HP AMPS
12 AWG 10 AWG 8 AWG 6 AWG
115 1/2 5.4 170 275 460 685
208 / 230 1/2 2.7 685 1100 1830 2750
460 1/2 1.4 2875 4600 7665 11500
115 1 9.7 95 155 250 385
208 / 230 – 3
Ш
1 2.8 660 1060 1765 2650
460 – 3
Ш
1 1.3 2980 4770 8000 11940
Table 1

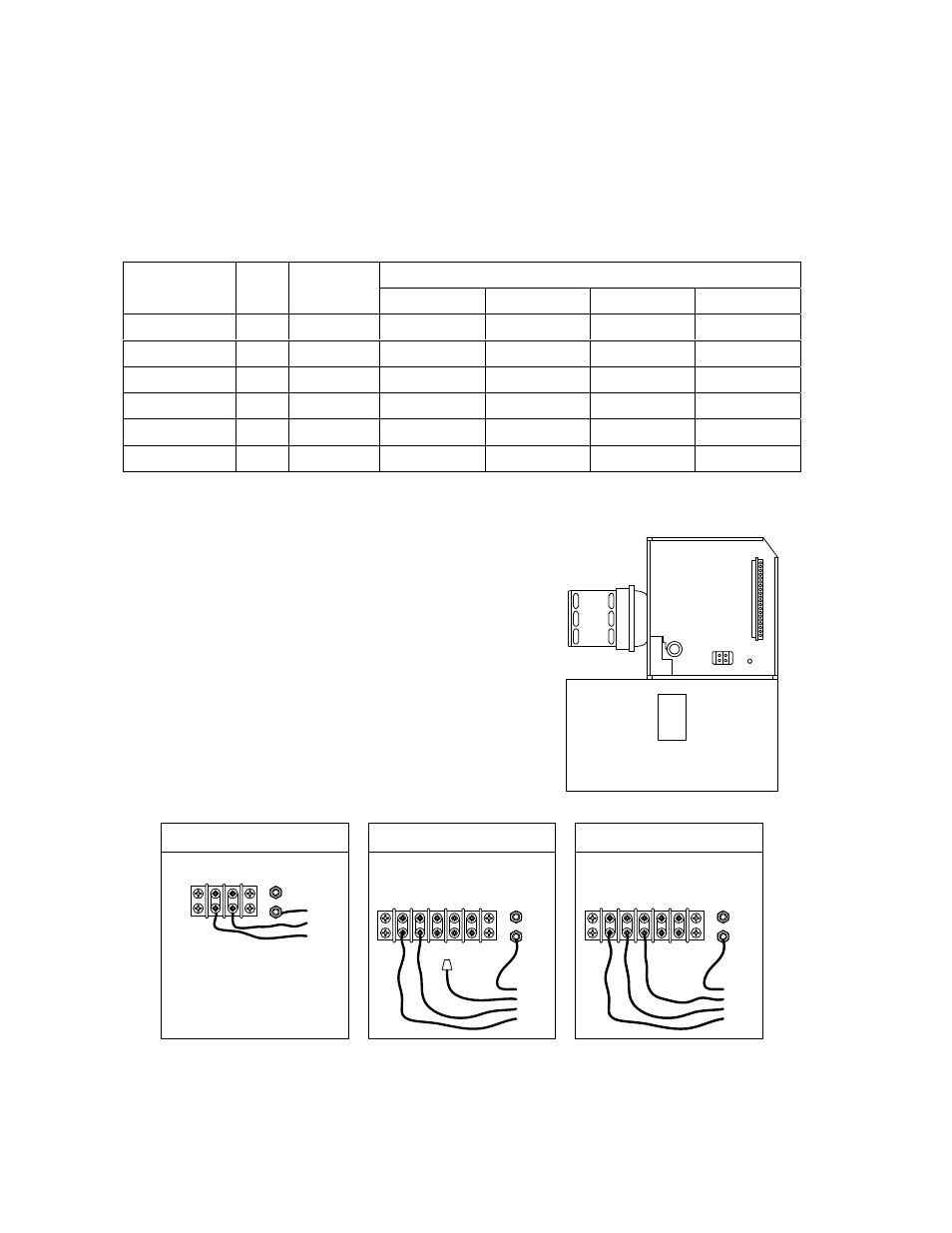

Route incoming high voltage power through disconnect
and into the operator.
SEE DETAIL
Be sure wiring is installed in accordance with local codes.
Be sure to color code all wiring.
Connect the power wires to the high voltage terminal strip
as shown.
It is recommended that a surge suppresser be installed on
the high voltage power lines to help protect the operator
and circuit board from surges and power fluctuations.
If 3-Ph power is used to power a ½ HP unit, cap off one
leg of the power as shown below.
½ HP - High Voltage 3 Ø Power
20
8
/23
0
/46
0
208/230/460
VAC 3 Ph
20
8
/23
0
/46
0
BLACK
BLACK
GREEN
BLACK
1 HP - High Voltage 3 Ø Power
20
8
/23
0
/46
0
208/230/460
VAC 3 Ph
20
8
/23
0
/46
0
20
8
/23
0
/46
0
BLACK
BLACK
GREEN
BLACK
11
5
VAC
½ - 1 HP - 115 VAC Power
HO
T
NE
U
T
BLACK
WHITE
GREEN
