6500-065-M-10-08 1
Class of Operation Model 6500 - UL325 Class I, II, III, IV
Type of Gate Vehicular Swing Gates Only
Horsepower 1/2 or 1 HP
Voltage / Phase 115 / 208 / 230 / 460 VAC Single-Phase
Current 1/2 HP – 5.4 Amps @ 120V – * – 2.7 Amps @ 208V or 230V – * – 1.35 Amps @ 460V
1 HP – 9.7 Amps @ 120V – * – 4.9 Amps @ 208V or 230V – * – 2.5 Amps @ 460V
Max Gate Weight 1/2 HP - 600 Lbs. – * – 1 HP - 800 Lbs.
Max Gate Length 1/2 HP - 18 Ft. – * – 1 HP - 22 Ft.
Cycles Per Hour 60 Per Hour
Speed 90° in approximately 12-14 seconds
Entrapment Protection Primary - Inherent entrapment sensing system (Type A)
Secondary - Provision for connection of a non-contact sensor (Type B1)

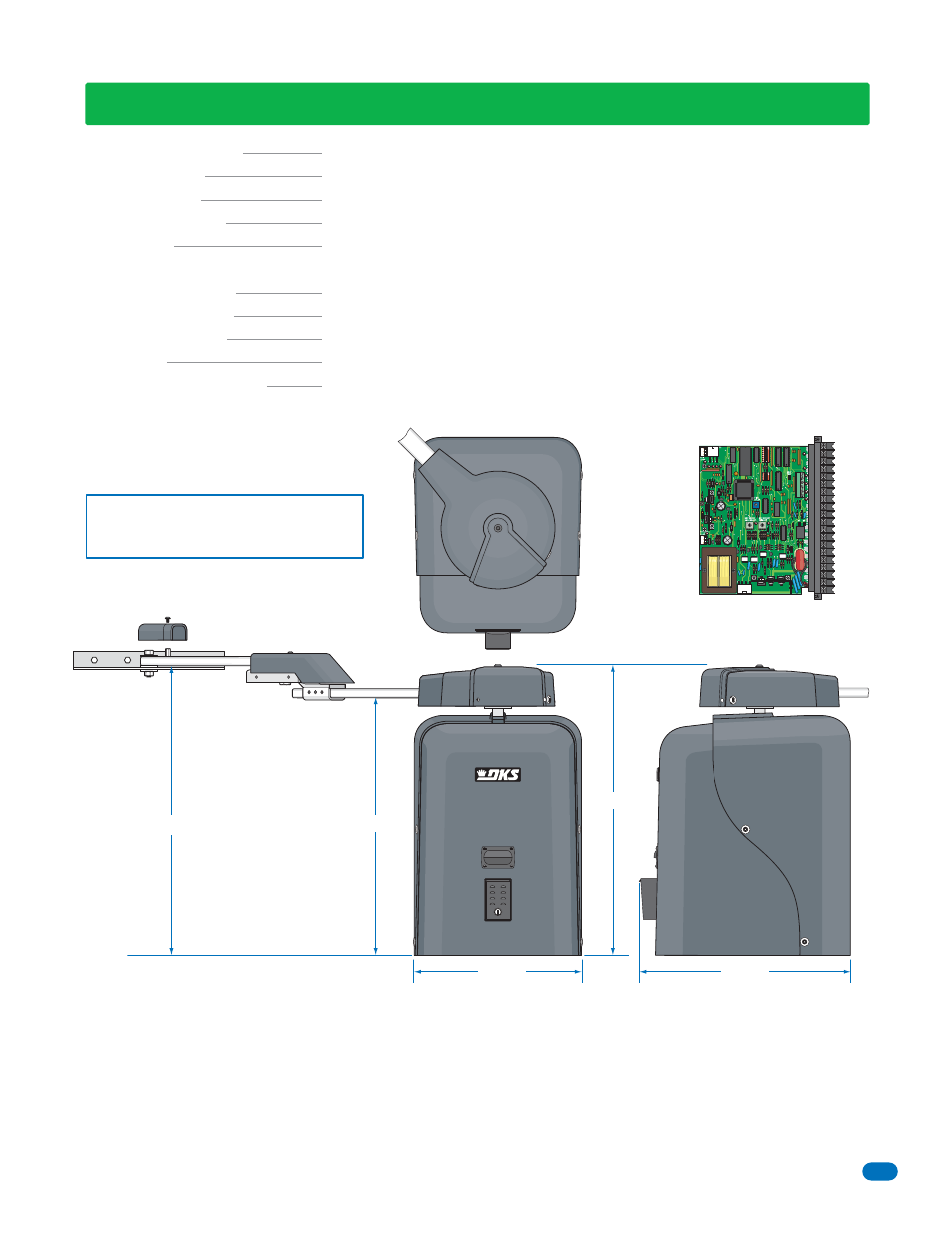

SPECIFICATIONS
Use this manual with the following models only:
6500-080, 6500-081, 6500-082*, 6500-083*, 6500-084, 6500-085, 6500-086*, 6500-087*, 6500-088, 6500-089*, 6500-090,
6500-091*, 6500-092, 6500-093*, 6500-094, 6500-095*, 6500-096, 6500-097*, 6500-098, 6500-099*.
*Optional Convenience Open System
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any
persons of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is
copyrighted, all rights reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written
consent from DoorKing, Inc.
28 3 / 8 ”
18 3 /
8 ” 23 1 /
4 ”
31 5 / 8 ”
This manual is for 6500 operators
manufactured after July 12, 2008.
31”
4405-010
Circuit Board
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
4405
