Controlled Products Systems Group 6500-080 - Manual (Page 14)

6500-065-M-10-08 12
22”
28”
22”
28”

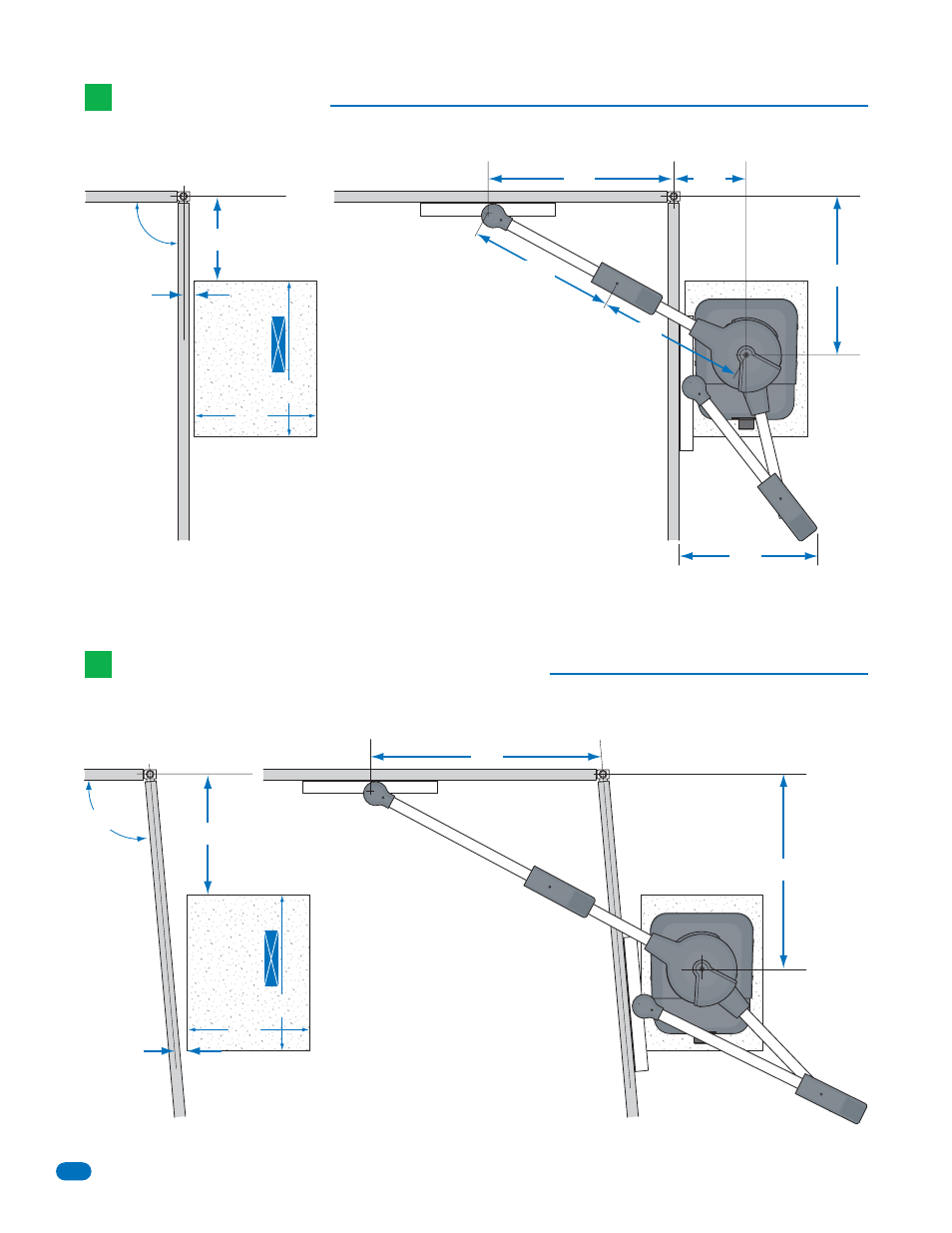

Concrete Pad Location Operator Installation
42”
23”
2”
90° Plus Installation requires the Standard Compact Installation’s concrete pad to be moved 2” away from the gate’s
open position. This distance of the gate’s arm will vary depending on how far the gate will open.
Compact Installation
Concrete Pad Location
Operator Installation
Recommended for gates NO LARGER THAN 10 FEET opening 90°.
34”
23”
13”
29.5”
16.5”
2”
26.5”
Concrete Pad
Gates Opening Wider than 90° Installation
26.5”
Concrete Pad is 2”
away from open gate.
Gate in
desired
open
position.
35”
Varies
90°
Gate’s opening time will vary.
3
4
