This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Part 15 COMPLIANCE
Electrical and Mechanical Specifications
*
See Rating Curve for Temperature and Power ratings
Physical Aluminum Enclosure 3.5" x 2.75" x .75" each unit Aluminum Enclosure 3.5" x 2.75" x .75" each unit
Temp
Storage(-55˚C to + 150˚C)
Operating(-40˚C to +80˚C) Storage(-55˚C to + 150˚C)
Operating(-40˚C to +80˚C)
Humidity 95% (non-condensing) 95% (non-condensing)
Power
Input
Unreg Input 8 to 16 VDC
*
@ 200mA Max
Power
Output +5VDC @100mA
Data I/O Interface
Reader 0- 30VDC
LED - 0 - 30VDC
Analog 0 - 5 VDC
3.3”
DataBender CVX-1300
2.8”
1.4”
3.65”
ø 0.15”

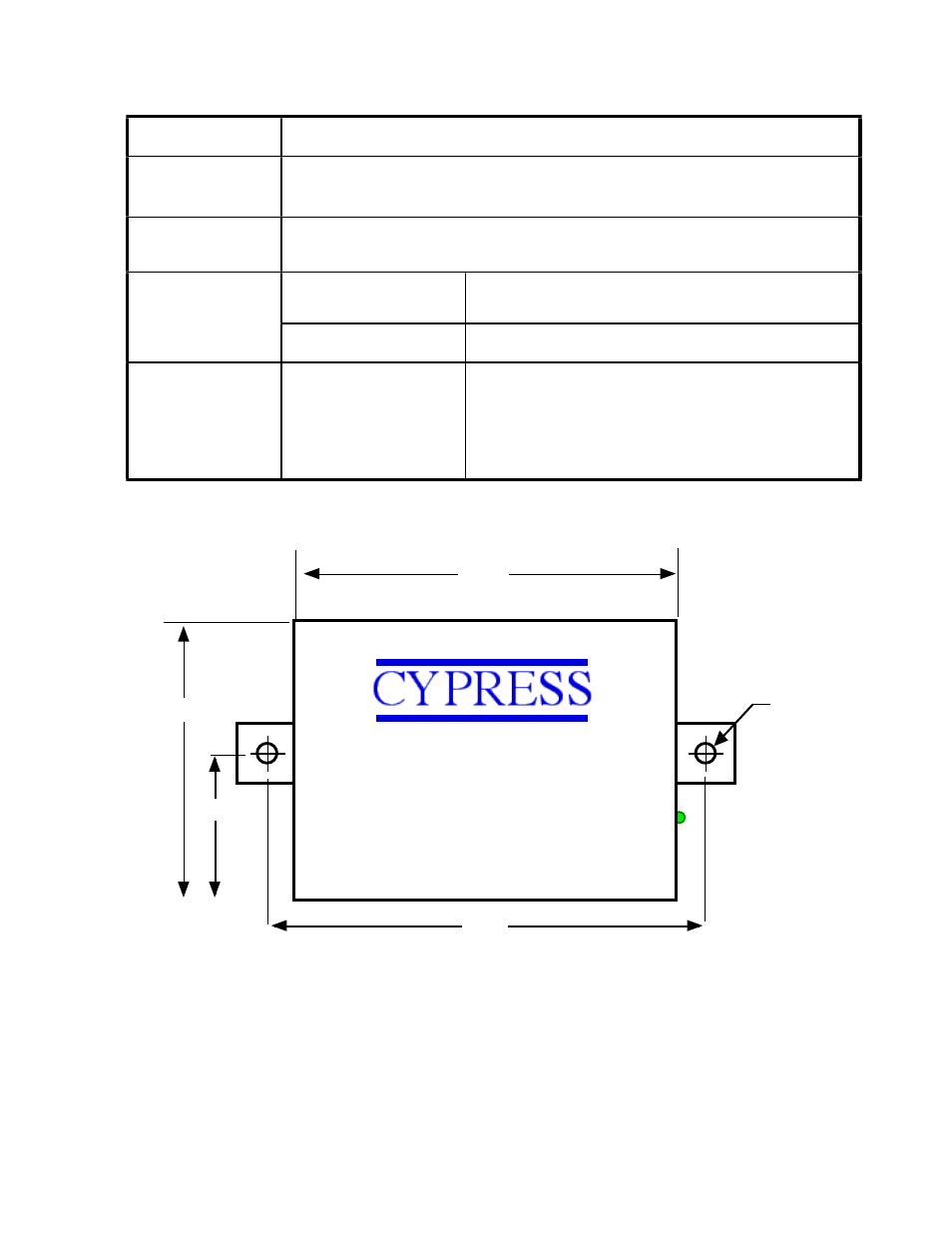

External Dimensions and Mounting Holes
Unit Height = 0.75”
