CTI Products Quad Router Panel - Manual (Page 2)

Routers
ROUTER 2005-08
MCN, MCNRCD, CIB, AIB, IOB, IIB, HIB, and EXB are trademarks of CTI Products, Inc..
Other trademarks referenced are properties of their respective owners. Specifications subject to change or improvement without notice.
CA-80244-105
78Kbps
1.25Mbps
ROUTER
HIB
(DIAL-UP)
MODULE
78Kbps CHANNEL
1.25Mbps
ROUTER
16 32 17 18
COMPARATOR I/O MODULES COMPARATOR I/O MODULES
78Kbps CHANNEL
2 1
1.25Mbps CHANNEL
T
T T
78Kbps CHANNEL
78Kbps
To PCs
T
T T
1.25Mbps
ROUTER
78Kbps

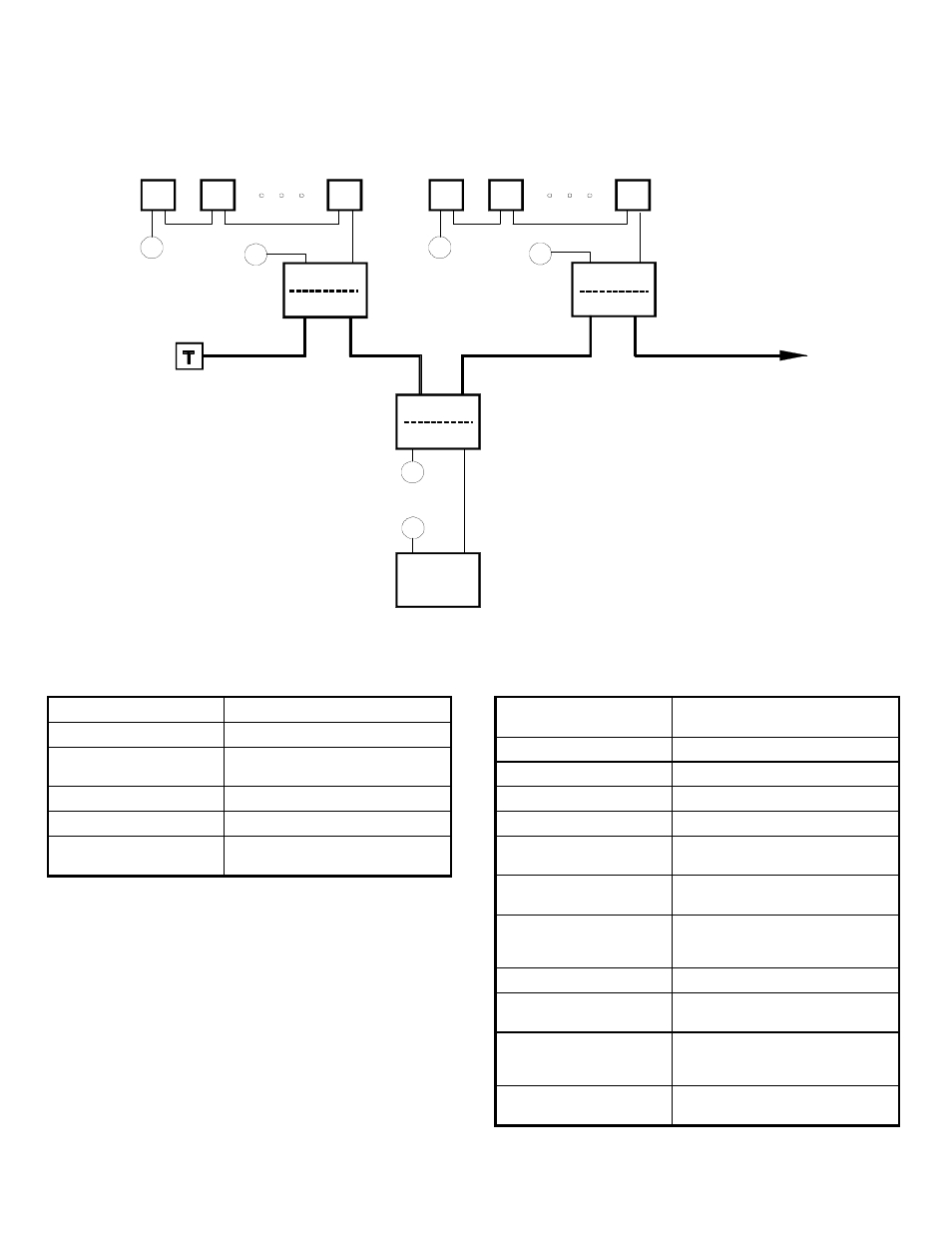

MCN Remote Comparator Display System with Routers
Part Numbers
90-11401 MCN Router 78K / 1250K
90-11518 MCN Router 1250K / 1250K
S1-60819 MCN Quad Router Mount and
Manifold
81-10398 Power Supply MCN 120VAC US/CAN
81-10728 Power Supply MCN 230VAC Europe
S2-60825 Custom System Configuration & Test
(Required for each Router Module)
General Specifications
Size 7.0" x 19.0"
(178 x 483 mm)
Power Requiered per Router 16-30VAC or DC, 2VA
Temperature -40 -+85 o C
Humidity 10- 95% non-condensing
MCN Network Data Rates 78Kbps, 1250Kbps
Network Connector
(Quad Rack) RJ-45, Standard MCN type
Max. network segment 4000 ft. without repeaters (78K)
1500 ft. (1250K)
Max. standard 78Kb
modules per segment 16 per network segment
(Larger, multi-segment systems can
be custom-configured.)
Network Cabling CAT5 (4 Pair UTP)
Safety Approvals
(Router) UL 916,
cUL c22.2 Number 205,
Emissions
Compliance (EMI) FCC part 15, Class A
IC (DOC), Class A (Canada)
EN55022, Class A
Susceptibility Compliance
(EMC) IEC 801-2, 3, 4
EN50082-1
