EN
EN • 21
SITUATION
230/110 V charger for the Service and
Starter battery.
PROBLEM
The 230/110 V charger should charge
both the Service and the Starter bat-
tery, and be synchronized with all other
energy sources.
SOLUTION

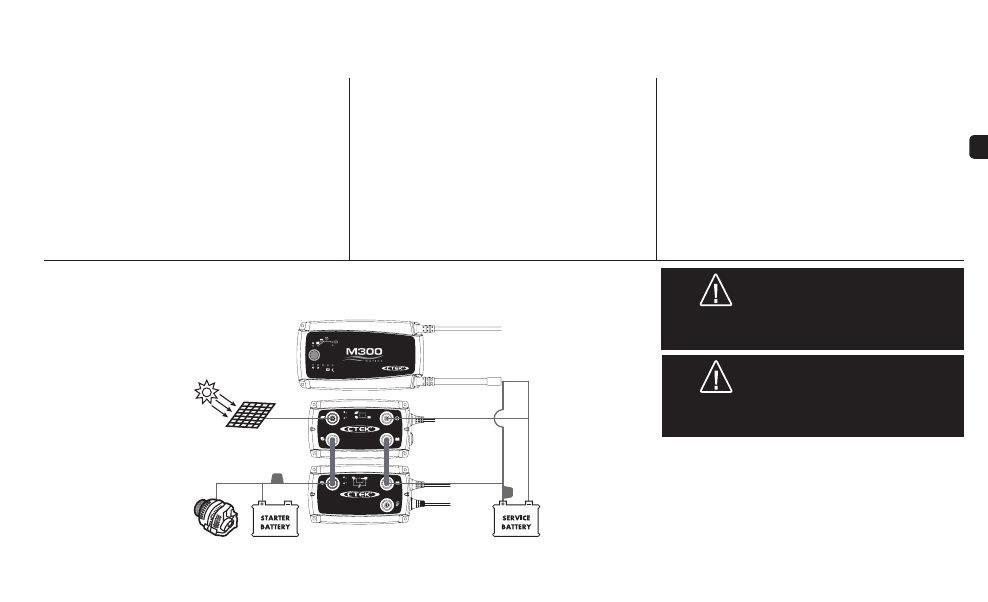

The single output 230/110V charger is
connected directly to the Service battery.
The Starter battery is pulse charged
through SMARTPASS.
The solar panel will also maintaince
charge the Starter battery through
SMARTPASS.
TIP 6
See Tip 1, Tip 2, Tip 4 and Tip 5
The battery cables of the 230/110 V
charger are connected directly to the
Service battery.
INSTALLATION ShEET 6
CONNECTING AC/DC ChARGERS
WARNING!
•Max 23 V input
•Do not connect two solar panels in series
WARNING!
D250S DUAL and SMARTPASS is not
reverse polarity protected
12V
RECOND
RECOND
NIGHT NORMAL
MODE
D250S DUAL
12V
+OUT +IN
+IN
+IN +OUT
+OUT SMARTPASS 12V
