American Dryer Corp. AD-758DV User Manual
Page 13
113372-7
Telephone: 01422 822282
9

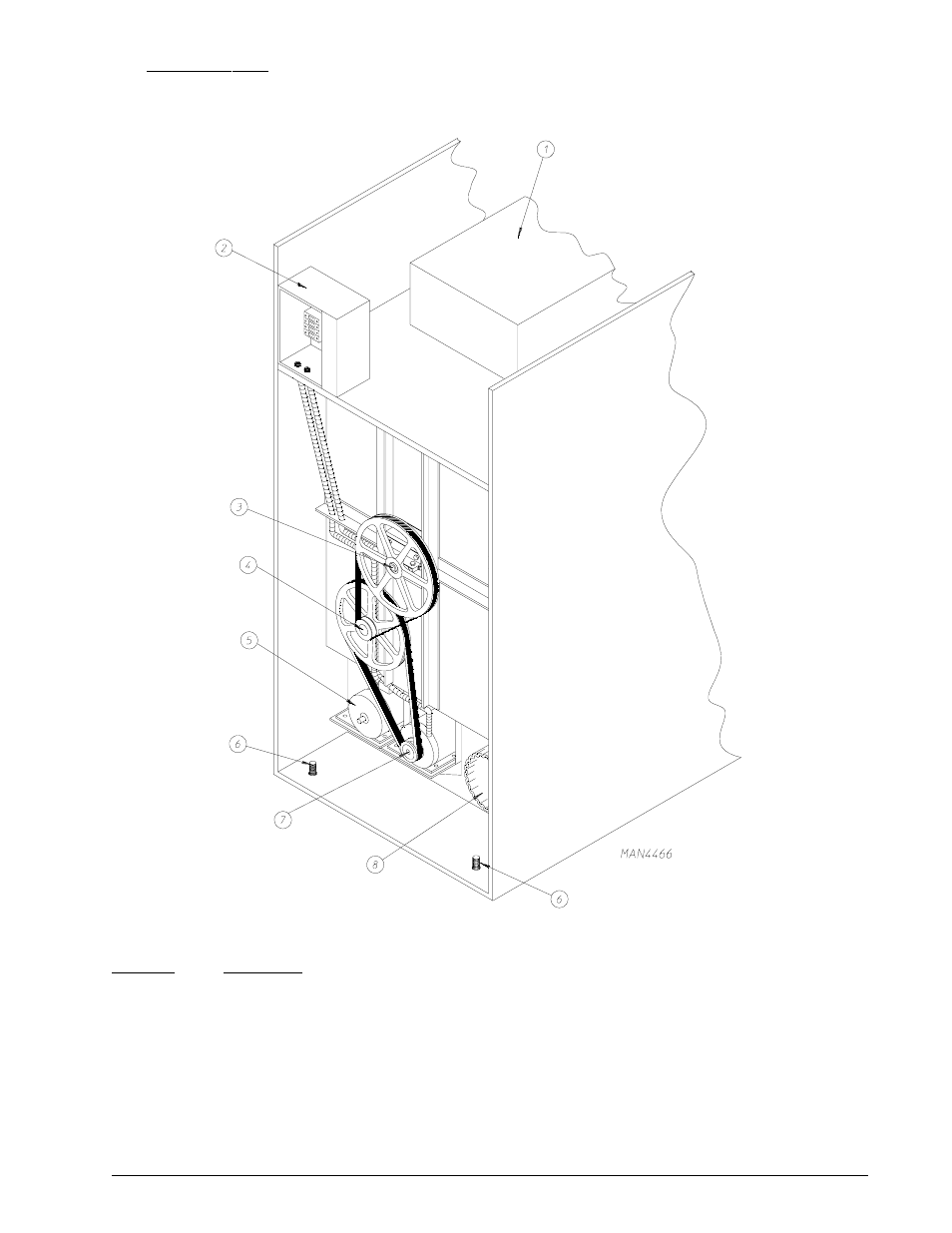

2. Dryer Rear View
Illus. No.
Description
1
Heating Unit
2
Electric Service Relay Box
3
Basket (tumbler) Bearing Mount Assembly
4
Idler Bearing Mount Assembly
5
Blower Motor Assembly (for reversing models only)
6
Leveling Legs (rear)
7
Basket (tumbler) (drive) Motor Assembly
8
Dryer Exhaust
